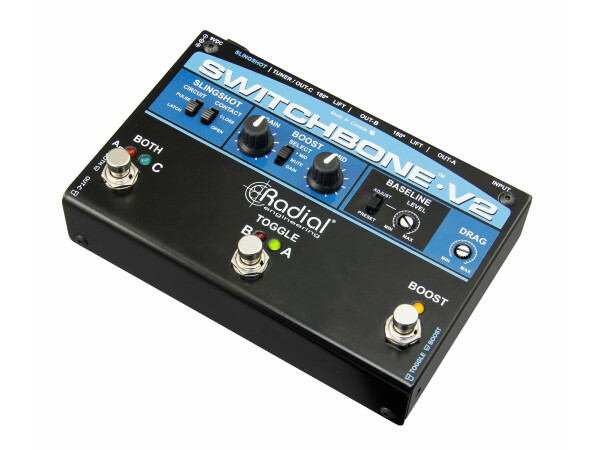

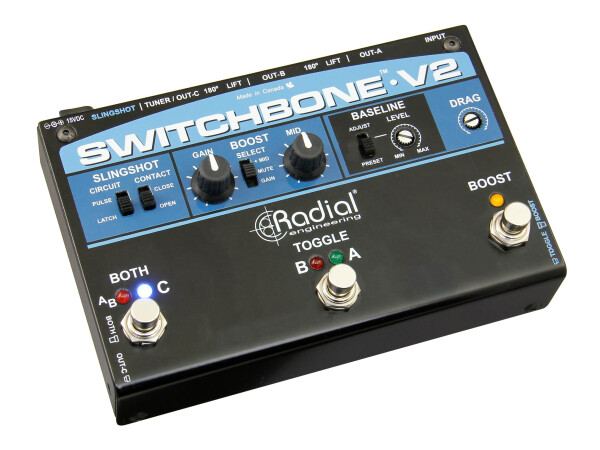

Radial Engineering Switchbone V2 - Amp Selector & Boost Pedal
SKU: R800-7081-00
UPC: 676101043521
Be the first to write a review!
The Switchbone V2™ gives you the ultimate control over your two or three-amp setup, with the ability to switch between amplifiers silently, eliminate buzz and hum, and activate a high-powered clean boost for soloing.

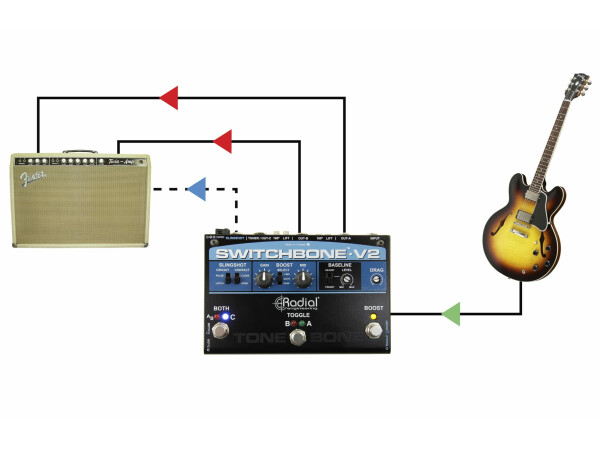

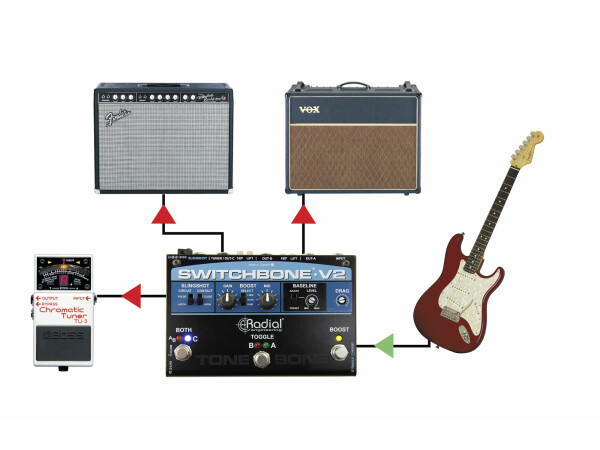

The Switchbone V2 may well be the ultimate guitar amp switcher. This device lets you switch and combine up to three guitar amplifiers without introducing distortion, switching noise, or hum into the signal path. Most importantly, it will retain the natural tone and feel of your instrument so that your natural playing style shines through. The Switchbone V2 may be used as a standard ABY switcher with both A and B outputs used separately or together, or the tuner output can be repurposed to feed a third amplifier. A built-in power booster at the output delivers up to +18db of ultra-clean boost with the option to add mid-boost for extra sustain when playing lead.
Features:
• 100% discrete, Class-A circuit
• Noiseless opto-coupler amp switching
• Transformer isolated to eliminate ground loops
• Drag™ control corrects load on pickups
• Class-A power booster with mid boost
Applications:

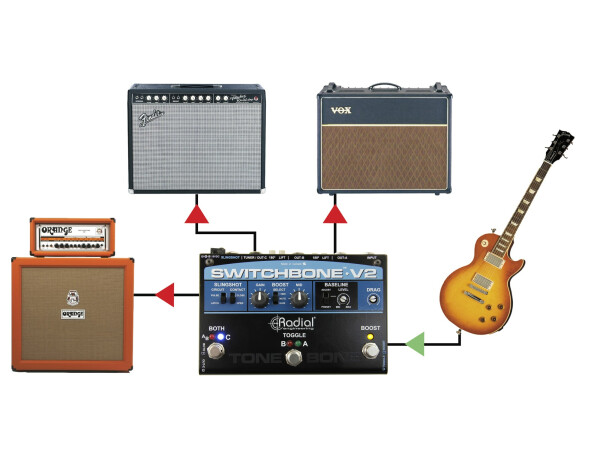

• Drive as many as three amps
• Switches and splits guitar signal
• Power booster for soloing
• Creates new sounds by combining amps
Cool Stuff:
• Retains the natural sound of the guitar
• Does not introduce noise, hum or buzz
• Super-intuitive LED indicators
• Tuner output is separate from audio path
Technical Specification
- Audio circuit type Discrete Class-A
- Gain Unity to +12dB (Baseline gain)
- Input Impedance Variable with drag control
- Output Impedance 10k Ohm
- Noise -111dB
- Features 180° polarity reverse, Ground lift, Boost

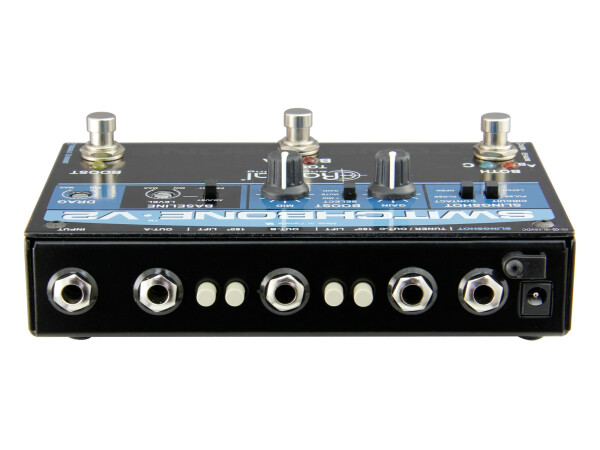

- Input Connectors 1/4" input
- Output Connectors 4 1/4" outputs
- Construction 14-gauge steel chassis & outer shell
- Size (L x W x D) 6.62" x 4.5" x 2" (168 x 114 x 51mm)
- Weight 2.35lb (1.07kg)
- Shipping size (L x W x D) 10.75" x 4.75" x 2.5" (273 x 120 x 64mm)
- Shipping weight 3.35lbs (1.5kg)
- Power 15VDC 400mA, center pole positive
- Conditions For use in dry locations only between 5°C and 40°C
- Warranty Radial 3-year, transferable
