Radial Engineering StageBug SB-5W - Wall-mount Stereo Direct Box
SKU: R800-0155-00
UPC: 676101041251
Be the first to write a review!
Out of Stock - Available to Order

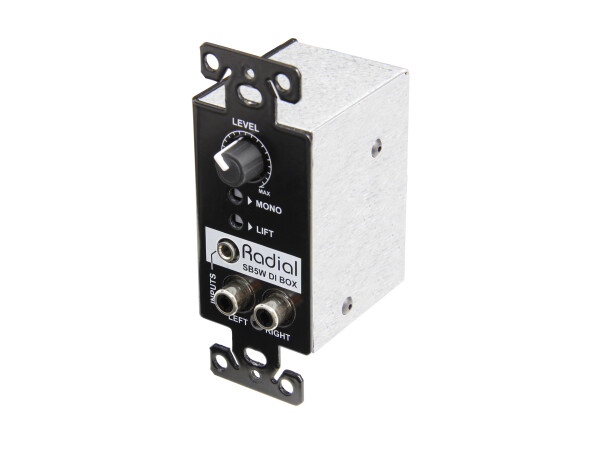

The StageBug SB5W is a passive stereo direct box made to fit in a standard North American single-gang electrical wall plate, providing AV integrators with an effective means of connecting an unbalanced audio source such as a laptop, smartphone, or tablet to a balanced audio system.

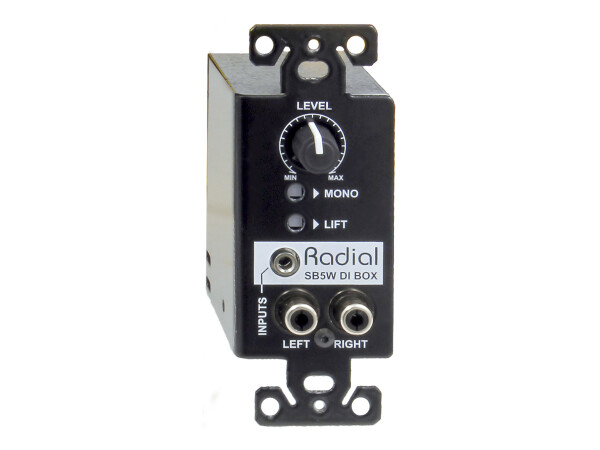

The StageBug SB5W provides a permanently mounted interface to connect consumer audio devices with installed pro audio systems. Front panel 3.5mm TRS and RCA connectors are provided for any stereo source and a fully variable level control makes volume adjustments easy. Inside, the SB5W employs dual transformers that convert the inputs to a low impedance balanced signal, and eliminate hum and buzz caused by ground loops. Set & forget ground lift and mono switches are also included to further reduce noise and to sum the left and right channels together if needed. The outputs of the SB5W feature screw terminals with tie down points for tie-wraps to make installation fast, efficient and permanent.
Features:
• RCA and 3.5mm stereo inputs
• Convenient front panel volume control
• Transformer isolated eliminates noise
• 100% passive design, no power needed
Applications:

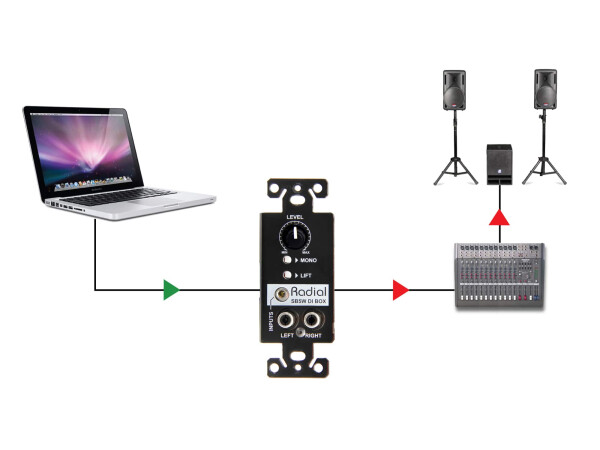

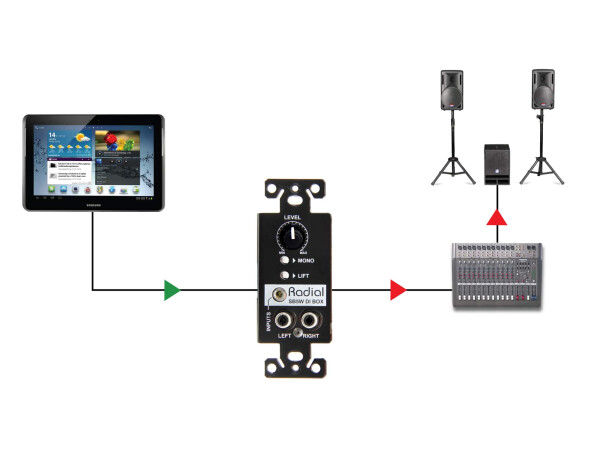

• Easily connect mobile devices to PA system

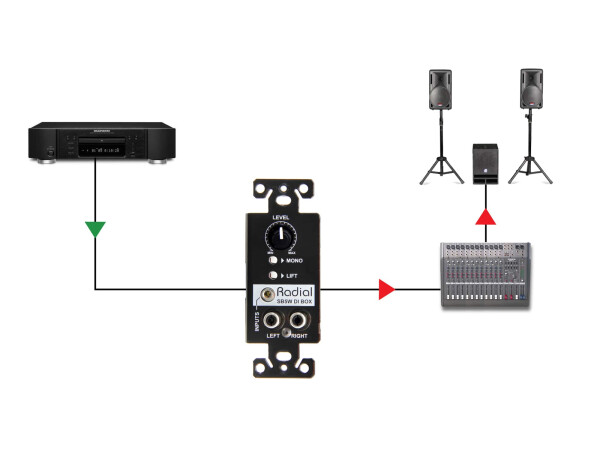

• Works with CD players, DJ Mixers, DVD/BR players
• Stereo or mono operation modes
• Meeting room, convention center, classroom
Cool stuff:
• Super easy to use, works with any audio source
• Compact design fits single gang box
• Stereo to mono summing saves mixer channels

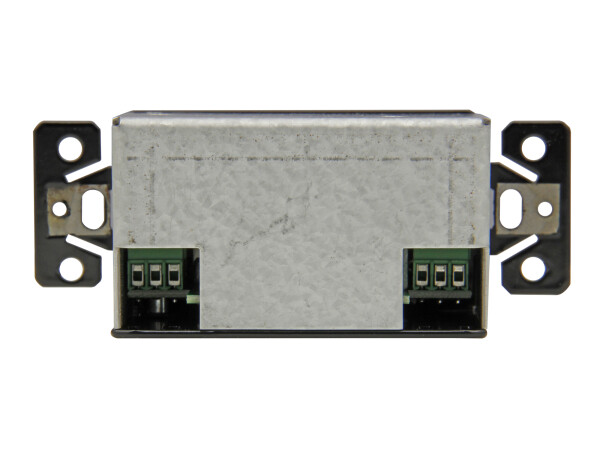

• Contractor friendly screw terminal outputs
Technical Specification
- Audio circuit type Passive transformer isolated
- Frequency response 20Hz - 20kHz
- Dynamic range >120dB
- Gain -3dB
- Clip Level +17dBu
- Total harmonic distortion 0.00%
- Phase Deviation 0° @ 100Hz; -3° @ 50Hz
- Input Impedance Approx 10K with 100K Load
- Output Impedance 5k Ohms
- Equivalent Input Noise -98dBu
- Noise -101dBu
- Maximum Input +20dBu
- Mono Sum, Ground lift
- Input Connectors RCA, 3.5mm TRS inputs
- Output Connectors Screw down terminals (- G +)
- Construction 14 gauge steel chassis & outer shell
- Size (L x W x D) 2.42" x 1,62" x 4.24" (61.4mm x 41.1mm x 107.7mm)
- Weight 0.5 lbs (227 grams)
- Shipping size (L x W x D) 6.25" x 4.25" x 3" (159mm x 108mm x 76mm)
- Shipping weight 0.65 lbs (295 grams)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
