Radial Engineering StageBug SB-48 - Phantom Power Supply

SKU: R800-0148-00
UPC: 676101041145

Be the first to write a review!

Available - Item in Stock

Write a review

£198.22

£165.18 (Ex VAT)

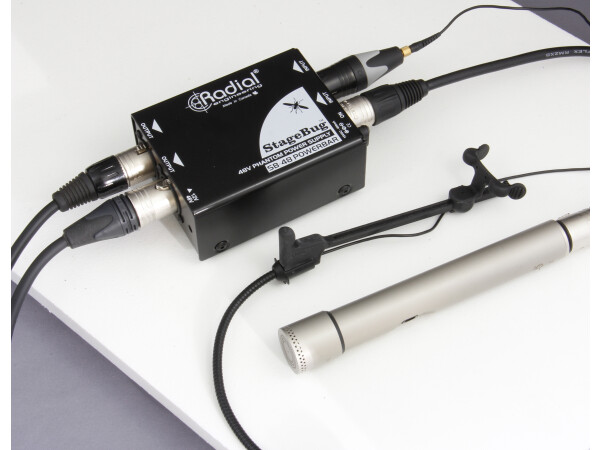

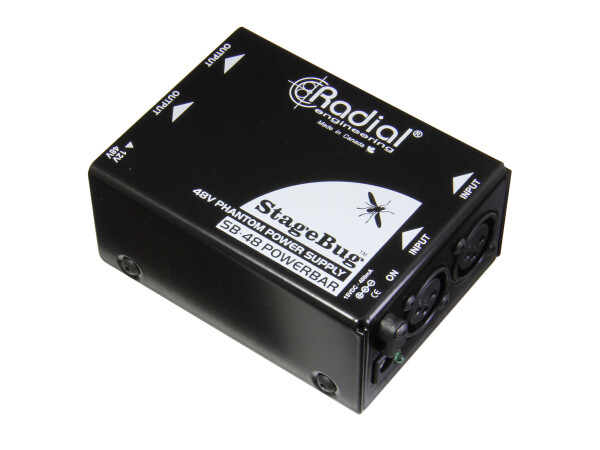

The SB-48 is a phantom power supply that can provide stable 48V power to two condenser microphones or active DI boxes at once, with balanced outputs to feed the inputs of a console or a recording interface.

The SB-48 utilizes a non-radiating charge pump circuit to create a stable, ripple-free 48 volt supply for active direct boxes and condenser microphones. It is powered by a single 15VDC 400 mA supply (included), with XLR inputs and outputs for each channel. Simply connect your microphones or direct boxes to the XLR inputs, and feed the outputs to a set of preamps or a PA system. This allows you to use your favorite powered microphone or active DI on stage, even when the venue doesn’t have a reliable phantom power source.

• Provide phantom power for condenser mic’s
• 48V or 12V power for specialty microphones

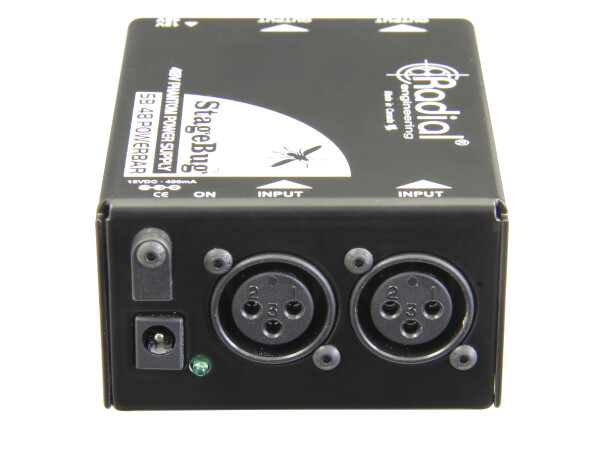

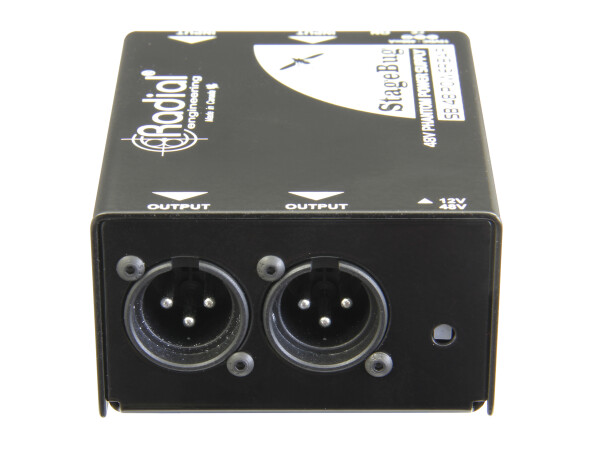

• Dual XLR inputs and outputs
• Powered via external 15V power supply

Sections

£198.22

Technical Specification

  • Circuit Type Non-radiating phantom power supply
  • Number of Channels 2
  • XLR Connectors AES standard pin-1 Ground, pin-2 (+), pin-3 (-)
  • Phantom Output Switchable +48 / +12 volts DC
  • Power Supply 15VDC / 400mA external supply included
