Radial Engineering StageBug SB-4 - Compact Active DI with Piezo Input
SKU: R800-0140-00
UPC: 676101040667
Be the first to write a review!
Available - Item in Stock

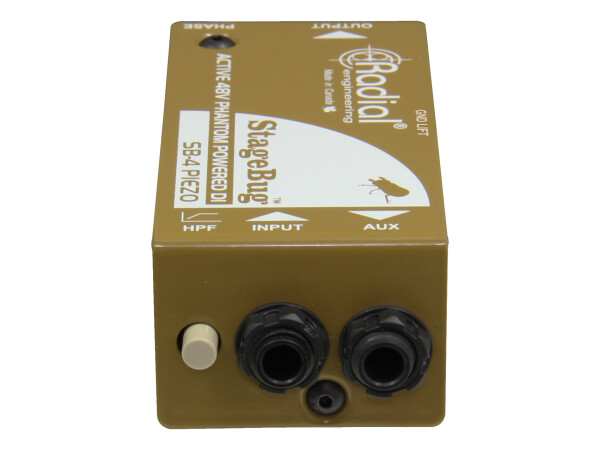

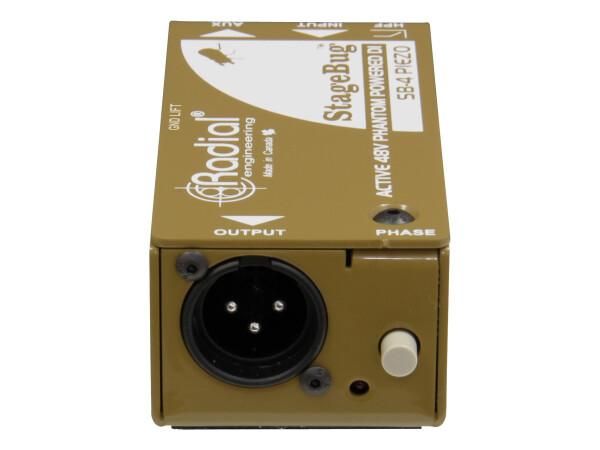

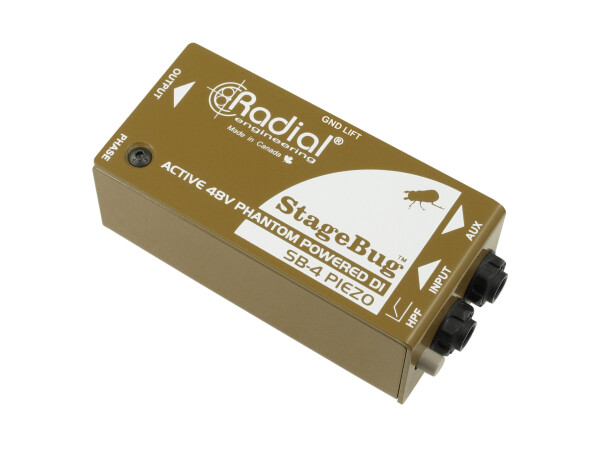

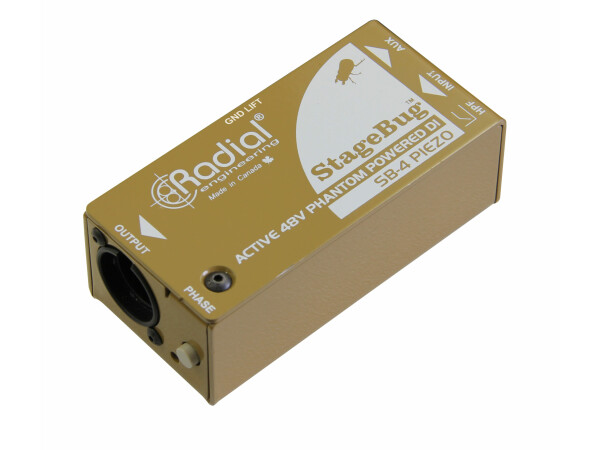

The Radial StageBug SB-4 is a compact active direct box that has been optimized for use with piezo transducers and is small enough to fit inside an instrument case.

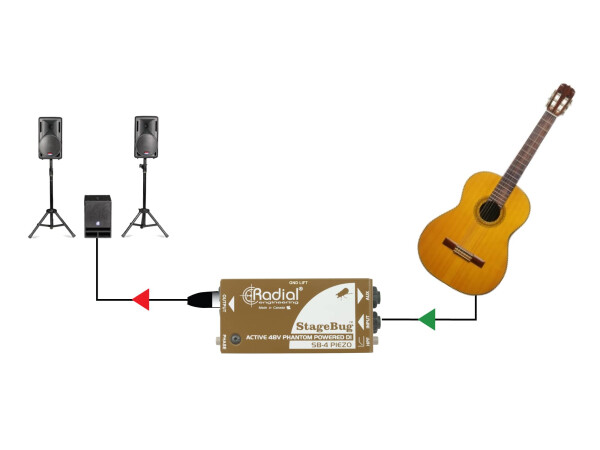

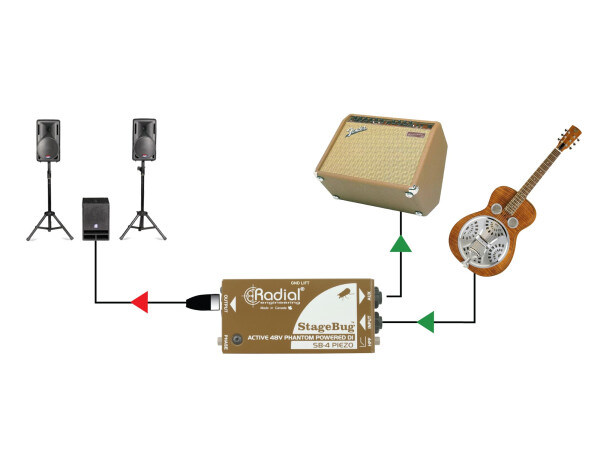

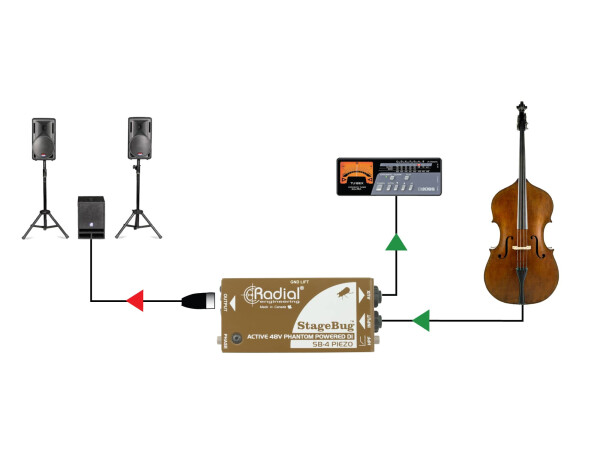

The StageBug SB-4 allows you to retain the natural tone of your piezo-equipped instrument when amplified through a PA system. Unlike typical direct boxes, the SB-4 features a very high 5 meg ohm impedance that smooths out troublesome peaks that give piezo transducers a bad name. This higher impedance also broadens the frequency response for a more natural and pleasing sound. The active circuit balances the audio signal to enable long runs up to 100 meters without loss, while delivering spectacular linearity and low distortion throughout the audio range. Output connections include an aux out for a stage amplifier plus a standard XLR output to feed the PA.
• Active DI optimized for piezo transducers
• Smooths out peaks & eliminates squawk
• Powered by 48V phantom, no batteries required
• Compact design fits in your instrument case
Technical Specification
- Audio circuit type Piezo optimized active buffer
- Frequency response 20Hz to 20kHz
- Dynamic range 100dB
- Gain +2dB
- Total harmonic distortion <0.006%
- Intermodulation Distortion <0.01%
- Phase Deviation 10° @ 50Hz
- Input Impedance 5Meg Ohms
- Output Impedance 330 Ohms
- Equivalent Input Noise -101dBu
- Noise -97dBu
- Maximum Input +4dBu
- 180° polarity reverse, Ground lift, HPF
- Input Connectors 1/4"
- Output Connectors XLR
- Construction 16 gauge steel chassis & outer shell
- Size (L x W x D) 4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm)
- Weight 0.55 lbs (250 grams)
- Shipping size (L x W x D) 8" x 5" x 3" (203mm x 127mm x 76mm)
- Shipping weight 0.8 lbs (365 grams)
- Power 48V phantom power, 5mA
- Conditions For use in dry locations only between 5°C and 40°C
