RadialStageBug SB-5 - Laptop Direct Box
SKU: R800-0150-00
UPC: 676101040674
Be the first to write a review!
Out of Stock - Available to Order

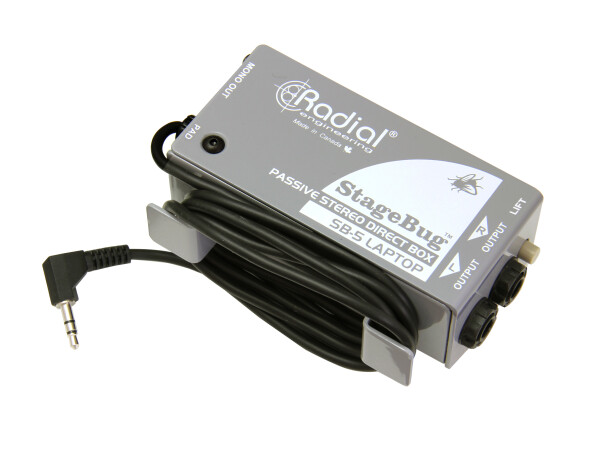

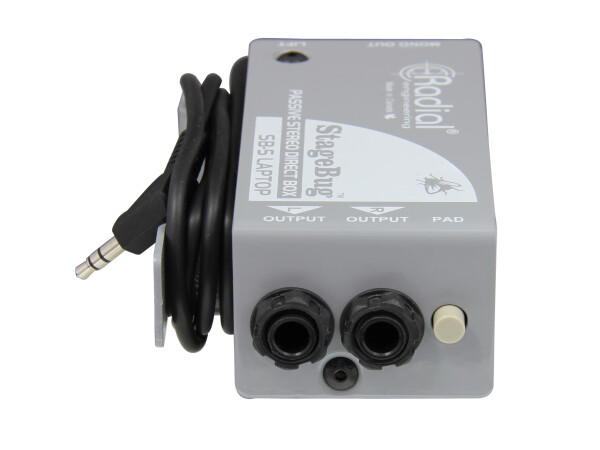

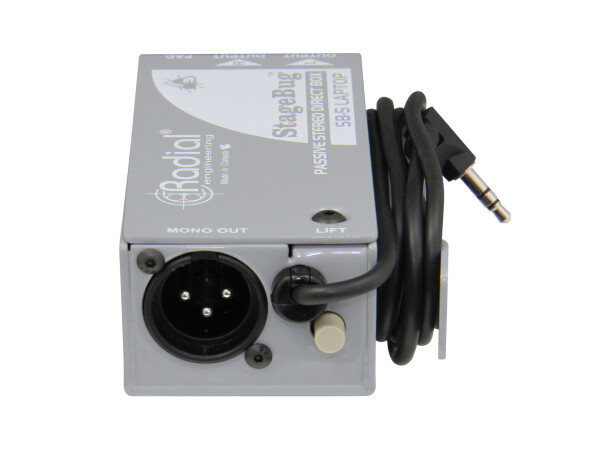

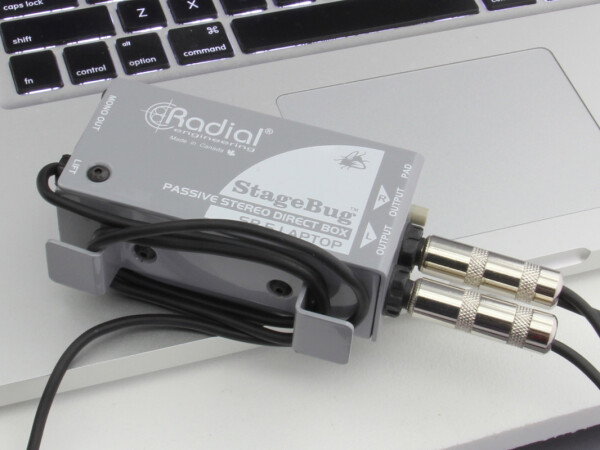

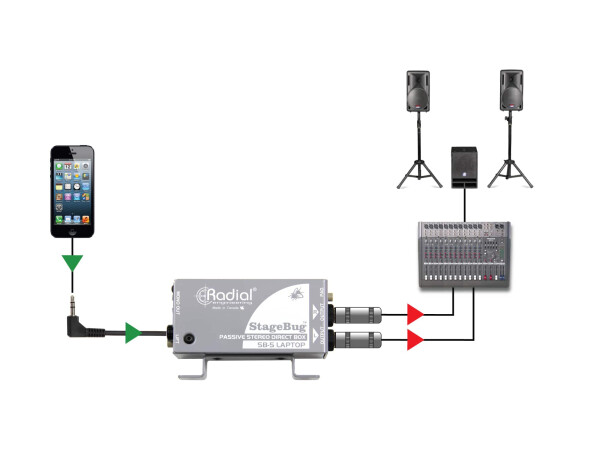

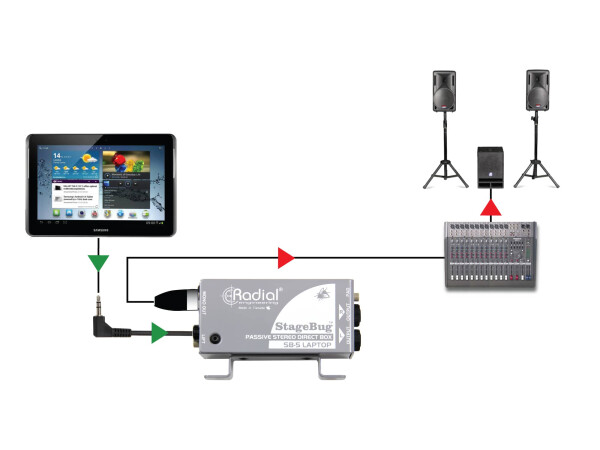

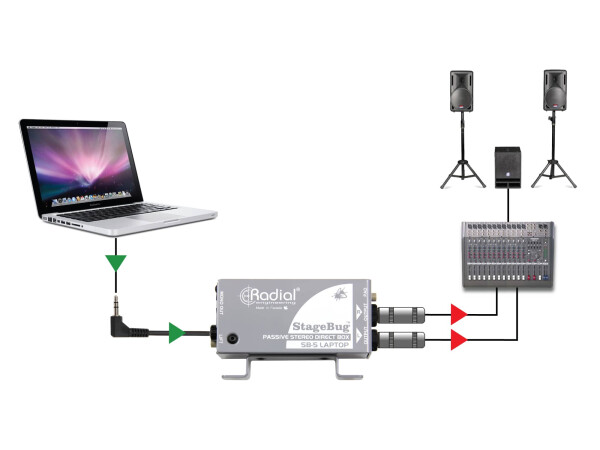

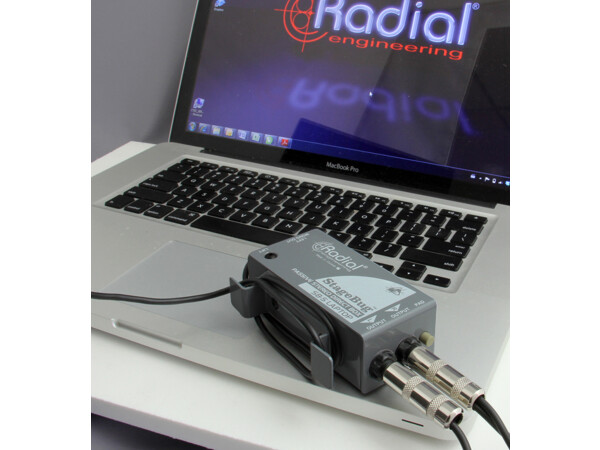

The StageBug SB-5 provides an easy to use professional interface for connecting any mobile playback device to a mixer or PA system, with a built-in cable and 3.5mm stereo plug to connect directly to your laptop, smartphone, or tablet. Inside, a pair of custom wound transformers isolate the signals to prevent hum and buzz, and balance the audio to feed long cable runs without noise. Left and right 1/4" TRS outputs are provided for stereo operation, or a mono XLR output can be used to save channels on the PA system. The SB-5 works without any power required, and features additional ground lift and pad switches to eliminate ground loop noise and prevent distortion from high output audio sources.
Technical Specification
- Audio circuit typePassive, transformer based
- Number of channelsTwo channels
- Frequency response20Hz ~ 20KHz (± 1dB)
- Dynamic range100dB
- Total harmonic distortion0.01% @ 1kHz
- Phase Deviation2° @ 100Hz; 5° @ 50Hz
- Input Impedance40k Ohms, unbalanced
- Output Impedance2.8k Ohms, balanced
- Maximum Input+20dB
- Input pad, Mono Sum, Ground lift
- Input Connectors3.5mm
- Output Connectors1/4" TRS, XLR
- Construction14 gauge steel chassis & outer shell
- Size (L x W x D)4.5" x 1,85" x 1.35" (114mm x 47mm x 34mm)
- Weight0.55 lbs (250 grams)
- Shipping size (L x W x D)8" x 5" x 3" (203mm x 127mm x 76mm)
- Shipping weight0.8 lbs (365 grams)
- PowerPassive, no power required
- ConditionsFor use in dry locations only between 5°C and 40°C
