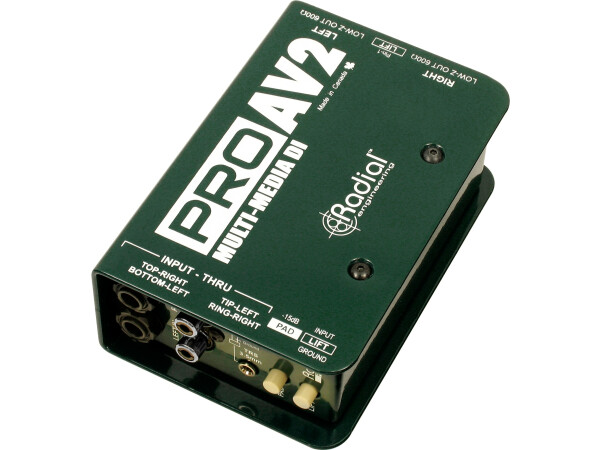

Radial Engineering ProAV2 - Stereo Passive Multimedia Direct Box
SKU: R800-1115-00
UPC: 676101036820
Be the first to write a review!
Available - Item in Stock
The ProAV2 is a stereo passive direct box designed for audio-video integrators and technicians, with an array of input connector options to easily interface with a wide range of audio equipment.
The ProAV2 is an indispensable device for live sound engineers and audio-video technicians alike, with the ability to seamlessly interface nearly any device with a pro audio system. A 3.5mm stereo input jack and dual 1/4" and RCA connectors ensure that you won't ever be hunting around for adaptor cables, while ultra-quiet performance with transformer isolation helps eliminate hum and buzz from ground loops. The ProAV2 maintains stereo separation and exhibits linear frequency response from 20Hz to 20kHz, with balanced mic-level XLR outputs that allow you to send signals through a multichannel audio snake on stage or into two channels of a mixing console.
Features:
• Great-sounding, fl exible passive DI
• High performance custom-wound transformer
• XLR, 1/4”, RCA and 3.5mm inputs
• Built-in stereo to mono merge function
• -15dB PAD for wide range of input levels
• Transformer isolation eliminates ground loops
Applications:
• Converts hi-Z consumer to low-Z mic-level

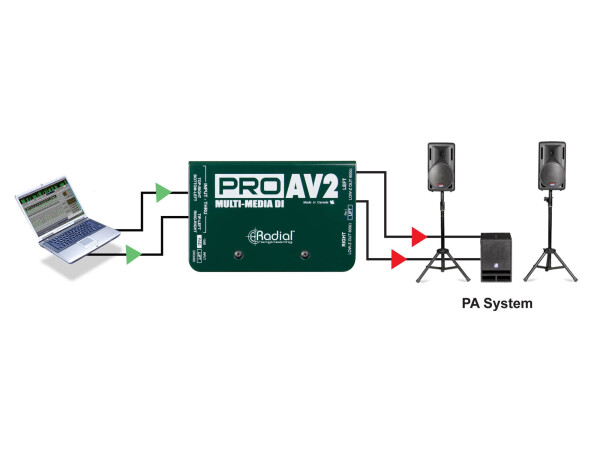

• Connect a stereo source to a mono channel
• Unbalanced audio from CDs, laptop, VCRs
• Balanced +4dB audio sources (ProAV1 only)
Cool stuff:
• Like a Swiss Army knife for A/V systems
• Completely passive, no power needed
• Ultra-tough 14 gauge steel enclosure
Technical Specification
- Audio circuit type Passive, transformer based
- Transformer Eclipse ET-DB2, 12:1 ratio
- Number of channels Dual channel (stereo)
- Frequency response 20Hz ~ 18.5KHz (± 0.2dB)
- Dynamic range 128dB
- Total harmonic distortion 0.01% from 20Hz~20kHz @-10dB
- Phase Deviation 1° @ 100Hz; 8° @ 20Hz
- Input Impedance 140k Ohms, unbalanced
- Output Impedance 150 Ohms, balanced
- Maximum Input +18dB @ 20Hz
- Ground lift

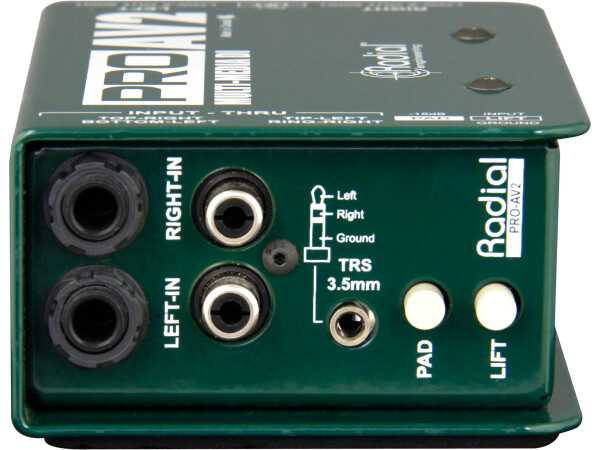

- Input Connectors 1/4", RCA, 3.5mm TRS

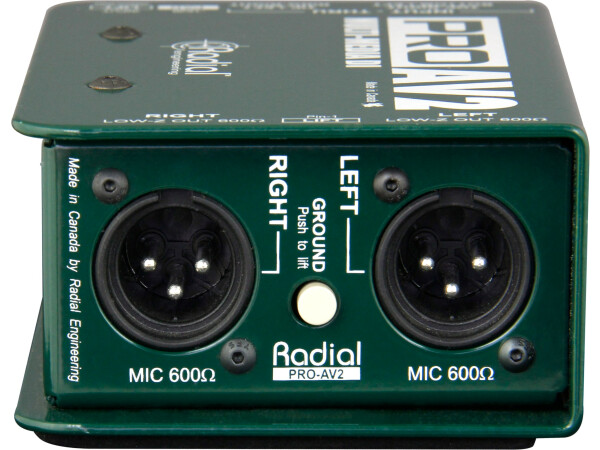

- Output Connectors XLR
- Construction 14-gauge steel chassis & shell
- Size (L x W x D) 3.25” x 5” x 1.875”
- Weight 0.82kg / (1.8lbs)
- Shipping size (L x W x D) 102 x 76 x 165mm (4.00" x 3.00" x 6.50")
- Shipping weight 1.2 kg (2.60 lbs)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
Downloads
