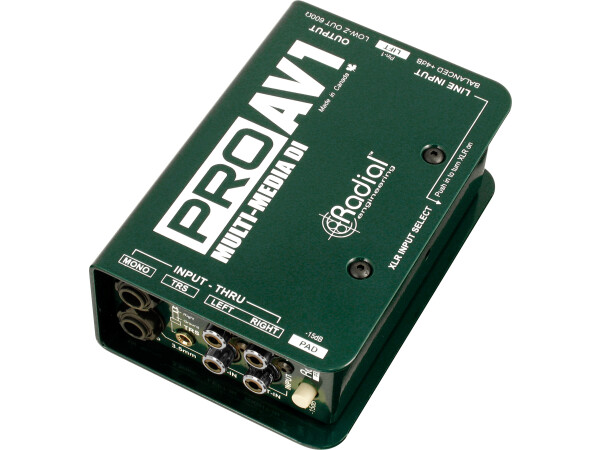

Radial Engineering ProAV1 - Passive Mono Multimedia Direct Box
SKU: R800-1112-00
UPC: 676101036530
Be the first to write a review!
Available - Item in Stock

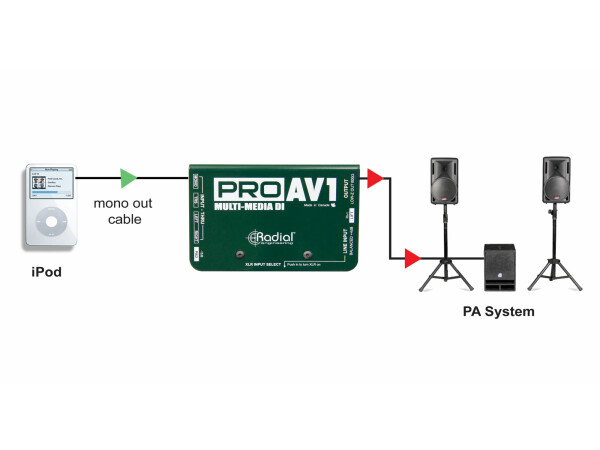

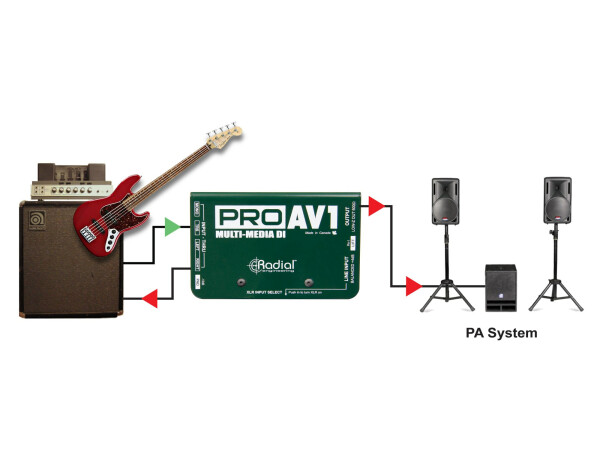

The Radial ProAV1 is a professional passive multimedia direct box (DI) designed for integrating consumer audio devices and instruments into professional PA and recording systems. It provides a simple, reliable solution for connecting laptops, tablets, smartphones, keyboards, CD players, and instruments while ensuring clean, noise-free signal transfer.
Built as a flexible “all-in-one” interface for AV and live sound applications, the ProAV1 features multiple input options including 1/4", RCA, 3.5mm stereo, and line-level XLR. These inputs allow a wide range of devices to be connected without adapters, making it ideal for installations, live events, education environments, and portable AV setups.
The unit automatically sums stereo signals to mono at the output, helping reduce channel usage and simplify system routing in live sound environments. A high-quality transformer-based passive design ensures full electrical isolation, eliminating ground loop noise while maintaining a smooth, natural frequency response.
Designed to handle both consumer and professional signal levels, the ProAV1 includes a -15dB pad for high-output devices and delivers a balanced mic-level XLR output suitable for mixing consoles and audio interfaces. Its rugged steel construction ensures long-term durability in demanding live and installed environments.
Key features
• Passive multimedia DI for instruments and consumer audio devices
• Multiple inputs: 1/4", RCA, 3.5mm stereo, and line-level XLR
• Stereo-to-mono summing simplifies live sound channel management
• Transformer isolation eliminates hum, buzz, and ground loops
• -15dB pad for handling high-output audio sources
• Balanced XLR mic-level output for PA and recording systems
• Ideal for AV installations, live events, education, and touring rigs
• Rugged steel chassis built for professional use
Technical Specification
- Audio circuit type Passive, transformer based
- Transformer Eclipse ET-DB2, 12:1 ratio
- Number of channels Single channel (mono)
- Frequency response 20Hz ~ 18.5KHz (± 0.2dB)
- Dynamic range 128dB
- Total harmonic distortion 0.01% from 20Hz~20kHz @-10dB
- Phase Deviation 1° @ 100Hz; 8° @ 20Hz
- Input Impedance 140k Ohms, unbalanced
- Output Impedance 150 Ohms, balanced
- Common Mode Rejection Ratio 100dB @ 60Hz
- Maximum Input +18dB @ 20Hz
- Input pad, Mono Sum, Ground lift

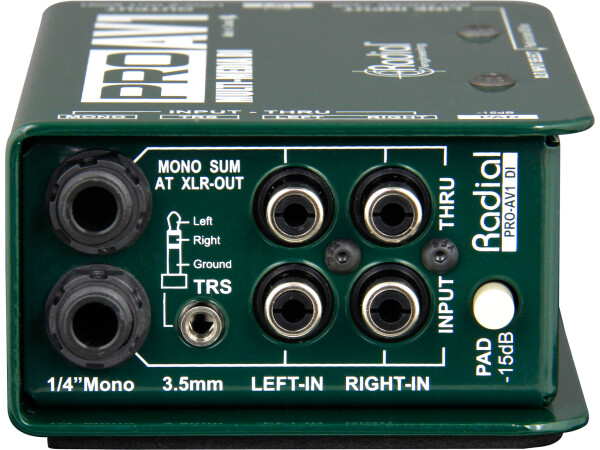

- Input Connectors 1/4", RCA, 3.5mm TRS, XLR

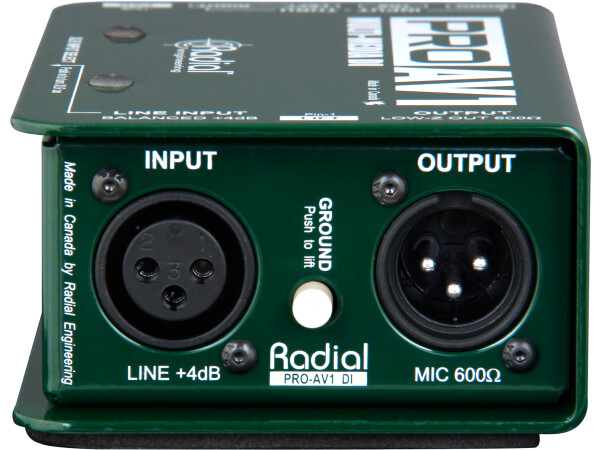

- Output Connectors XLR
- Extras 1/4" thru, RCA thru
- Construction 14 gauge steel chassis & shell
- Size (L x W x D) 3.25” x 5” x 1.875”
- Weight 0.73kg (1.6 lbs)
- Shipping size (L x W x D) 102 x 76 x 165mm (4.00" x 3.00" x 6.50")
- Shipping weight 0.87 kg (1.92 lbs)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
