Radial Engineering Trim-Two - Passive Stereo Direct Box with Level Control
SKU: R800-1117-00
UPC: 676101043507
Be the first to write a review!
Available - Item in Stock

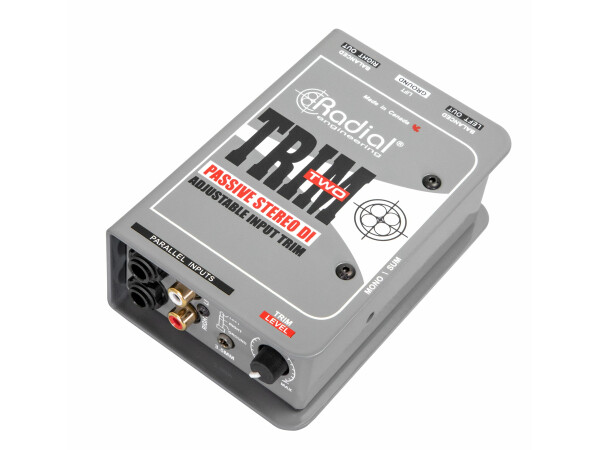

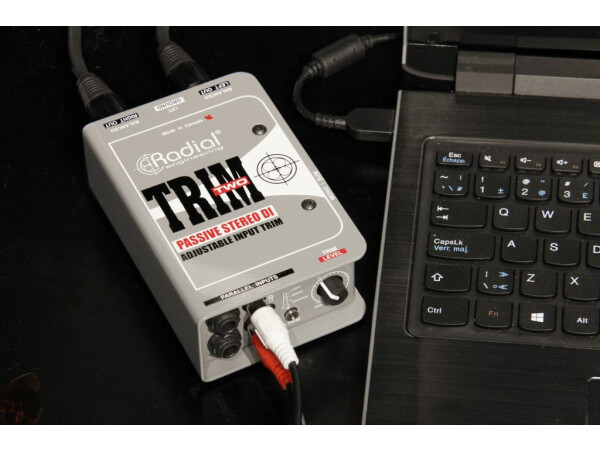

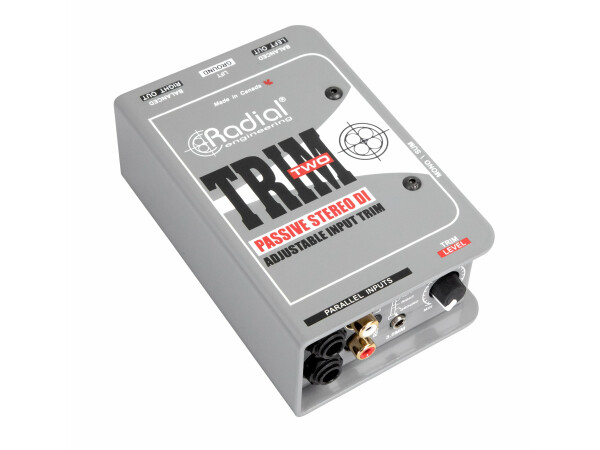

The Trim-Two™ is a passive stereo direct box designed for use with laptop computers and other consumer playback devices, eliminating hum and buzz from ground loops while providing an easy-access level control for quick adjustments on stage.
The Trim-Two allows you to connect any playback device and interface it with balanced pro audio equipment without signal loss or hum and buzz from ground loops. It features two transformers which isolate and balance the audio output from your source device, eliminating noise and allowing you to use long cable runs without signal degradation. A handy mono sum switch makes it easy to reduce the output channel count or send the same signal to two destinations at once, and an accessible level control gives you the ability to adjust levels in an instant. Multiple input connector types make it easy to hook up any consumer line level playback source, from laptops & smartphones to DJ equipment. The completely passive design means that you never have to worry about powering the Trim-Two, making it truly plug & play.
Features:
• Volume control for quick adjustments
• Transformer coupled passive design
• Stereo to mono summing mixer

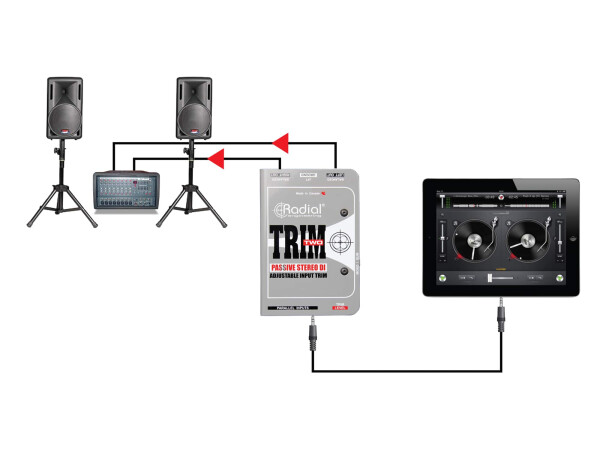

• 1/4”, RCA and 3.5mm Connectors
Applications:
• No software required
• Eliminates ground loop hum and buzz

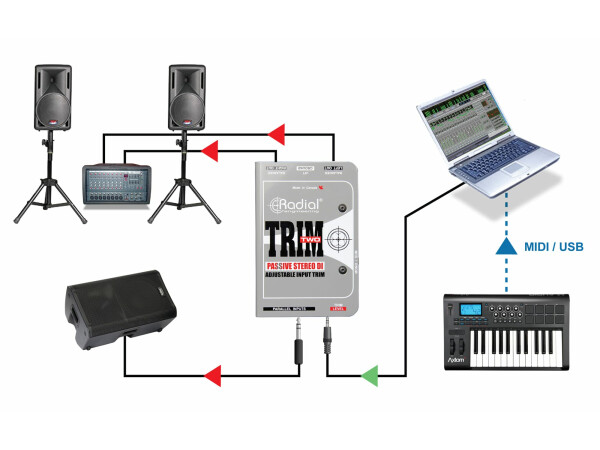

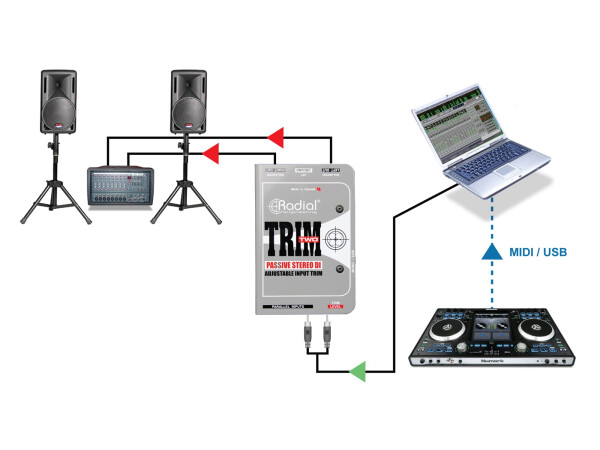

• Great for PC, laptop, DJ or keyboards
• Excellent signal handling, will not choke
Cool Stuff:
• Passive design, does not require power
• Built Radial tough for the road
• Can be rack or podium mounted
Technical Specification
- Audio circuit type Passive, transformer based
- Transformer Custom
- Number of channels Dual channel (stereo)
- Frequency response 20Hz to 20KHz
- Dynamic range >100dB
- Total harmonic distortion 0.01%
- Phase Deviation <10°
- Input Impedance 10K Ω, unbalanced
- Output Impedance 2.8K Ω, balanced
- Maximum Input +20dB @ 20Hz
- Input pad, Mono Sum, Ground lift

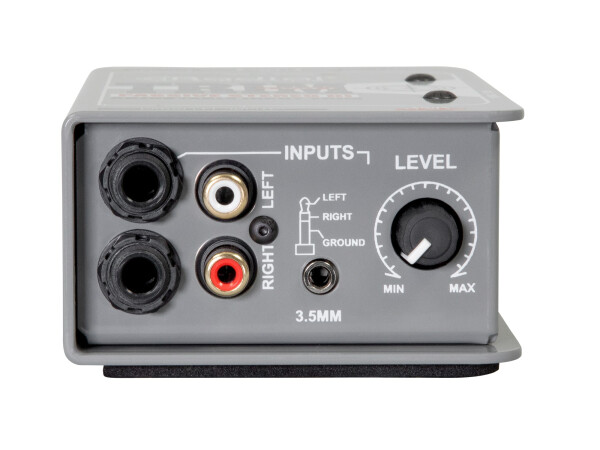

- Input Connectors 1/4" RCA and 3.5mm input

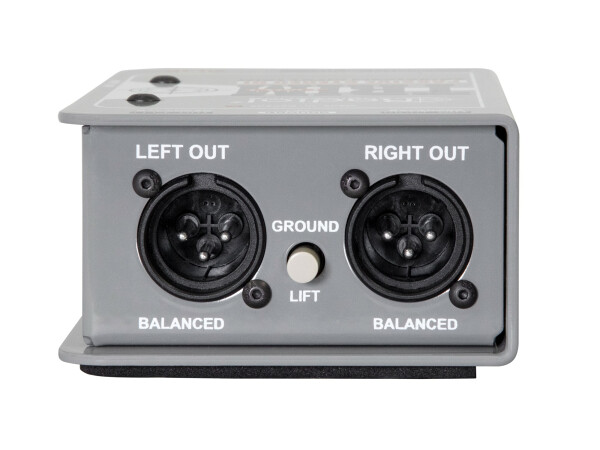

- Output Connectors XLR-M output
- Extras Copper foil shield
- Construction 14 gauge steel chassis & outer shell
- Size (L x W x D) 3.3" x 5.0" x 2" (84 x 127 x 48mm)
- Weight 1.55 lbs (0.70 kg)
- Shipping size (L x W x D) 4" x 3" x 6.5" (102 x 76 x 165mm)
- Shipping weight 1.92 lbs (0.87 kg)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
