Radial Engineering USB-Pro -Stereo USB Laptop Direct Box
SKU: R800-1050-00
UPC: 676101040599
Be the first to write a review!
Available - Item in Stock

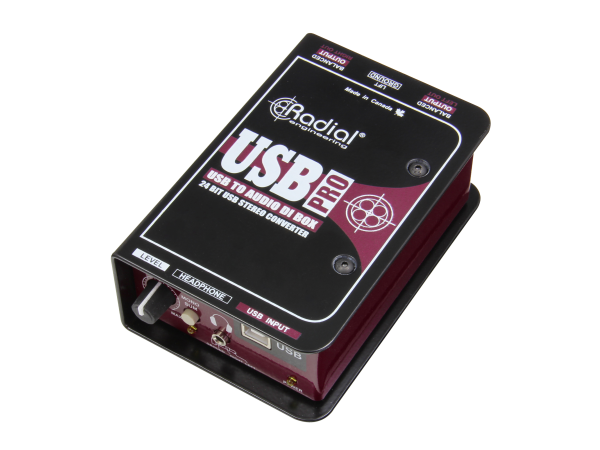

The USB-Pro is a high-resolution stereo digital audio converter and direct box that is designed to connect to any computer and seamlessly convert digital audio tracks to a pair of balanced analog outputs.
Whether you are playing backing tracks on stage, giving an audio presentation, or performing the role of DJ at an event, the USB-Pro is the easiest way to provide a high quality noise-free connection between a laptop and any sound system. Made for plug and play simplicity, the USB-Pro will automatically be listed as an available sound card in the audio settings of all popular operating systems including Windows and Mac, with 24bit/96kHz digital to analog converters that retain the quality of the audio signal. A stereo pair of balanced XLR outputs allows you to connect to a microphone preamplifier, PA system, mixing console, or even a powered speaker, with an on-board level control for quick and easy volume adjustments. Should any noise be encountered, ground lift switches are provided and isolation transformers can be inserted into the signal path to eliminate hum and buzz from ground loops, for a clean connection to the PA.
Features:
• High performance 24-bit converters
• Automatically installs – no special drivers needed
• Built-in headphone amp for signal testing

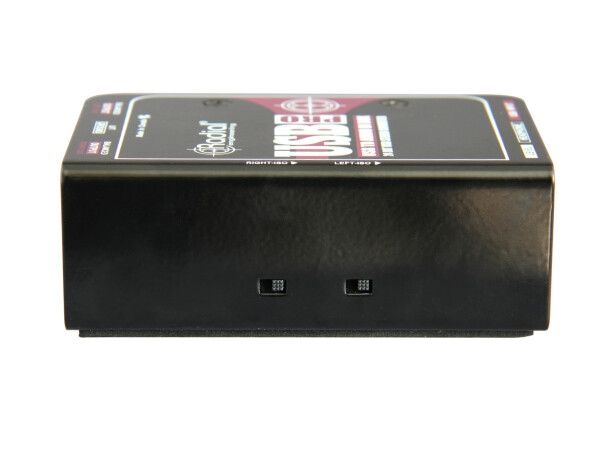

• Transformers may be switched in to eliminate noise
Applications:

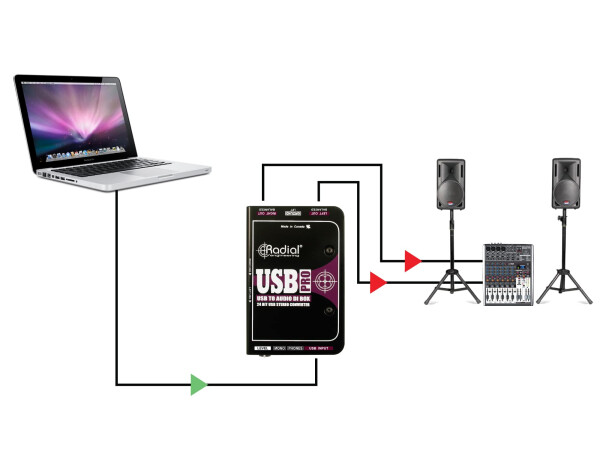

• Play digital audio files on the PA

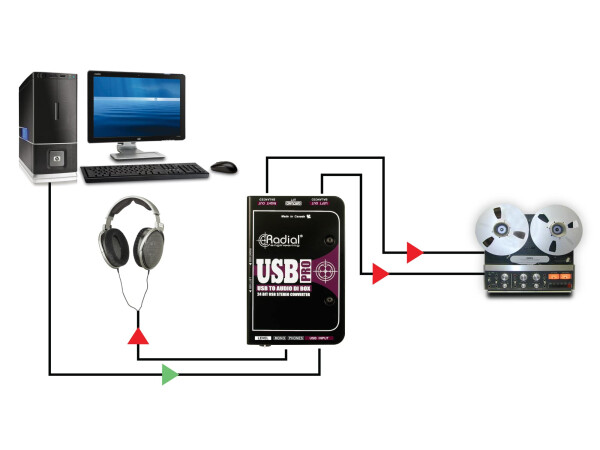

• Listen to artist’s songs in studio
• Use as an interface for DJ mixers

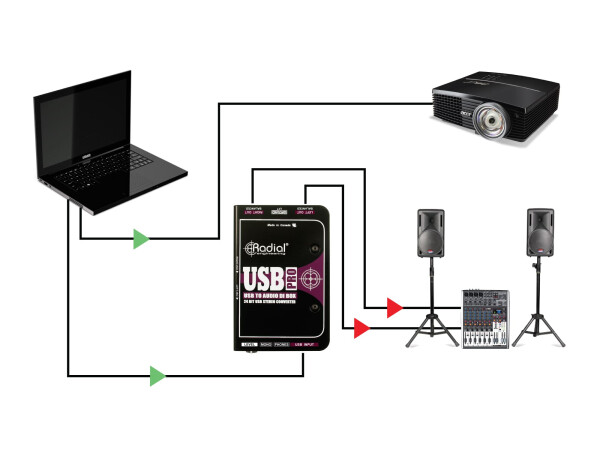

• Play back AV presentations in stereo
Cool stuff:
• Built-in headphone amp for testing
• Transformer isolation to eliminate ground loops
• Mono switch to simplify signal path
• Made ‘Radial tough’ for the road
Technical Specification
- Audio circuit type Custom decoder with analog line drive
- Frequency response 5Hz ~ 40kHz (30Hz ~ 18kHz with isolation)
- Dynamic range >90dB
- Gain +8dBu
- Total harmonic distortion 0.01%
- Output Impedance 250Ω nominal
- Noise -90dB
- Maximum Output +8dBu
- Data Compression Software compatibility Windows XP/Vista/Win7/Win8/Win10 and Mac OS, Sound file compatibility WDM, MME, CoreAudio, DirectSound, WASAPI and .WAV

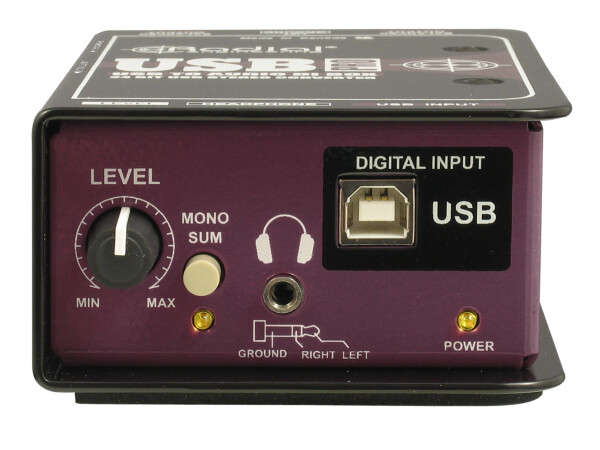

- Features Mono Sum, Ground lift, Level Control, Headphone
- Input Connectors USB connector B-type

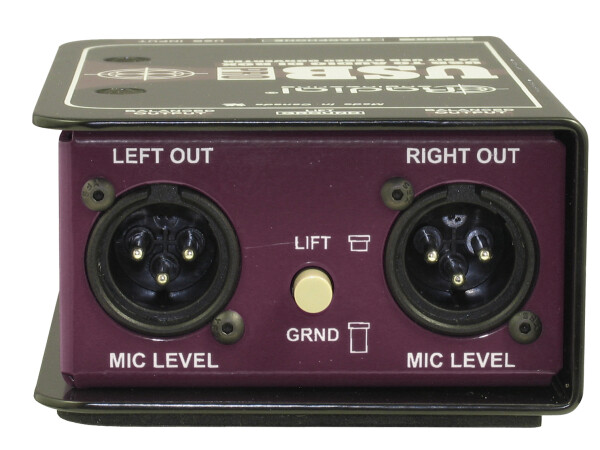

- Output Connectors 2 x XLR-M, 3.5mm headphone output
- Extras USB 1.1 full speed, Sampling Rate 44.1kHz / 48kHz / 96kHz auto sensing, 75dBu stereo separation
- Construction 14-gauge steel
- Size (L x W x D) 5.0" x 3.3" x 2" (127 x 84 x 48mm)
- Weight 1.5 lb (0.68kg)
- Power USB bus powered 500mA maximum
- Conditions For use in dry locations only between 5°C and 40°C
- Warranty Radial 3-year, transferable
