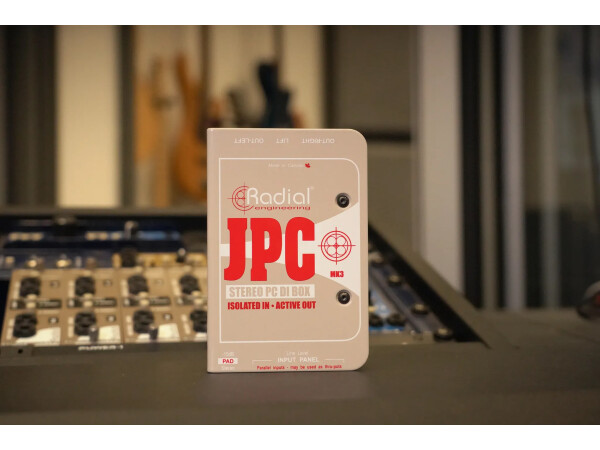

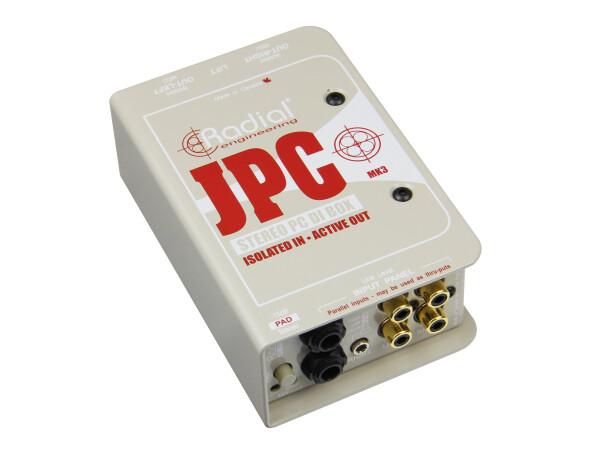

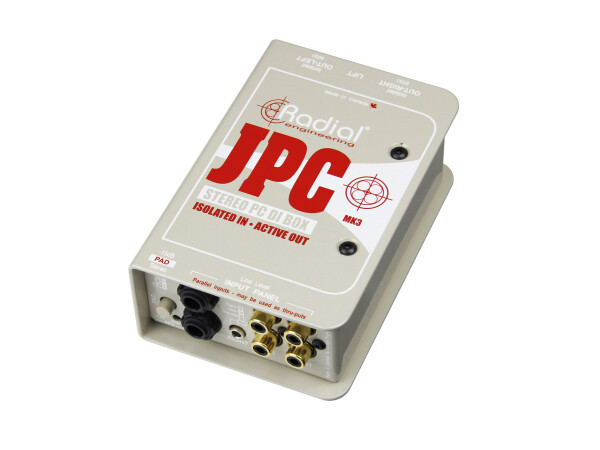

Radial Engineering JPC - Computer Direct Box
SKU: R800-1026-00
UPC: 676101035250
Be the first to write a review!
Available - Item in Stock
The JPC is an analog stereo interface designed to help solve the hum and buzz problems commonly associated with connecting a computer or consumer playback device to an audio system.
The JPC is a stereo direct box that is easy to use with practically any consumer electronic device. It utilizes active buffers and transformer isolation to create a hybrid circuit that blocks ground loops and reduces system noise, along with AC blocking capacitors to prevent any audio system noise from bleeding back into the computer. The choice of ¼", RCA and 3.5mm input connectors make it easy to interface with all types of unbalanced audio sources such as computers, smartphones, and tablets, and the outputs are XLR balanced mic level to feed snake systems and PAs. Powering the JPC is accomplished via 48V phantom from a mixing console, allowing the JPC to be used in concert environments without requiring an external power supply.
Features:
• Convenient interface for computer sound cards
• Like a “Swiss Army knife” for A/V systems
• Phantom-powered, does not require batteries
• Transformer isolation eliminates ground loop hum
• Active drive circuit electronically balances signal
Applications:
• Converts hi-Z consumer line-level to low-Z mic-level

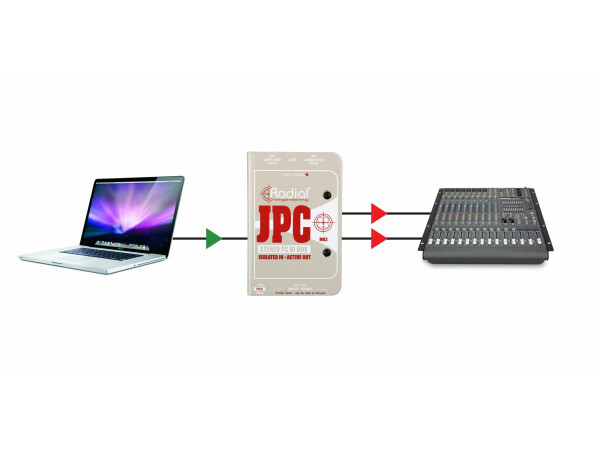

• Computer sound cards to PA system
• Audio for off-line video post-production

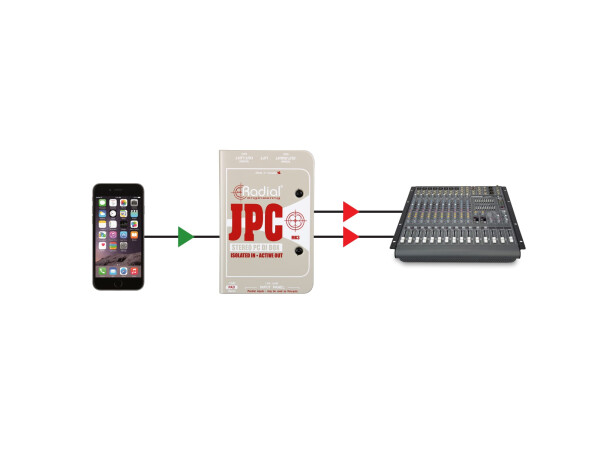

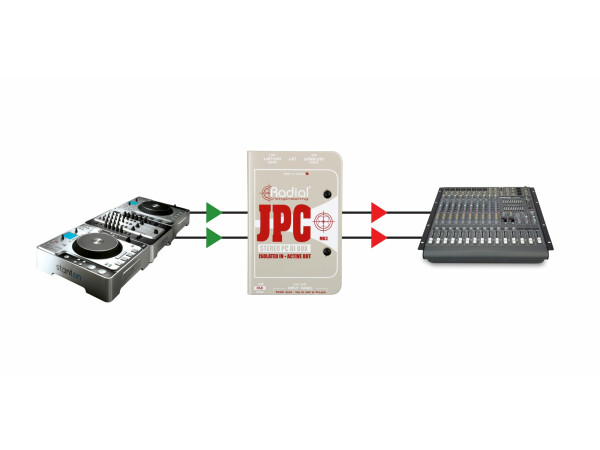

• Interface CD and MP3 players with pro-audio systems
Cool Factors:
• ‘Plug & play’ easy-to-use
• All inputs can be used as thru-puts
• Full stereo operation in a compact enclosure
• Interface ANY consumer audio device
Technical Specification
- Audio circuit type Unity Gain buffers and inverters using low noise high end audio grade operational amplifiers
- Number of channels 2
- Frequency response 20Hz ~ 20kHz +/- 2dB
- Dynamic range 111dB
- Total harmonic distortion 0.01% @ -15dBu Output
- Intermodulation Distortion Less than 0.15% at any level below clipping
- Phase Deviation +29º at 20Hz | -5º at 1kHz | -80º at 20kHz
- Input Impedance 10kΩ
- Output Impedance 600Ω
- Equivalent Input Noise -94dBu
- Noise -97dB below 0dB Out
- Maximum Input +17dBu
- Input pad, Ground lift, Phantom Power

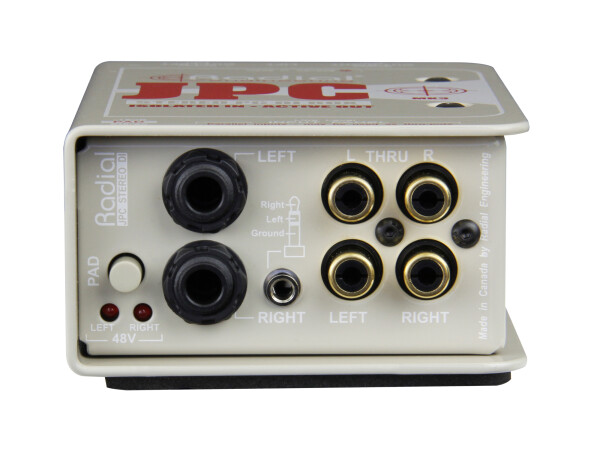

- Input Connectors 1/4", RCA, 3.5mm TRS

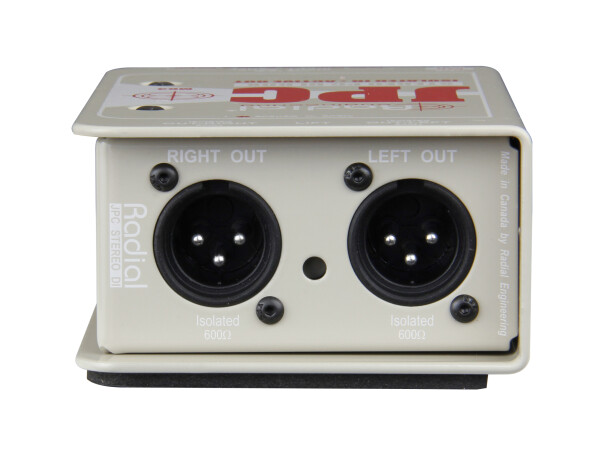

- Output Connectors XLR
- Construction 14 gauge steel chassis and outer shell
- Size (L x W x D) 3.3" x 5.0" x 2" (84 x 127 x 48mm)
- Weight 1.55lb (720 g)
- Power 48V Phantom Power (each channel requirers 48V phantom)
- Conditions For use in dry locations only between 5°C and 40°C
