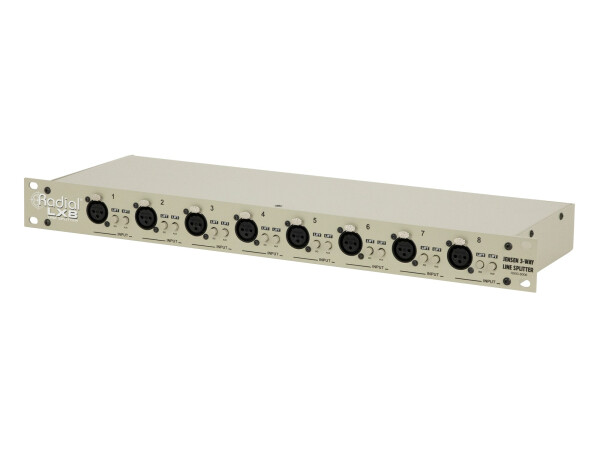

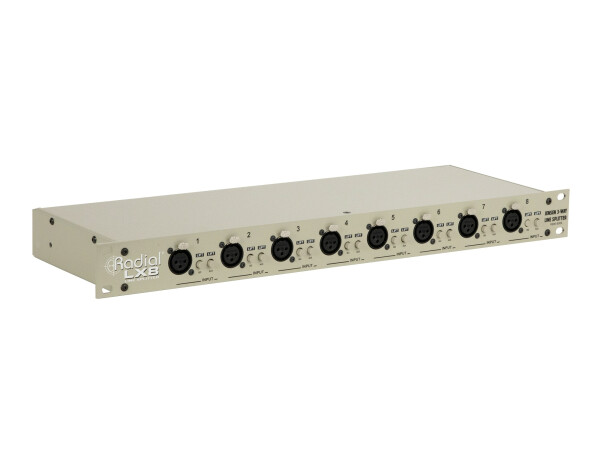

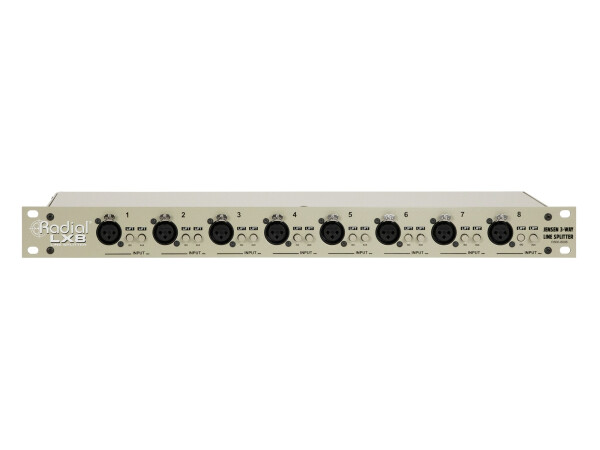

Radial Engineering LX8 - 8-Channel Rackmount Line Level Signal Splitter and Isolator
SKU: R800-8200-00
UPC: 676101038466
Be the first to write a review!
Out of Stock - Available to Order

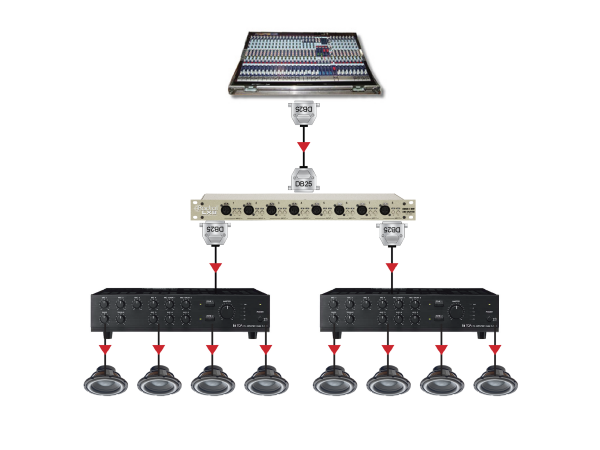

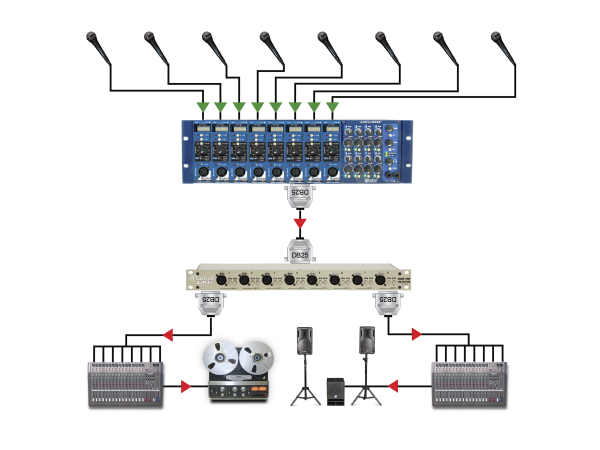

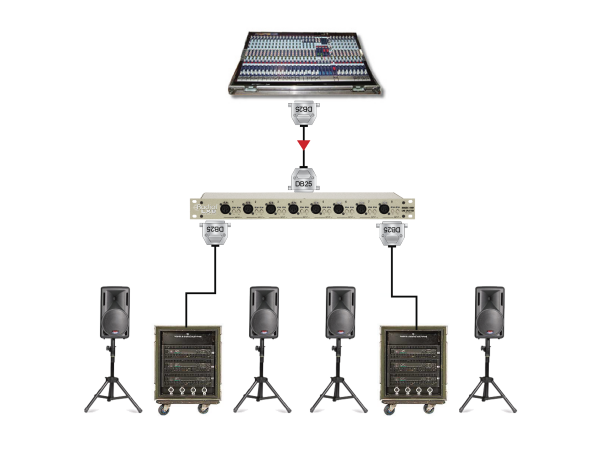

The Radial LX8™ is an eight channel passive line-level splitter designed to send multiple channels to three destinations at once, while providing transformer isolation and eliminating hum and buzz caused by ground loops.
The Radial LX8 is designed specifically to manage balanced signal splitting in professional audio systems. The single rack space design begins with a 100% passive circuit which means it does not require any power to operate. Inside, each of the eight channels is equipped with a premium Jensen® JT-123-SLPC transformer that is able to handle transients in excess of +26dB at all frequencies right down to 20Hz without audible distortion. This results in an accurate signal transfer with minimal phase shift or distortion. When used in larger systems, you benefit from significantly lower noise, making the LX8 the best choice for any demanding multi-channel audio system.
• 8-Channel balanced line level splitter & isolator
• Handles +26dB signals without distortion or noise
• Jensen transformer-equipped for exceptional audio quality
• Eliminates buzz and hum caused by ground loops
Technical Specification
- Audio circuit type Passive transformer based line level splitter
- Transformer Jensen JT-123-SLPC
- Number of channels 8 channel 3-way splitter
- Frequency response 20Hz ~ 20KHz (+0dB/-0.1dB)
- Dynamic range 140dB
- Total harmonic distortion 0.003% @ 1kHz
- Phase Deviation 0.2° @ 100Hz; 0.4° @ 20Hz
- Input Impedance 600 Ohms, balanced
- Output Impedance 600 Ohms, balanced
- Common Mode Rejection Ratio -85dB @ 60Hz
- Maximum Input +26dBu @ 1kHz, +24dBu @ 20Hz
- Ground lift

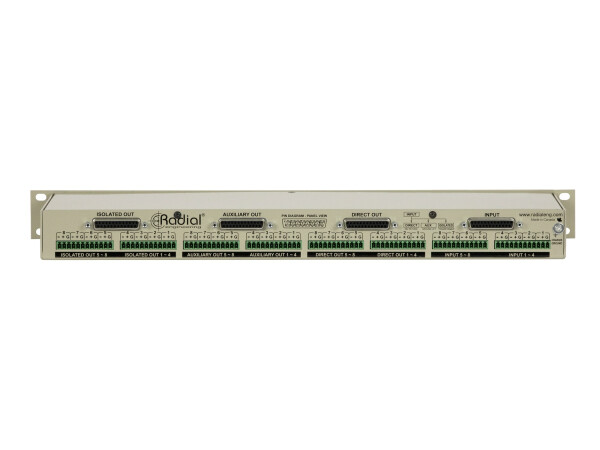

- Input Connectors XLR, DB-25, Euroblock
- Output Connectors XLR, DB-25, Euroblock
- Construction 14-gauge steel
- Size (L x W x D) 19" x 6" x 1.75" (48.25 x 15.25 x 4.45cm)
- Weight 7.5lb (3.4kg)
- Shipping size (L x W x D) 22" x 10.375" x 4.5" (55.9cm x 26.4cm x 11.4cm)
- Shipping weight 8lb (3.63kg)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
