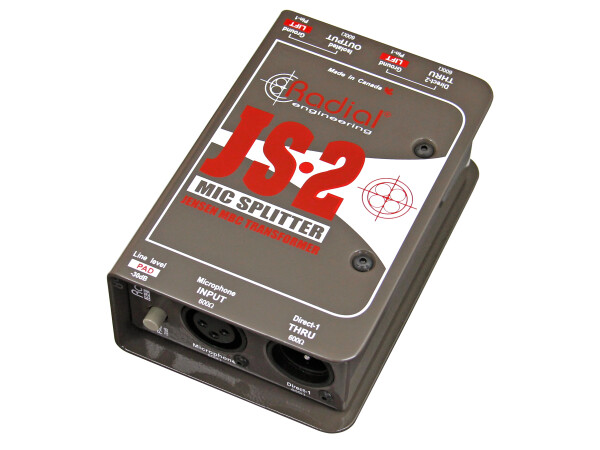

Radial Engineering JS2 - Passive 2-Way Microphone Splitter
SKU: R800-1022-00
UPC: 676101034918
Be the first to write a review!
Out of Stock - Available to Order
The JS2™ is a high performance balanced mic-level splitter designed to send a signal to multiple destinations simultaneously, with one transformer-isolated output and two direct outputs.
The JS2 is a professional mic splitter designed to split a single source to multiple destinations simultaneously without signal degradation or noise. A premium Jensen transformer inside provides galvanic isolation to eliminate buzz and hum from ground loops, while maintaining an extremely wide bandwidth with ultra-low distortion and phase shift. Ground lifts on the outputs help further reduce noise, while an input pad allows line-level sources to connected as well. Both the JS2 and the JS3 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak.
Features:
• Choice of 2 or 3-way designs for fl exibility
• Jensen transformer-equipped for best sound
• 100% isolation to eliminate ground loops
• Microphone or line-level signal handling
Applications:

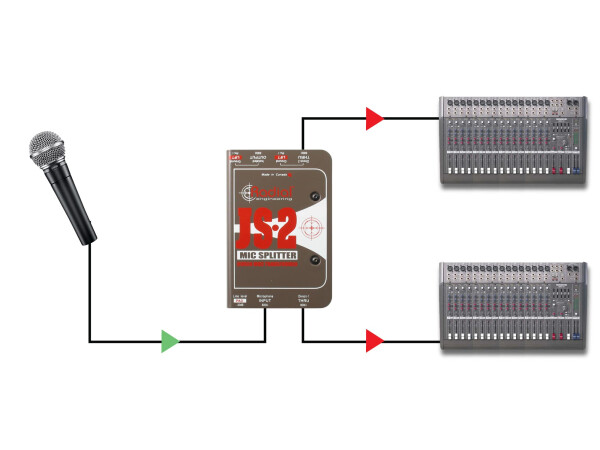

• Microphone split to 2 or 3 mixers

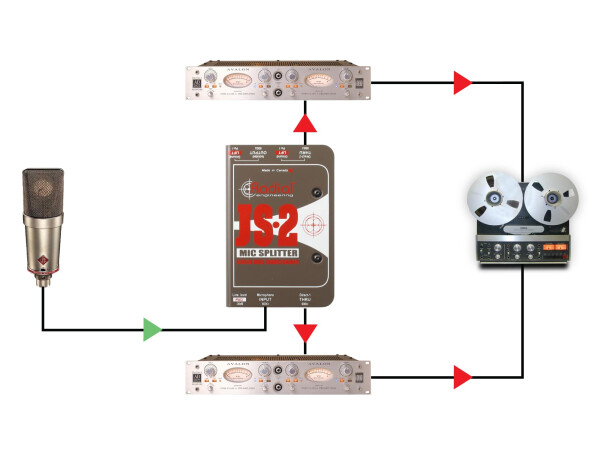

• Provides recording feed from a live performance
• Distribute line-level signals
Cool stuff:
• Jensen transformers for best sound
• ‘Plug & play’ easy-to-use
• Completely passive, no power needed
Technical Specification
- Audio circuit type Passive mic/line splitter, transformer based
- Transformer JT-MB-CPC, 1:1 ratio
- Number of channels Three-way splitter (one in/three out)
- Frequency response 20Hz ~ 20KHz (+0dB/ -2dB)
- Dynamic range 140dB
- Total harmonic distortion 0.0005% @ 1kHz
- Phase Deviation 0.7° @ 100Hz; 2.8° @ 20Hz
- Input Impedance 2.4k Ohms, unbalanced
- Output Impedance 150 Ohms, balanced
- Maximum Input +25dBu @ 1kHz

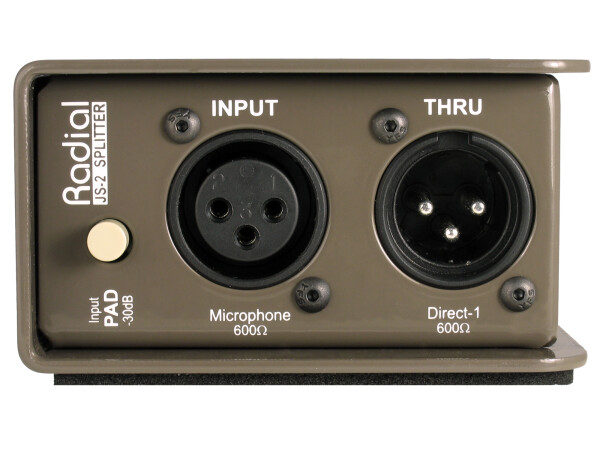

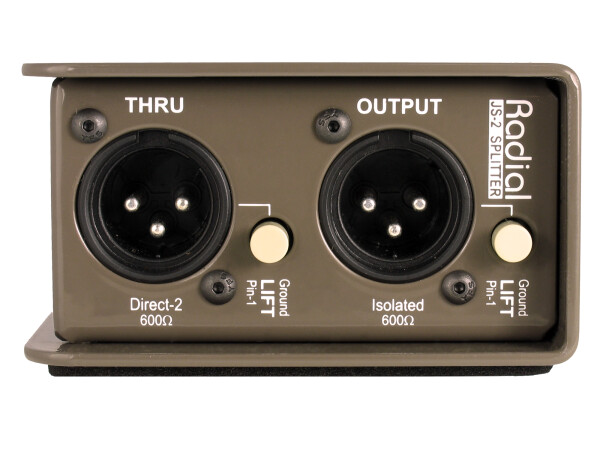

- Input pad, Ground lift
- Input Connectors XLR-F in
- Output Connectors Isolated output
- Construction 14-gauge steel chassis & outer shell
- Size (L x W x D) 3.3" x 5.0" x 2" (84 x 127 x 48mm)
- Weight 1.55lb (0.7kg)
- Shipping size (L x W x D) 4" x 3" x 6.5" (102 x 76 x 165mm)
- Shipping weight 1.92lb (0.87kg)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
