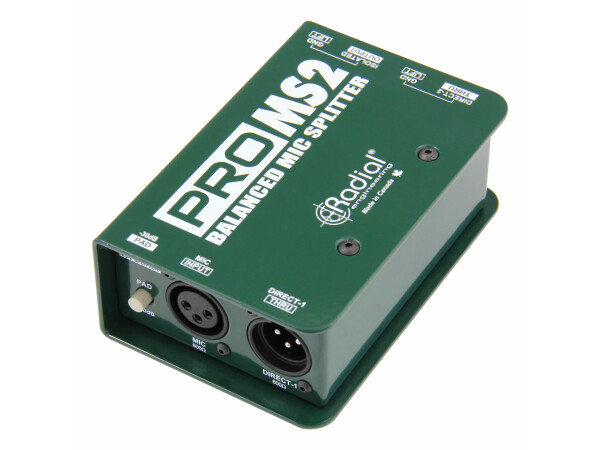

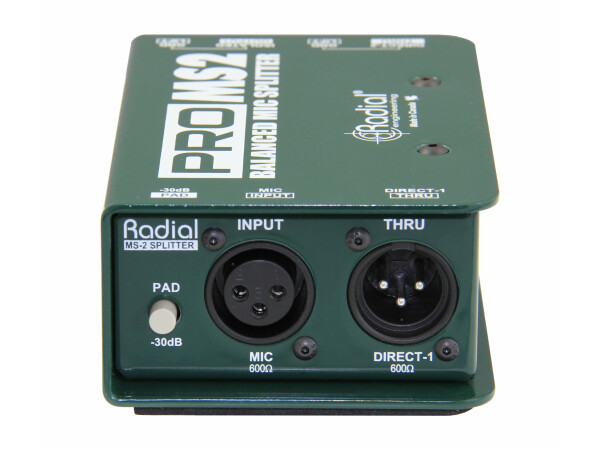

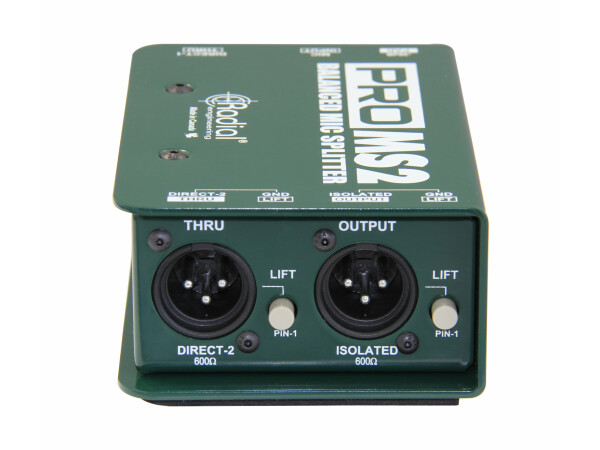

Radial Engineering ProMS2 - Passive 2-way Microphone Splitter
SKU: R800-1122-00
UPC: 676101040827
Be the first to write a review!
Out of Stock - Available to Order
The ProMS2™ is a balanced mic-level splitter designed to send a signal to multiple destinations simultaneously on stage, with one transformer-isolated output and two direct outputs.
The ProMS2 is a mic splitter designed to split a single source to multiple destinations simultaneously without signal degradation or noise. A high quality Eclipse transformer inside provides galvanic isolation to eliminate hum and buzz from ground loops, while delivering a wide frequency response and low distortion. Ground lifts on the outputs help further reduce noise, while an input pad allows line-level sources to be connected as well. The ProMS2 can be rack mounted for touring and installation purposes, with up to eight fitting in the Radial J-Rak.

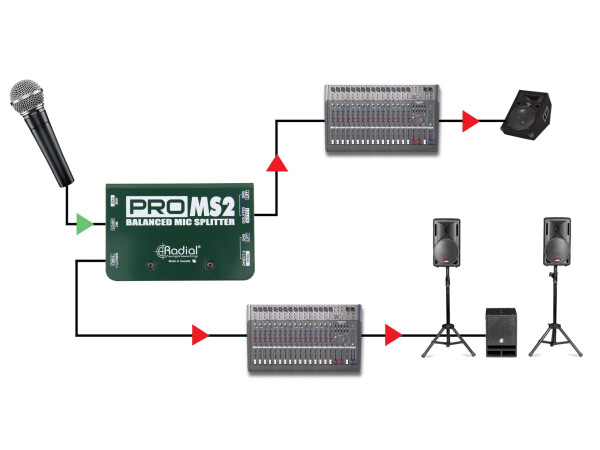

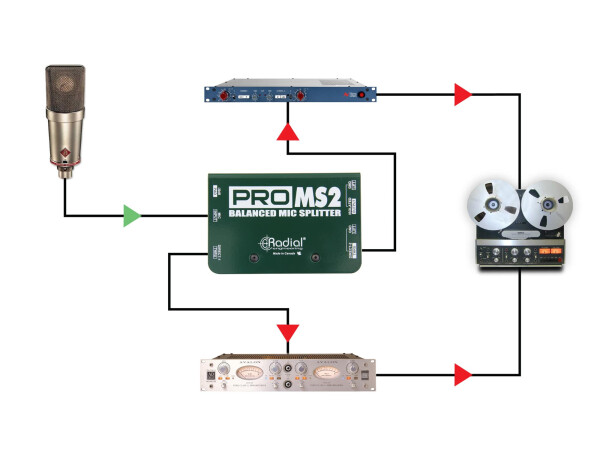

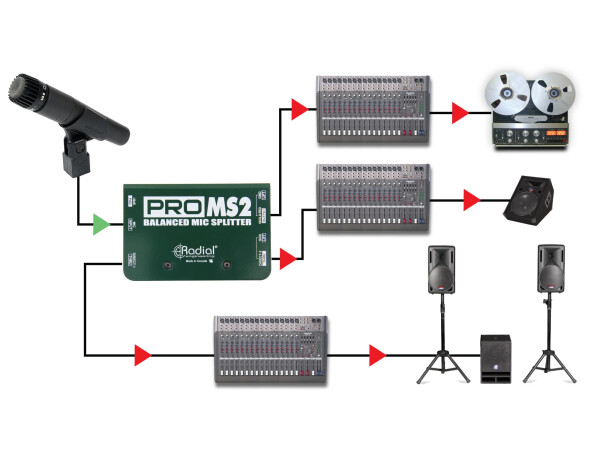

• Send one microphone signal to three destinations simultaneously
• Eclipse transformer for clean & transparent audio
• Eliminates hum and buzz caused by ground loops
• Single isolated output provides optimal noise rejection
Technical Specification
- Audio circuit type Passive
- Transformer Eclipse ET-MS10
- Frequency response 20Hz ~ 20KHz (+0dB -1dB)
- Dynamic range >140dB
- Gain -0.5dB
- Total harmonic distortion 0.00%
- Intermodulation Distortion 0.00%
- Phase Deviation 1° @ 20Hz
- Input Impedance 2.5K Ohms, unbalanced
- Output Impedance 140K Ohms, balanced
- Common Mode Rejection Ratio -115dB at 60Hz
- Noise -140dB
- Maximum Input +26dBu
- Input Connectors XLR-F
- Output Connectors XLR-M
- Construction 14-gauge steel chassis & outer shell
- Weight 1.55lb (0.7kg)
- Shipping weight 1.92lb (0.87kg)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
