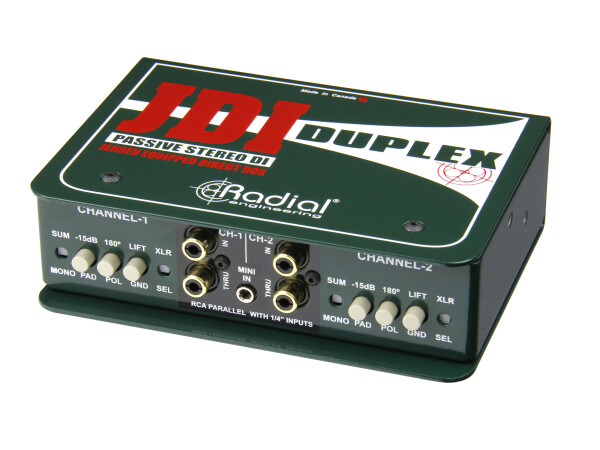

Radial Engineering JDI Duplex - Stereo Direct Box with Jenson Transformer
SKU: R800-1020-00
UPC: 676101034093
Be the first to write a review!
Available - Item in Stock
The Radial JDI Duplex is a professional dual-channel passive direct box designed for high-performance stereo and multi-source applications in live sound, studio recording, and broadcast environments. Built around two premium Jensen transformers, it delivers exceptional signal clarity, wide bandwidth, and complete electrical isolation for noise-free audio performance.

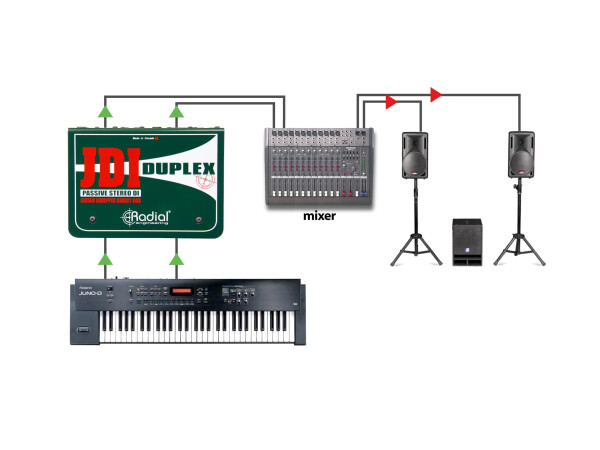

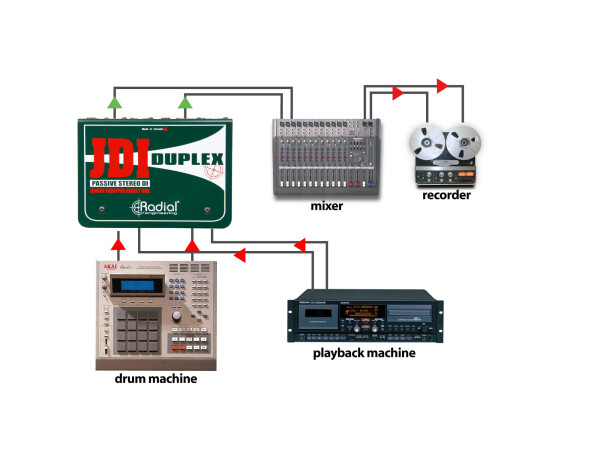

The Duplex is ideal for connecting stereo keyboards, digital pianos, playback systems, and a wide range of line-level or instrument sources to professional mixing consoles. Its passive transformer-based design ensures natural tone reproduction with extremely low distortion, while effectively eliminating hum and buzz caused by ground loops.

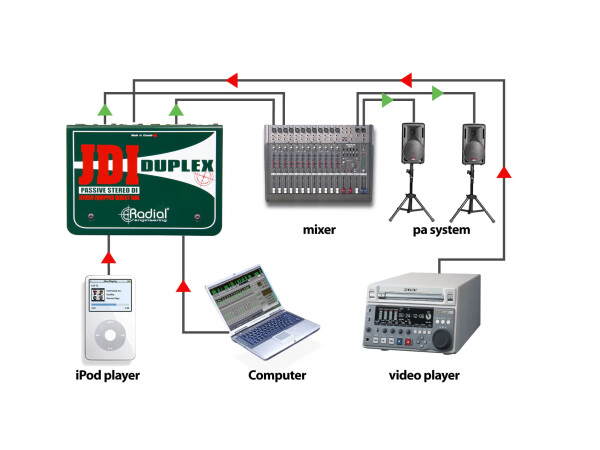

A wide range of input options makes the JDI Duplex highly versatile, including 1/4”, RCA, 3.5mm stereo, and XLR inputs. This allows seamless integration with consumer devices, studio equipment, and professional +4dB line-level sources without the need for adapters or additional interfaces.

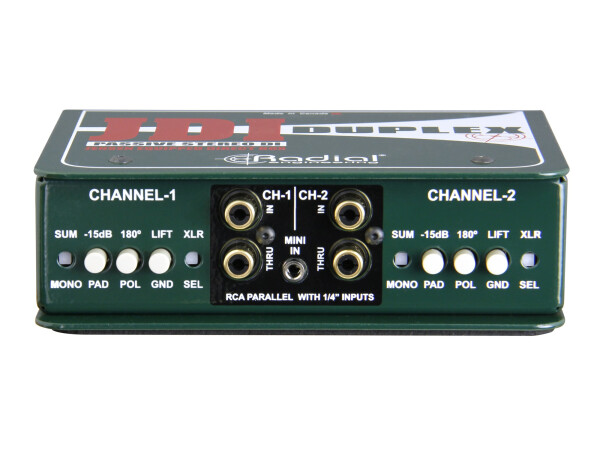

Each channel features transformer isolation, a -15dB pad for high-output sources, ground lift switching, and polarity reverse control for precise phase alignment in complex audio systems. The result is a flexible, reliable DI solution for demanding professional applications.
Housed in a rugged 14-gauge steel chassis, the JDI Duplex is built for touring durability while maintaining the pristine audio quality expected from Radial’s flagship passive DI designs.
Key features
• Dual-channel passive DI with premium Jensen transformers
• Exceptional stereo signal clarity with wide frequency response
vSupports 1/4”, RCA, 3.5mm, and XLR inputs for maximum flexibility
• Transformer isolation eliminates hum and ground loop noise
• -15dB pad for handling high-output instruments and line sources
• Ground lift and 180° polarity reverse for stage troubleshooting
• Ideal for keyboards, playback systems, and stereo instruments
• Rugged steel chassis designed for touring and professional use
Technical Specification
- Audio circuit type Passive, transformer based
- Transformer Jensen JT-DBE
- Number of channels 2
- Frequency response 20Hz ~ 20kHz at +/- 0.2dB
- Dynamic range 135dB
- Total harmonic distortion 0.001%; 1kHz/+4dBu; 600 Ohm load
- Phase Deviation -1° @ 20Hz; 0.5° @ 150Hz; 600 Ohm load
- Input Impedance 140k Ohm PAD off; 10k Ohm PAD on
- Output Impedance 600 Ohms
- Maximum Input +20dB @ 1kHz
- Input pad, Mono Sum, 180° polarity reverse, Ground lift

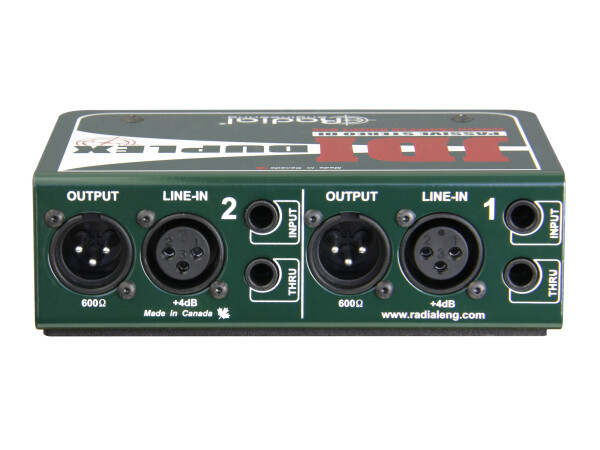

- Input Connectors 1/4", RCA, 3.5mm, XLR
- Output Connectors XLR, 1/4" thru
- Extras Line Level or hi-Z input
- Construction 14 gauge steel chassis & outer shell
- Size (L x W x D) 160mm x 48 x 127mm (6.3" x 1.9" x 5")
- Weight 1kg (2.2lbs)
- Shipping size (L x W x D) 210 x 159 x 83mm (8.25" x 6.25" x 3.25")
- Shipping weight 1.43 kg (3.15 lbs)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
