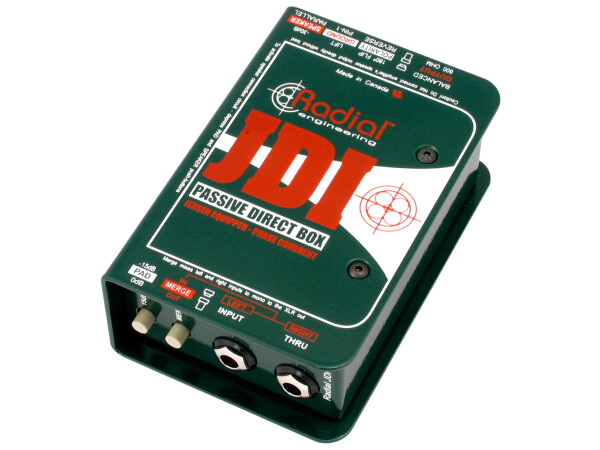

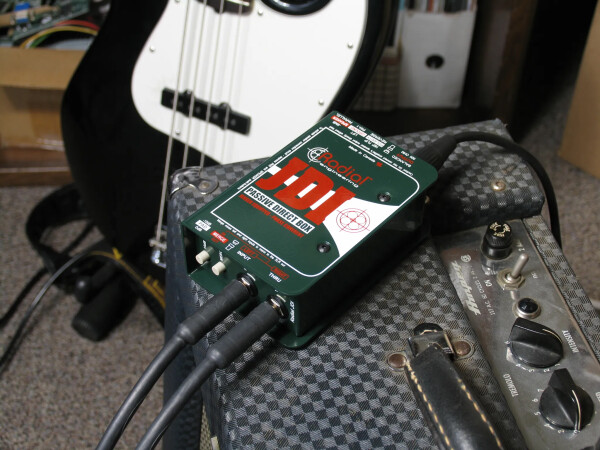

Radial Engineering JDI - Premium Passive Direct Box with Jenson Transformer
SKU: R800-1010-00
UPC: 676101034086
Be the first to write a review!
Available - Item in Stock
The JDI is a high performance passive direct box for live concert touring and professional studio recording applications, featuring a premium Jensen transformer for exceptional audio performance.

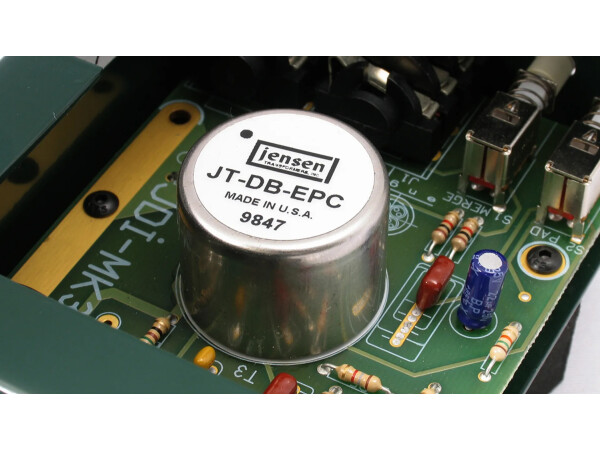

The Radial JDI is a passive direct box designed to handle extreme signal levels without distortion of any kind. At the heart, the Radial JDI employs the world class Jensen JT-DB-EPC audio transformer delivering a smooth, warm sounding Bessel curve, reminiscent of the finest vintage gear. Ruler flat from 10Hz to 40kHz and with virtually zero phase deviation, the JDI delivers the natural, pure sound of the instrument without artifact. By its no-power passive design, the Radial JDI performs both high-to-low impedance conversion and signal balancing over a magnetic bridge that passes signal while rejecting stray DC voltage. This makes the JDI particularly adept at eliminating hum and buzz caused by ground loops.
Features:
• Jensen transformer equipped passive DI
• Eliminates hum and buzz from ground loops
• Virtually zero phase & harmonic distortion
• Extraordinary signal handling and noise rejection
Applications:
• Great with high-output electronic instruments

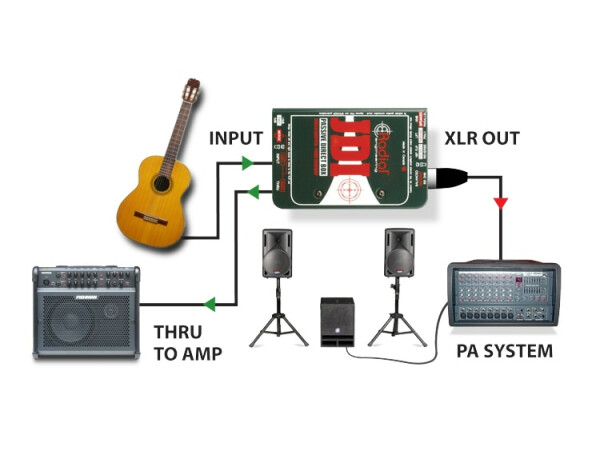

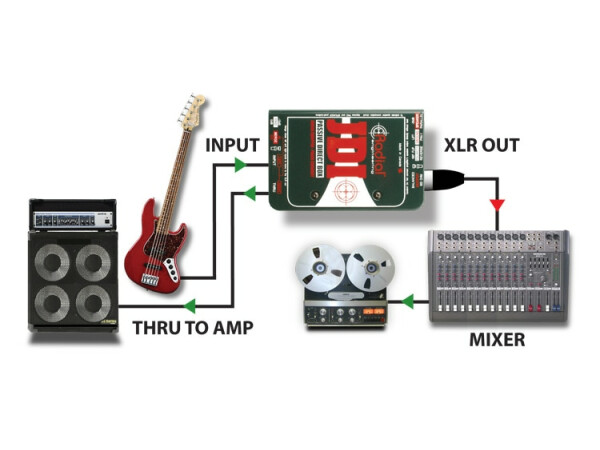

• Ideal for acoustic guitars & active basses

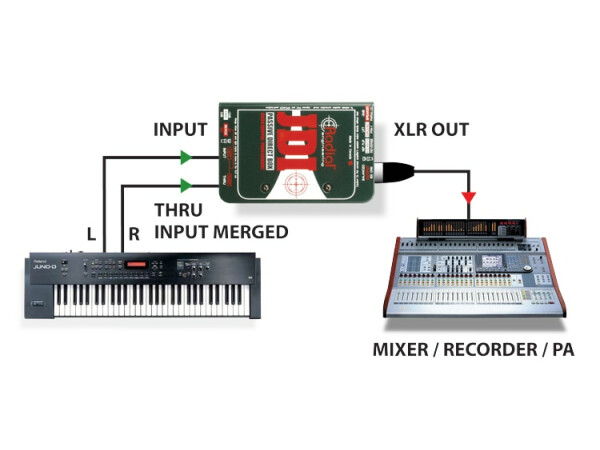

• Merge stereo keyboards to mono
• Perfect for live performance & studio recording
Cool Stuff:
• Build tough to survive the road
• Passive operation, no power required
• Impossible to overload
Technical Specification
- Audio circuit type Passive, transformer based
- Transformer Jensen JT-DBE
- Number of channels Single channel (mono)
- Frequency response 20Hz ~ 20KHz (± 0.2dB)
- Dynamic range 135dB
- Total harmonic distortion 0.05% from 20Hz ~ 20kHz @-10dB
- Phase Deviation 0.3° @ 100Hz; 3° @ 20Hz
- Input Impedance 140k Ohms, unbalanced
- Output Impedance 150 Ohms, balanced
- Maximum Input +21dB @ 20Hz ~ 20kHz

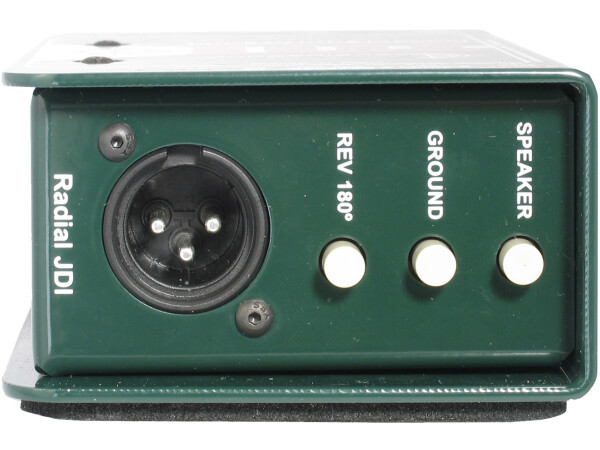

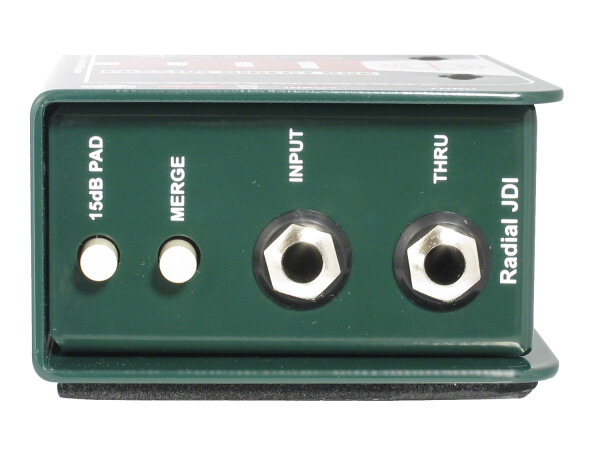

- Features Input pad, Mono Sum, 180° polarity reverse, Ground lift, Speaker filter
- Construction 14 gauge steel chassis & outer shell
- Finish Durable powder coat
- Size (L x W x D) 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm)
- Weight 1.55 lbs (703 grams)
- Shipping size (L x W x D) 6.5" x 4" x 3" (165mm x 102mm x 76mm)
- Shipping weight 1.92 lbs (870.9 grams)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
- Warranty Radial 3-year, transferable
