Radial Engineering J33 - Active Turntable Phono Preamp & DI Box
SKU: R800-1300-00
UPC: 676101035762
Be the first to write a review!
Out of Stock - Available to Order

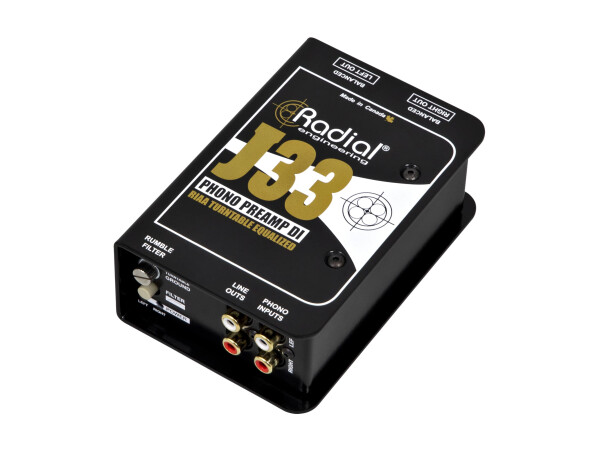

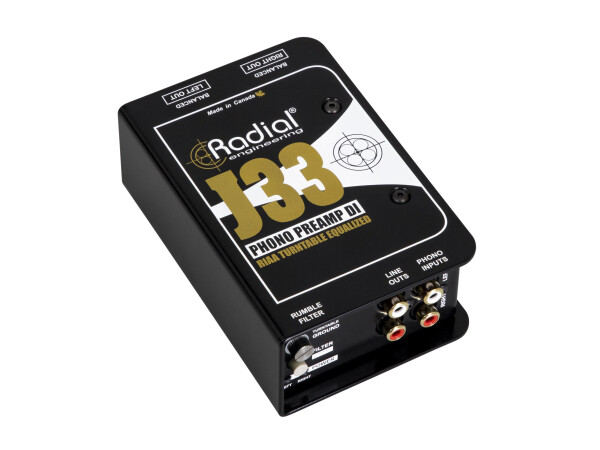

The J33™ combines a high quality turntable (phono) preamp with a DI box, providing consumer line-level outputs in addition to balanced mic-level outputs that allow you to connect a record player to pro audio equipment such as mixing consoles and recording interfaces.

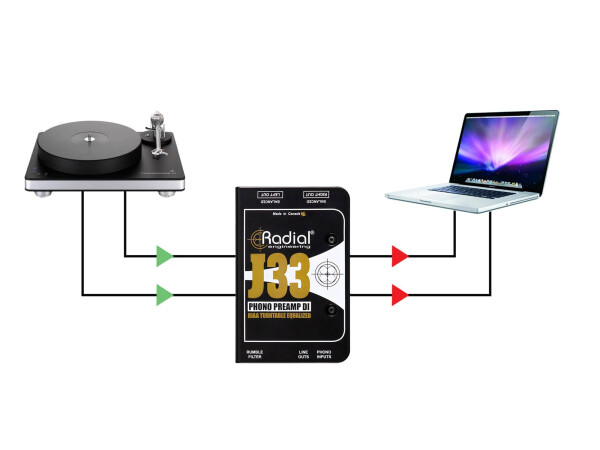

The J33 provides the ability to connect turntables to pro audio equipment such as a recording interfaces and mixers, allowing you to easily integrate your vinyl collection with studio gear for playback or recording. Balanced XLR mic-level outputs are available for connection to a mic preamplifier for archiving or sampling in the studio, and -10dB consumer line-level outputs are also provided to connect to home stereo equipment. The J33 can also be used in a live performance environment, offering an improved interface for DJs to connect to the PA system.
Features:
• RIAA EQ curve for proper playback response
• RCA and balanced XLR output options
• Rumble filter stops low-frequency feedback
• Powered by 48V phantom or external supply
Applications:
• Designed for moving-magnetic turntable cartridges

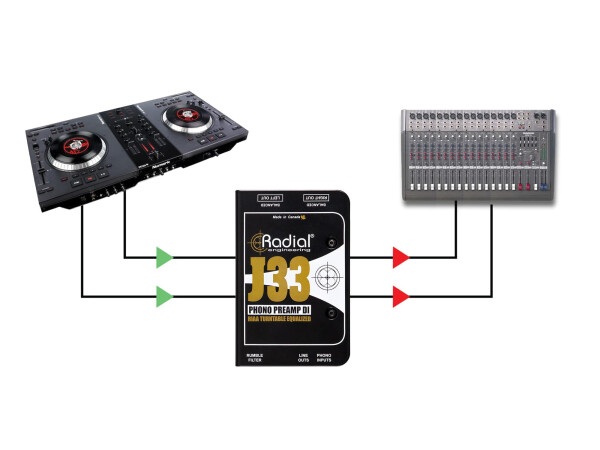

• Pro DJ touring and nightclubs
• Archiving vinyl records
• Recording digital samples from vinyl
• Recording scratch performances
Cool stuff:
• Eliminates need for DJ mixer
• RIAA preamp and active DI in one box

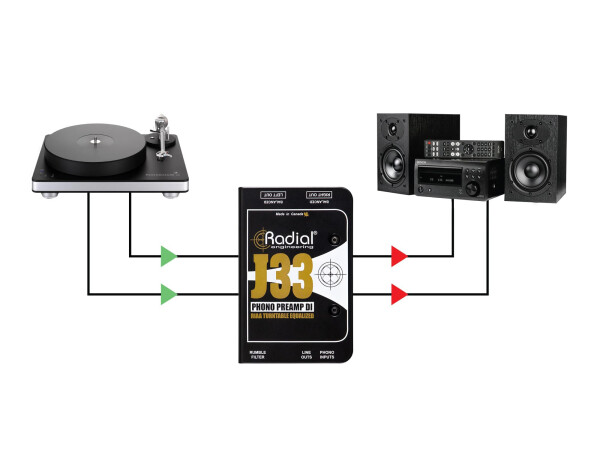

• Can be used as hi-fi turntable preamp
• Lets you connect your turntable to anything!
• Low-Z out will drive signals 300 feet!
• Ultra-tough construction, lasts a lifetime
Technical Specification
- Audio circuit type Active circuit
- Number of channels Stereo
- Frequency response RIAA response curve for phonographic playback
- Dynamic range 91dB
- Total harmonic distortion 0.002% @ 1kHz (-33dBu input level)
- Intermodulation Distortion 0.025% @ -45dBu input
- Input Impedance 47k Ohms, unbalanced
- Output Impedance XLR out: 600 Ohms; ¼", 3.5mm, RCA outs: 470 Ohms
- Equivalent Input Noise -82dBu @ 0dBu output
- Maximum Input -30dBu @ 1kHz
- Voltage Gain +37.8dB
- HPF

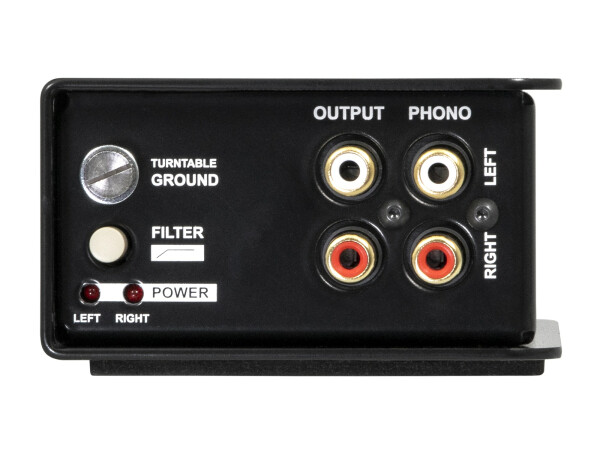

- Input Connectors RCA

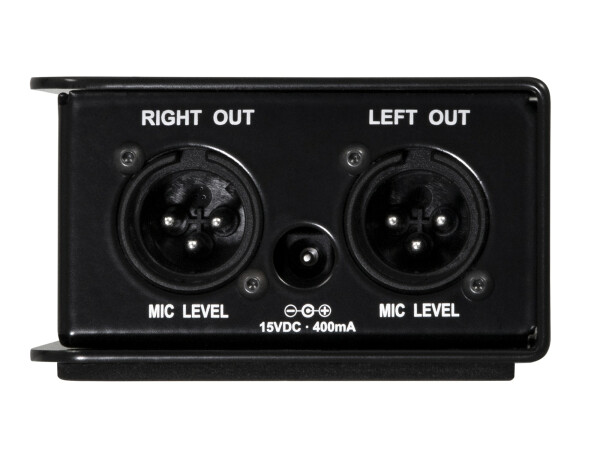

- Output Connectors RCA, 1/4", 3.5mm, XLR
- Extras Rumble Filter
- Construction 14-gauge steel chassis and outer shell
- Size (L x W x D) 5" x 6.25" x 2" (127 x 159 x 51mm)
- Weight 2.80lbs (1.28 kg)
- Power +48V phantom or +15VDC/400mA external supply (included)
- Conditions For use in dry locations only between 5°C and 40°C
