Radial Engineering JDI Stereo - Premium Stereo Passive DI Direct Box
SKU: R800-1012-00
UPC: 676101043422
Be the first to write a review!
Available - Item in Stock

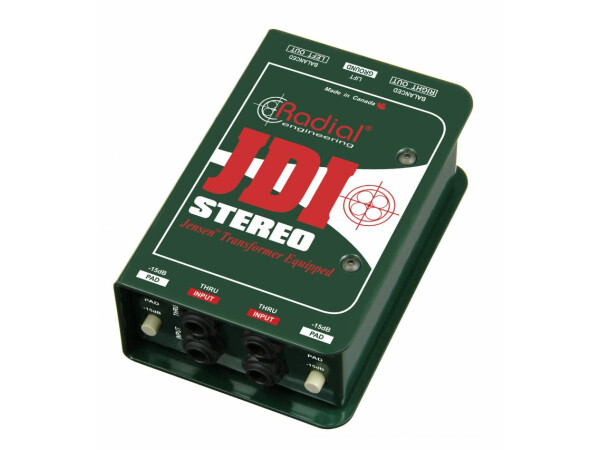

The JDI Stereo is a high performance 2-channel passive direct box for live concert touring and professional recording applications, featuring premium Jensen transformers for exceptional audio performance.
The Radial JDI Stereo is a passive two-channel direct box designed to handle extreme signal levels without distortion of any kind. It employs two world-class Jensen JT-DB-EPC audio transformers to deliver a smooth, warm sounding Bessel curve, reminiscent of the finest vintage gear. Ruler flat from 10Hz to 40kHz and with virtually zero phase deviation, the JDI Stereo delivers the natural, pure sound of the instrument without artifact. By its no-power passive design, the JDI Stereo performs both high-to-low impedance conversion and signal balancing over a magnetic bridge that passes signal while rejecting stray DC voltage. This makes it particularly adept at eliminating hum and buzz caused by ground loops.
FEATURES:
• Jensen transformers for best performance
• Ultra-low distortion of all types
• Linear from 10Hz ~ 40kHz
• 100% isolation eliminates hum and buzz
• Built to survive the road
BENEFITS:
• Able to handle any instrument source
• High impedance will not load pickups
• Eliminated noise from stray DC currents
• Able to handle deep bass without choking
COOL STUFF:
• 'Plug-&-play' easy-to-use!
• No battery or phantom-power required
• Impossible to overload!
• Up to 8 may be rack-mounted with the J-Rak
Technical Specification
- Audio circuit type Passive, transformer based
- Transformer Jensen JT-DBE
- Number of channels Two channels (dual mono)
- Frequency response 20Hz ~ 20KHz (± 0.2dB)
- Dynamic range 135dB
- Total harmonic distortion 0.05% from 20Hz ~ 20kHz @-10dB
- Phase Deviation 0.3° @ 100Hz; 3° @ 20Hz
- Input Impedance 140k Ohms, unbalanced
- Output Impedance 150 Ohms, balanced
- Maximum Input +21dB @ 20Hz ~ 20kHz
- Features Input pad, Ground lift

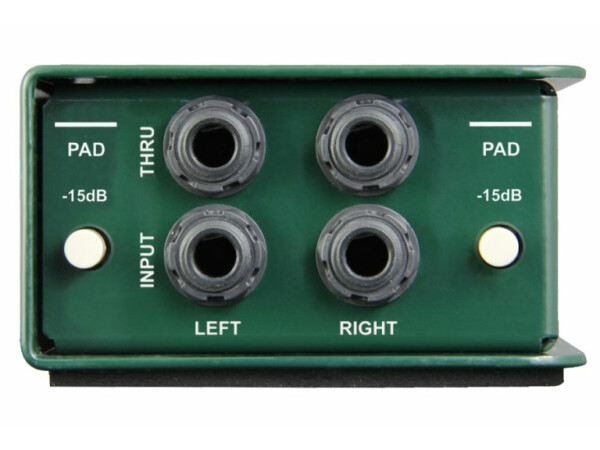

- Input Connectors Unbalanced 1/4"

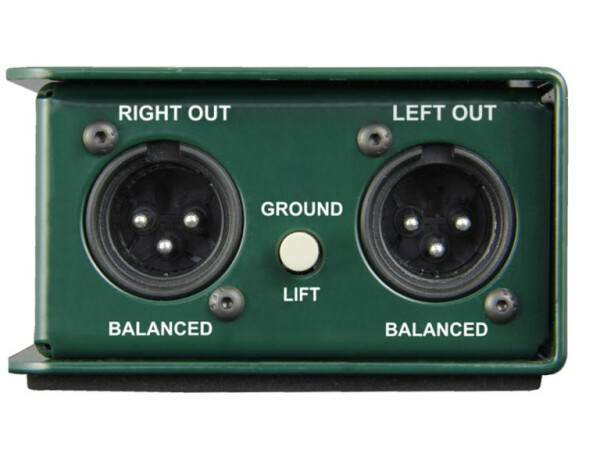

- Output Connectors XLR out, 1/4" thru
- Construction 14 gauge steel chassis & outer shell
- Size (L x W x D) 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm)
- Weight 1.55 lbs (703 grams)
- Shipping size (L x W x D) 6.5" x 4" x 3" (165mm x 102mm x 76mm)
- Shipping weight 1.92 lbs (870.9 grams)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
- Warranty Radial 3-year, transferable
