Radial Engineering Backtrack - Stereo Backing Track Switcher
SKU: R800-8102-00
UPC: 676101044627
Be the first to write a review!
Available - Item in Stock

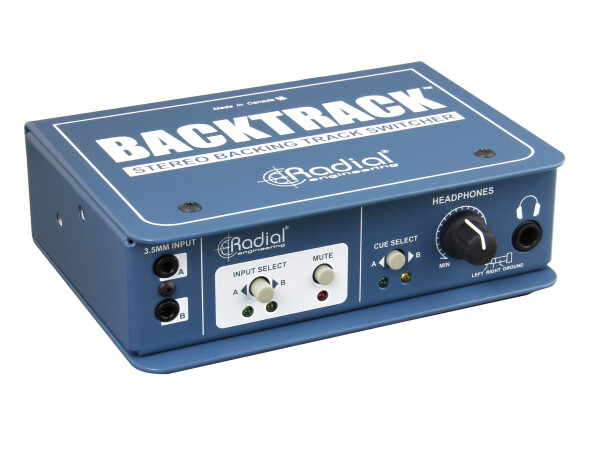

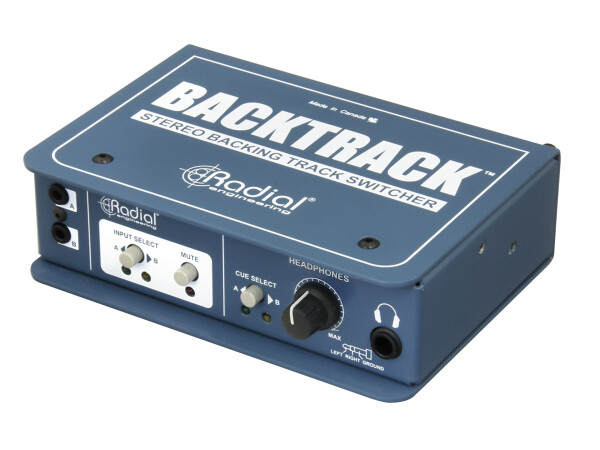

The Backtrack is a compact stereo audio switcher, perfect for bands running redundant backing tracks on stage or switching between any stereo audio sources.
For any performance that incorporates backing tracks or other pre-recorded elements, reliability is crucial to ensuring a smooth performance. Unfortunately, smartphone batteries die, laptops freeze up, and Murphy's Law will always apply. The Backtrack creates a redundant system to ensure that you can instantly switch over to a backup device should any problems arise with your primary playback source. This can be accomplished easily with the push of a button on the Backtrack or via a remote JR-2 footswitch, giving you peace of mind and freeing you up to focus on your performance without worry.
Features:

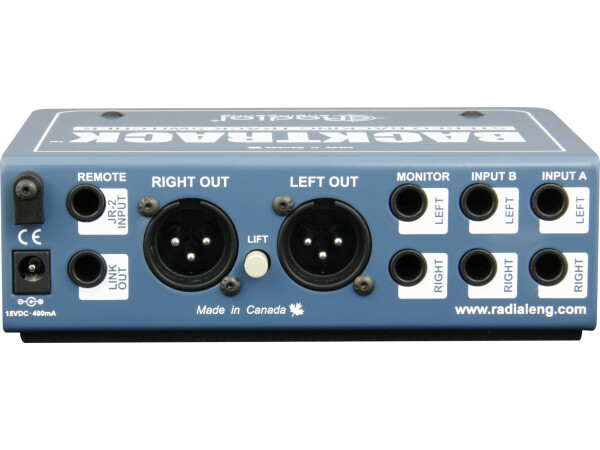

• Dual ¼” TRS and Stereo 3.5mm inputs
• Transformer isolated XLR outputs for the PA
• ¼” TRS monitor outputs to feed powered speakers
• Headphone output with level control
Applications:

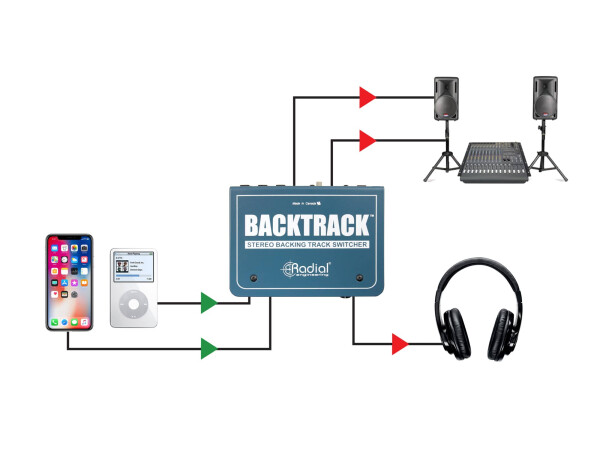

• Switch between redundant playback devices on stage
• Seamlessly select backup device should primary playback fail
• Headphones can monitor each source silently for testing
Extras:

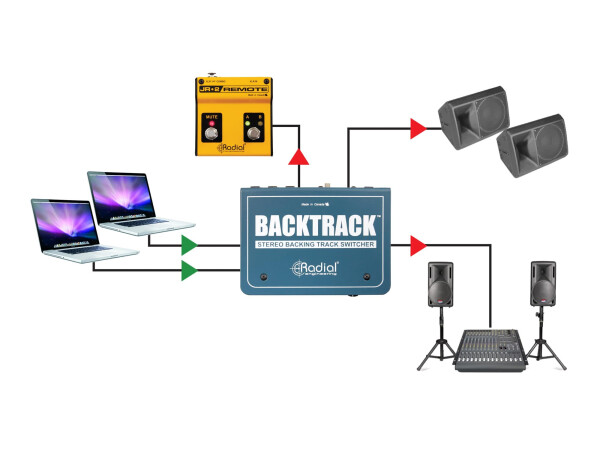

• JR-2 input allows remote footswitch control
• Ground lift to eliminate buzz and hum
• Link ¼” output to connect multiple Backtracks
• Can be rack-mounted with SA series rack adaptor
Technical Specification
- Audio circuit type Active Preamplifier Circuit with digital to analog input conversion
- Number of channels 2
- Frequency response 20Hz - 20kHz (-0.5dB/+0.5dB)
- Dynamic range >+130dBu
- Total harmonic distortion 0.007% @ 0dBu, 1kHz
- Intermodulation Distortion 0.02% @ 0dBu, 1kHz
- Common Mode Rejection Ratio 34dBu @ 60Hz, 42dBu @ 3kHz
- Noise -105dBu
- Maximum Input >+25dBu
- Ground lift, Headphone
- Input Connectors 1/4" TRS, 3.5mm, RCA
- Output Connectors XLR, 1/4" TRS
- Extras Headphone output
- Construction 14-gauge steel chassis
- Size (L x W x D) 4.6" x 5.9" x 1.9" (11.7 x 15 x 4.8cm)
- Weight 2.2 lb (1kg)
- Shipping size (L x W x D) 11.7" x 4.75" x 2.5" (29.7 x 12 x 6.4cm)
- Shipping weight 3.25 lb (1.5kg)
- Power 15VDC 100mA
- Conditions For use in dry locations only between 5°C and 40°C
