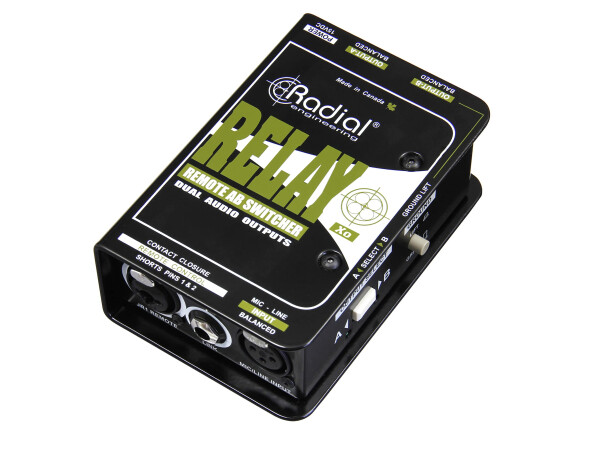

Radial Engineering Relay Xo - Active Balanced Remote Output Switcher
SKU: R800-8030-00
UPC: 676101041312
Be the first to write a review!
Out of Stock - Available to Order
The Relay Xo is an audio switcher designed to route balanced mic or line-level signals between two separate destinations, with the ability to be operated remotely with an optional JR-1 footswitch.

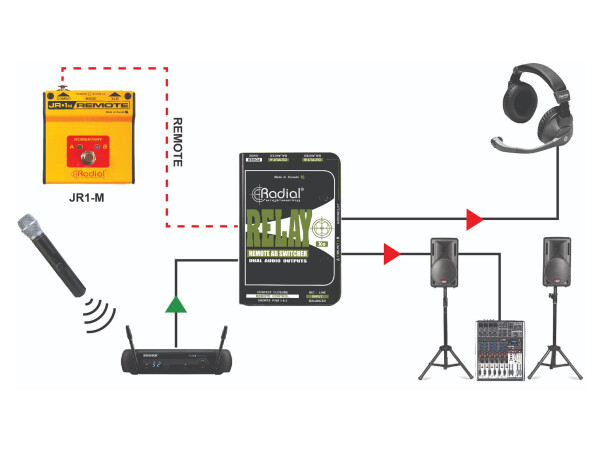

Designed to address on-stage communication problems for artists who employ in-ear monitoring systems, the Relay Xo is a remotely controlled active switcher that enables artists on stage to quickly reroute their signal without disrupting the performance. Connect the output of a dynamic microphone or wireless receiver to the Relay Xo input, then feed output-A to the PA system, and output-B to a common intercom buss. As soon as the Relay Xo is switched, it cuts the signal feeding the PA and redirects it to the monitoring system, allowing the musician to discreetly speak with other band members or the crew.
When artists that employ wireless microphones on tour, the receivers are typically located off stage. The remote input on the Relay Xo allows it to be connected next to the wireless receivers to reduce cable clutter, while still providing control to the artist on stage with a remote footswitch. Two versions of the Radial JR1 footswitch are available for use with the Relay Xo; the JR1-M with a momentary switch that will activate output-B as long as the footswitch is held down, and the JR1-L with a latching switch that will hold on the last selected output.
Features:
• Balanced input with A and B outputs
• 100% passive with sealed relay switching
• On-board and remote switching
• Units may be linked for stereo switching
Applications:
• Press-to-talk on-stage communication system

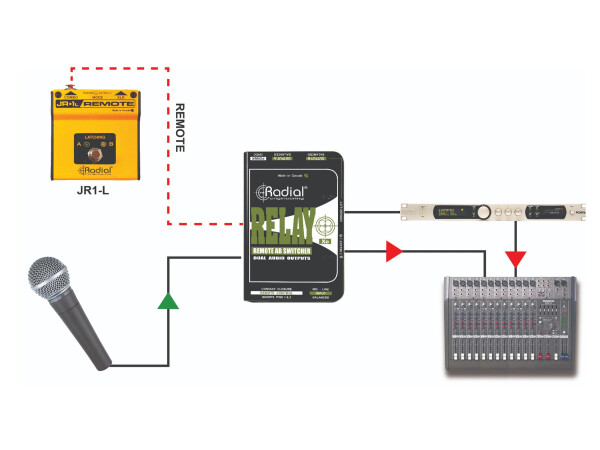

• Switch a mic between two mixer channels

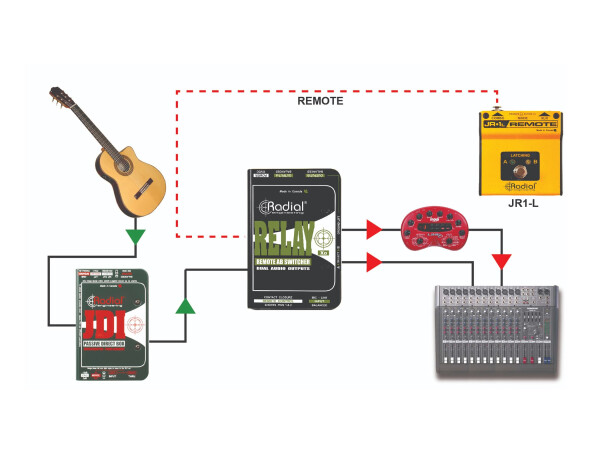

• Select between two effect processors
• Toggle a signal between two audio destinations
Cool stuff:
• Helps deliver a more professional show
• Works with any balanced audio signal
• Choice of latching or momentary remote footswitch
• Built ‘Radial Rugged’ for pro use
Technical Specification
- Audio circuit type Remotely controlled mechanical relay
- Frequency response 10Hz ~ 100kHz
- Dynamic range >140dB
- Gain 0dB
- Total harmonic distortion <0.0005%
- Intermodulation Distortion 0.00%
- Input Impedance Source dependent
- Output Impedance Source dependent
- Common Mode Rejection Ratio -106dB
- Noise -115dBu
- Maximum Input +26dBu
- Ground lift

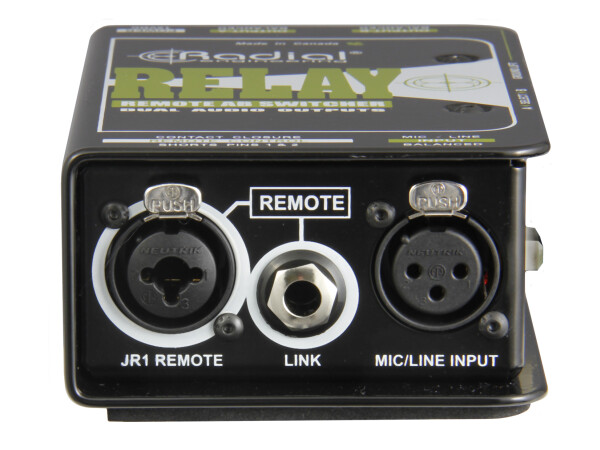

- Input Connectors XLR-F input

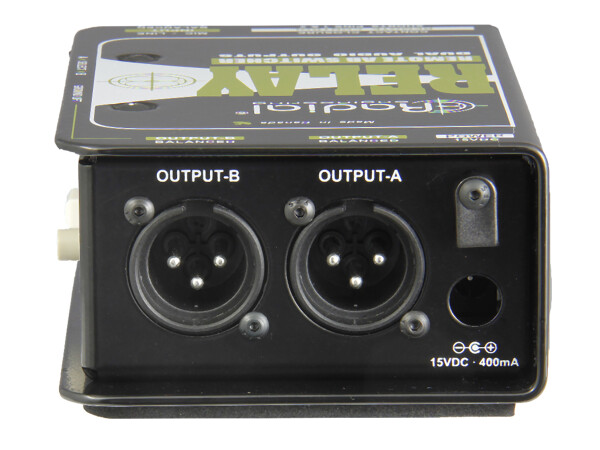

- Output Connectors 2 XLR-M outputs
- Extras Combo (XLR-F & ¼" ) and ¼" loop-through remote connectors; Contact Closure Function: With ¼" TRS jack, short tip and ground to switch With XLR, short pin-1 ground and pin-2 Hot to switch
- Construction 14 gauge steel with internal I-beam
- Size (L x W x D) 5" x 3.3" x 1.8" (127mm x 84mm x 45.5mm)
- Weight 1.4 lbs (0.6kg)
- Shipping size (L x W x D) 6.5" x 4" x 3" (165mm x 102mm x 76mm)
- Shipping weight 2.4lbs (1.08 kg)
- Power 15VDC, 30mA, center-pin (+)
- Conditions For use in dry locations only between 5°C and 40°C
