Radial Engineering X-Amp - Active Reamper
SKU: R800-1028-00
UPC: 676101034901
Be the first to write a review!
Available - Item in Stock

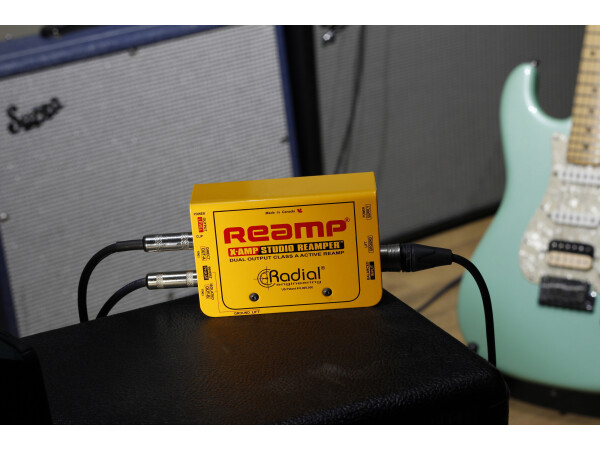

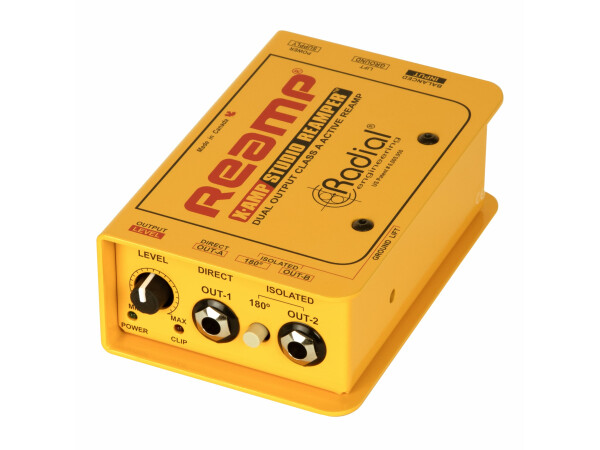

The Radial X-Amp™ is an active Reamper™ that allows the engineer to play a pre-recorded track back through guitar amplifiers and pedals. This opens the door to new possibilities and enhances the creative process so that your recording stands out.
Following the critically acclaimed Radial JD7™ Injector, the X-Amp employs a unique class-A circuit design that has been optimized for use with guitars. Features include balanced line level input with LED peak indicator and level control, class-A circuit topology for optimal reach and frequency response, a transformer isolated output to eliminate hum and buzz caused by ground loops, a 180° polarity reverse switch to bring both amps into phase, and a dual ground lift switch for noise-free operation.
Features:

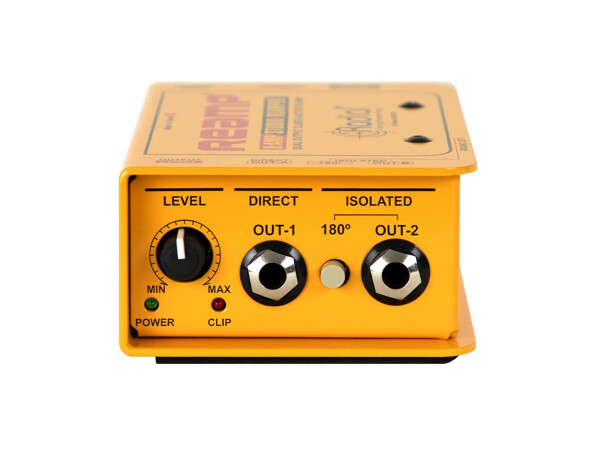

• 100% Class-A circuit yields amazing clarity
• Overload LED helps monitor input levels

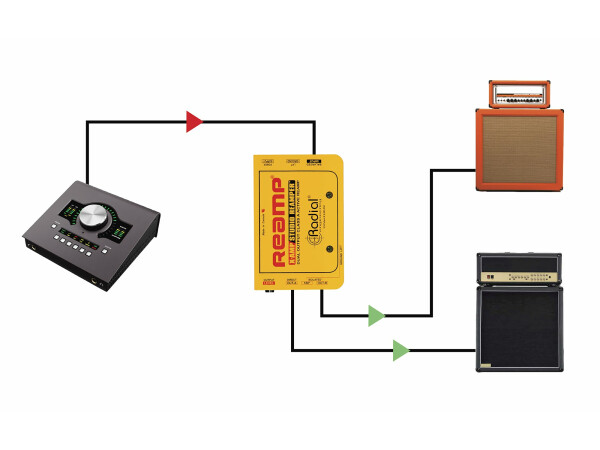

• Dual outputs drive two amps or pedal chains
• Polarity reverse corrects phase between amps
• Out-2 is transformer-isolated to eliminate ground loops
• Active level control to set perfect levels for your amp
Applications:
• Line-level to instrument level conversion

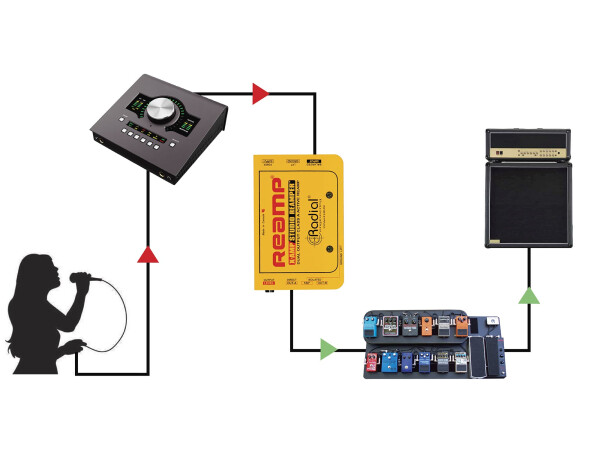

• Interfaces recording gear with amps & pedals
• Re-amp your way to fat sounding tracks
• Use during basic tracks, over-dubs and mixing
Cool Stuff:
• Active design reproduces original performance
• Tweak amp and pedal sound AFTER recording
• Reduces player fatigue and repetition
• Amplify acoustic instrument without feedback
• Run 2 amps without hum or buzz
Technical Specification
- Audio circuit type 100% discrete class-A
- Frequency response 20Hz ~ 15kHz (± 1.0dB)
- Dynamic range 119dB
- Total harmonic distortion 0.02% @ -15dBu
- Intermodulation Distortion 0.02% @ -20dBu
- Input Impedance 600Ω
- Noise OUT-1 -110dB; OUT-2 -108dBu
- Maximum Input +22dBu
- Features 180° polarity reverse, Ground lift, Level Control
- Input Connectors XLR
- Output Connectors 1/4" Isolated and Direct
- Construction 14 gauge steel chassis & outer shell
- Size (L x W x D) 3.3" x 5.0" x 2" (84 x 127 x 48mm)
- Weight 1.55lb (720g)
- Shipping size (L x W x D) 5" x 2.75" x 10.75" (127 x 70 x 273mm)
- Shipping weight 2.6lb (1.18kg)
- Power +15VDC/400mA adapter included
