Radial Engineering JDX Direct-Drive - Amp Simulator and DI Box
SKU: R800-1404-00
UPC: 676101044160
Be the first to write a review!
Available - Item in Stock

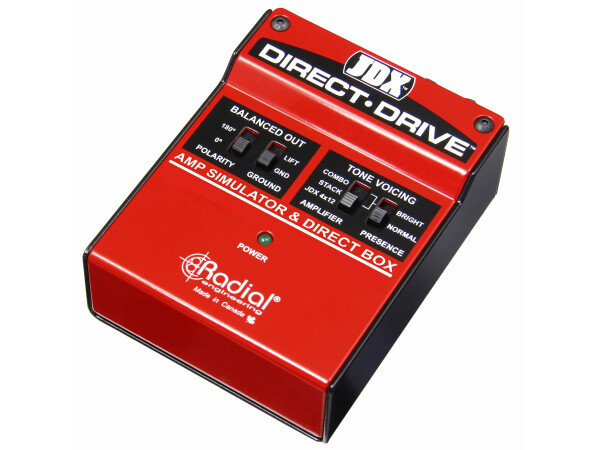

The JDX Direct-Drive is a unique and powerful device that emulates the sound of a guitar amplifier while doubling as a direct box, providing a realistic amp sound that allows you to play a gig without needing an amp on stage.
The Direct-Drive is an amp simulator designed for your pedalboard, providing a realistic amp tone that can be connected directly to the PA system. Three amplifier voicing options are provided: the first is the popular JDX tone which simulates the sound of an dynamic microphone on a 4x12 cabinet. The second setting is similar in character to a British tube head amplifier, while the remaining tone is modeled after a clean twin combo amp. With three classic voicings available, the Direct-Drive provides a natural amp tone through the PA system and consistency from night to night.
Features:
• Amp simulation filters with balanced output
• Three amp EQ curves plus bright switch
• Multiple ¼” jacks for plenty of connectivity
• Compact – runs on 9 volts for pedalboards
Benefits:
• Eliminates the need for having an amp on stage
• Eliminates bleed from affecting stage mics
• Lets you record quietly using your favorite pedals
• Can be tailored to sound like three different amps
Cool Stuff:
• Perfect for small venue gigs

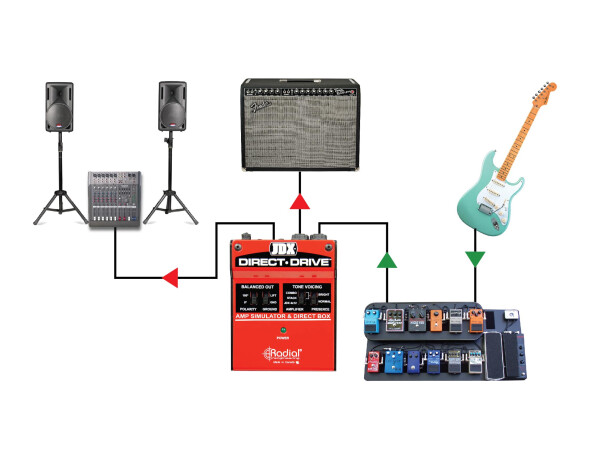

• Combine with your stage amp for extra tone
• 0ms delay to wedge monitors and in-ears!
• Can use all three outputs at once
Technical Specification
- Audio circuit type Class-A BiFET input buffer with electronic frequency shaping circuitry
- Frequency response Shaped for guitar use
- Dynamic range 83dB to 100dB
- Clip Level > +5dBu
- Intermodulation Distortion >0.1 @ -15dBu Out
- Output Impedance 600 Ohms (XLR) 100 Ohms (1/4")
- Noise -78dBU
- Maximum Input > +5dBu
- Features 180° polarity reverse, Ground lift, Speaker filter

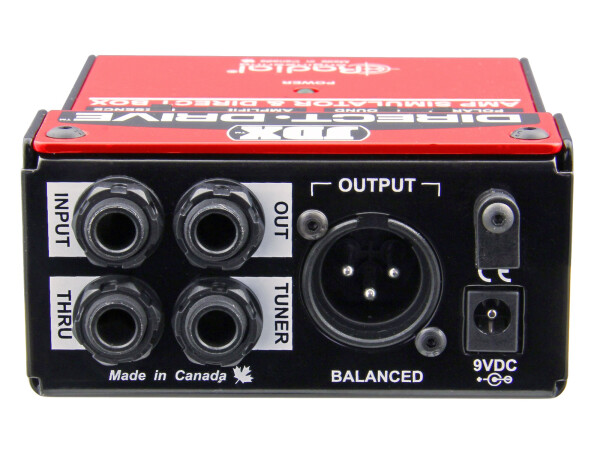

- Input Connectors 1/4"
- Output Connectors 1/4" thru and amp tone output, XLR
- Extras Always on Tuner Output
- Construction 14-gauge steel chassis and outer shell
- Size (L x W x D) 4.75" x 3.625" x 2" (121 x 92 x 51mm)
- Shipping weight 1.6 lbs. (.7 kg)
- Power 40mA, 9VDC (center pin negative)
- Conditions For use in dry locations only between 5°C and 40°C
- Warranty Radial 3-year, transferable
