Radial Engineering Presenter - Audio Presentation Mixer and USB Interface
SKU: R800-8011-00
UPC: 676101044610
Be the first to write a review!
Out of Stock - Available to Order

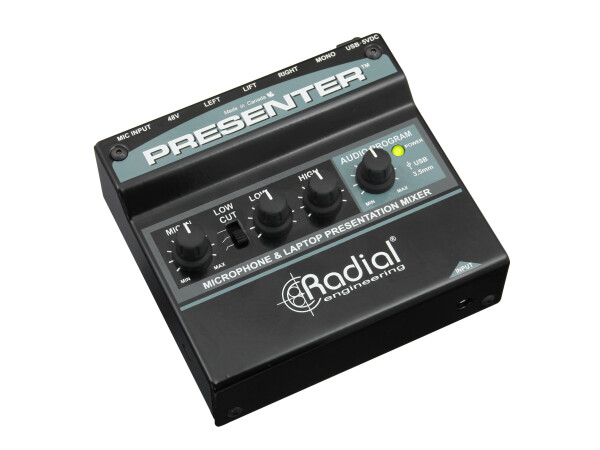

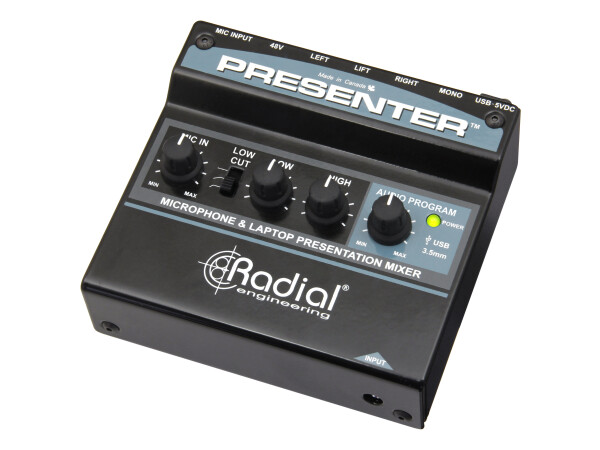

The Presenter is a compact mixer that combines a microphone preamp and a USB program input to create the ultimate interface for any presentation, from school lectures to corporate audio.
The Presenter replaces typical audio mixers that include numerous complicated controls and knobs that rarely get used, instead opting for a simplified and intuitive layout that allows anyone to operate it and achieve high quality sound with minimal effort. An XLR mic input allows you to connect a podium microphone and provide it with phantom power. The mic signal can then be adjusted using three powerful EQ controls to tailor the frequency response. A Program input level controls the volume of the USB input or the 3.5mm jack on the front of the unit, which allows you to connect the outputs of your laptop, smartphone, or MP3 player and blend it with the signal from the microphone. XLR outputs provide balanced feeds for a set of powered speakers, making it an all-in-one portable solution for any speaking engagement.
Features:
• XLR mic input with phantom power

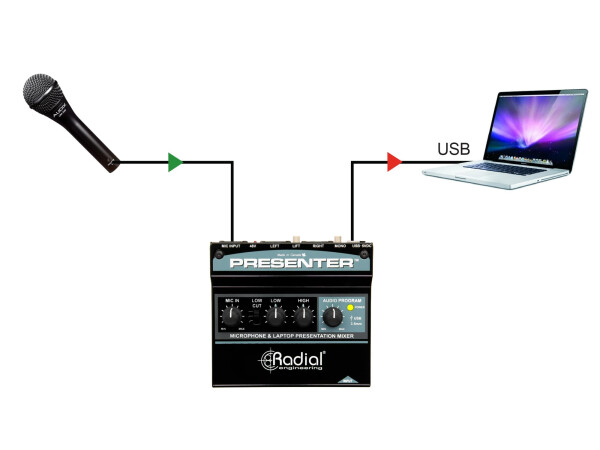

• USB input to connect to a laptop computer

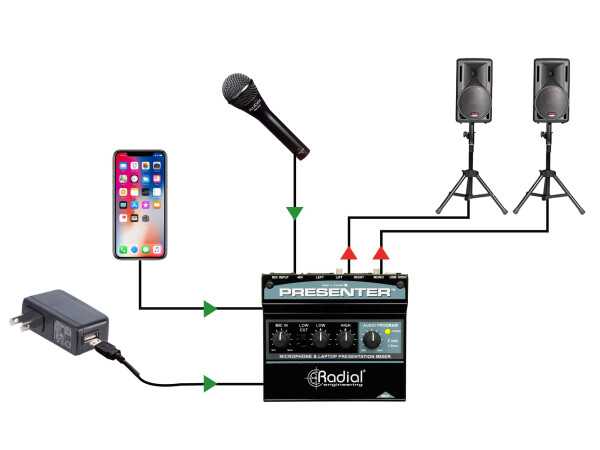

• 3.5mm TRS jack for the output of a phone
• Stereo XLR outputs to feed powered speakers
Applications:

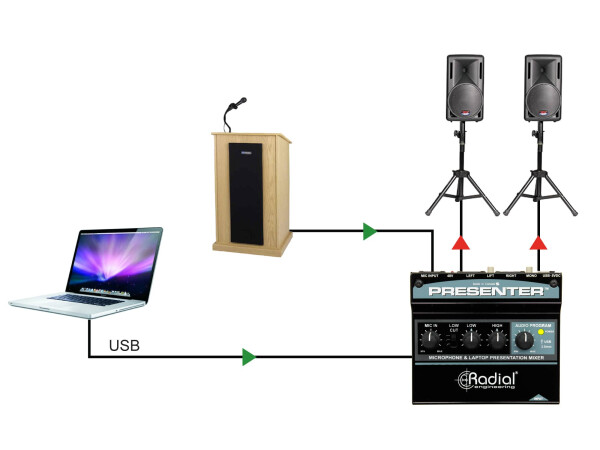

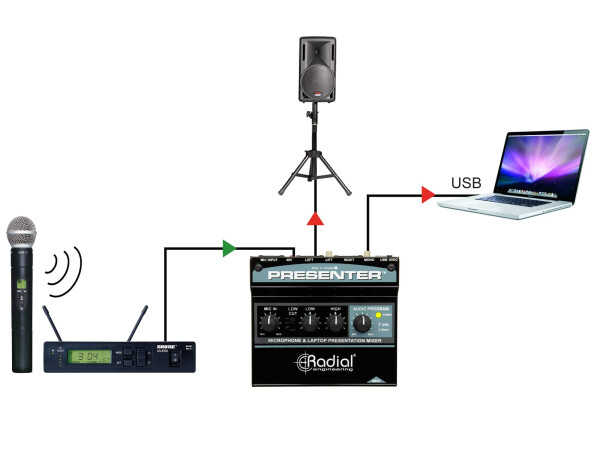

• Combine a microphone and laptop audio for any presentation
• Intuitive EQ and level controls for easy operation
• Eliminates complicated mixers & simplifies setup
Extras:
• Low and High EQ controls for microphone
• Low Cut switch reduces low-end rumble
• Kensington slot to prevent theft
• Ground lift to eliminate buzz and hum
Technical Specification
- Audio circuit type Active Preamplifier Circuit with digital to analog input conversion
- Number of channels 2
- Frequency response 20Hz to 20kHz (-0.4dB/0dB)
- Dynamic range +91dBu
- Gain +52dBu
- Total harmonic distortion 0.004% @20Hz, 0.004% @1kHz, 0.004% @10kHz
- Intermodulation Distortion 0.003% @0dBu, 0.01% @ -10dBu, 0.03% @-20dBu
- Phase Deviation -28° @ 20Hz, -1° @ 1kHz, +2° @ 10kHz
- Input Impedance 10kΩ
- Output Impedance 2.74kΩ
- Noise -84dBu
- Maximum Input +7dBu

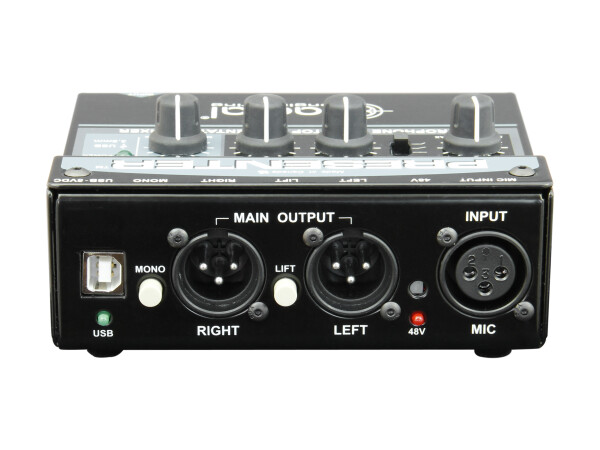

- Input Connectors XLR, 3.5mm, USB 2.0 type B
- Output Connectors XLR
- Construction 14-gauge steel chassis
- Power 5V USB
- Conditions For use in dry locations only between 5°C and 40°C
