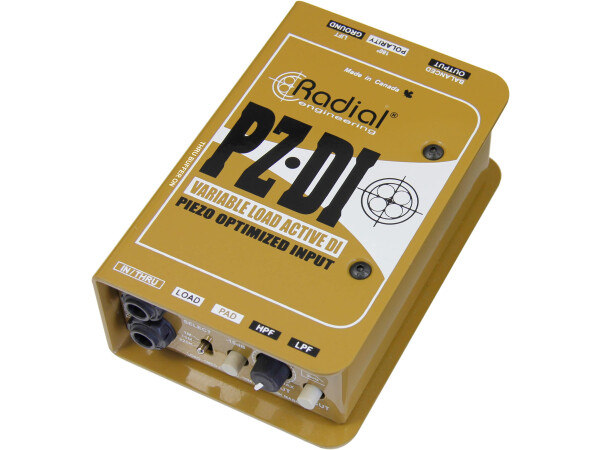

Radial Engineering PZ-DI - Orchestral Instrument Piezo Optimised DI
SKU: R800-3005-00
UPC: 676101040506
Be the first to write a review!
Available - Item in Stock
The Radial Engineering PZ-DI is a premium active direct injection (DI) box engineered specifically for acoustic instruments, orchestral setups, and piezo-equipped pickups. Designed to solve common impedance-matching issues, it delivers a clean, natural, and highly detailed signal to mixing consoles and audio interfaces in both live and studio environments.

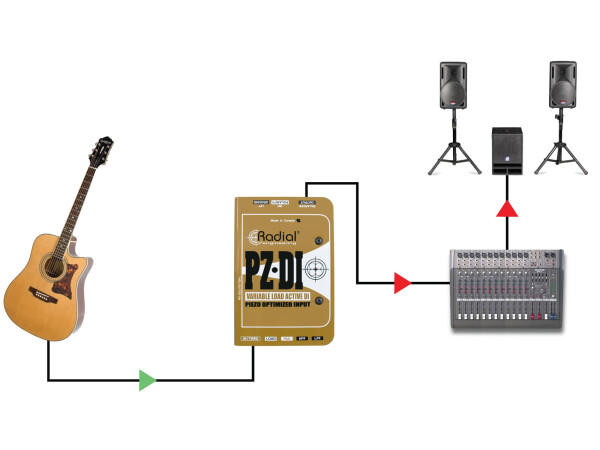

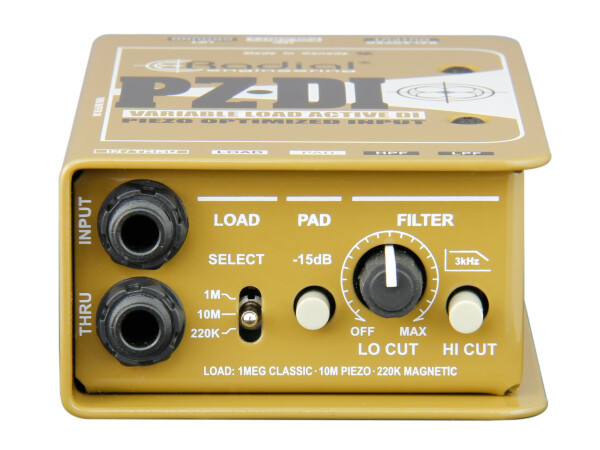

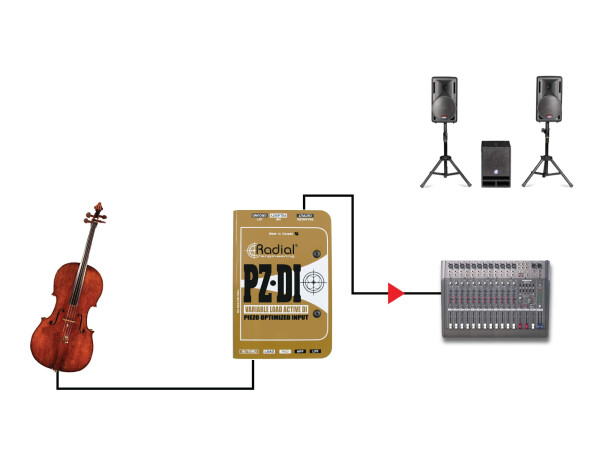

At its core, the PZ-DI features a selectable input impedance system (220kΩ, 1MΩ, and 10MΩ), allowing musicians and engineers to perfectly match the load to magnetic pickups, standard active sources, or sensitive piezo transducers. This ensures optimal tone clarity, improved low-end response, and reduced harshness—especially critical for acoustic guitars, violins, cellos, and other orchestral instruments.
A fully variable low-cut (high-pass) filter (approx. 5Hz–500Hz) enables precise control over unwanted resonance and stage rumble, helping “size” the instrument within a live mix. A complementary high-cut function smooths overly bright or brittle high frequencies often produced by active onboard preamps or piezo systems.

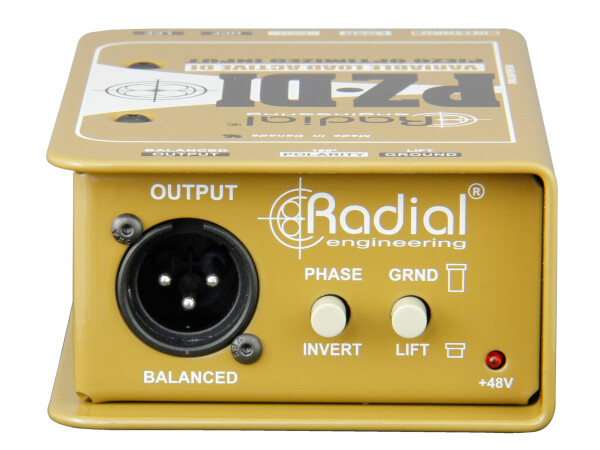

Built around a low-noise FET-based analog circuit, the PZ-DI offers exceptional headroom and ultra-low distortion (0.02%), powered entirely by 48V phantom power—eliminating the need for batteries. Additional professional-grade features include a -15dB pad, polarity reverse, ground lift, and a buffered thru output for simultaneous amplifier feeding.
Compact, rugged, and road-ready, the PZ-DI is widely regarded as a problem-solving tool for engineers and touring musicians who demand consistent, studio-quality tone from acoustic and hybrid instruments on stage.
Key Features
• Selectable input impedance: 220kΩ / 1MΩ / 10MΩ
• Optimised for piezo, acoustic, and orchestral instruments
• Variable low-cut filter (5Hz–500Hz) for resonance control
• High-cut filtering for smoothing harsh top-end frequencies
• 48V phantom powered (no batteries required)
• Ultra-low distortion and high headroom analog circuit
• -15dB pad, polarity reverse, and ground lift switches

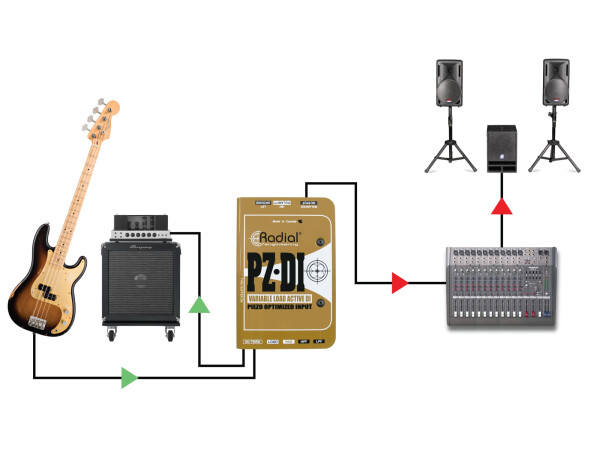

• Buffered thru output for amplifier integration
Technical Specification
- Audio circuit type Proprietary analog circuit with low-noise FET op-amp
- Frequency response 20Hz ~ 20kHz
- Dynamic range 105dB
- Gain +4.6dB
- Total harmonic distortion 0.02%
- Input Impedance 10M/1M/220K-Ohms
- Output Impedance 200 Ohms - nominal
- Equivalent Input Noise -98dBu
- Input pad
- Input Connectors 1/4" hi-Z input
- Output Connectors XLR male output
- Construction 48V phantom - proprietary digital switching
- Weight 1.2lb (0.54kg)
- Shipping size (L x W x D) 127 x 84 x 48mm (5.0" x 3.3" x 2")
- Power 48V phantom - proprietary digital switching
- Conditions For use in dry locations only between 5°C and 40°C
