Radial Engineering HotShot ABo - Balanced Output Footswitch Selector
SKU: R800-1509-00
UPC: 676101036455
Be the first to write a review!
Available - Item in Stock
The HotShot ABo is a latching footswitch that will take a balanced input on stage and switch it between two different destinations, without requiring any power to operate.

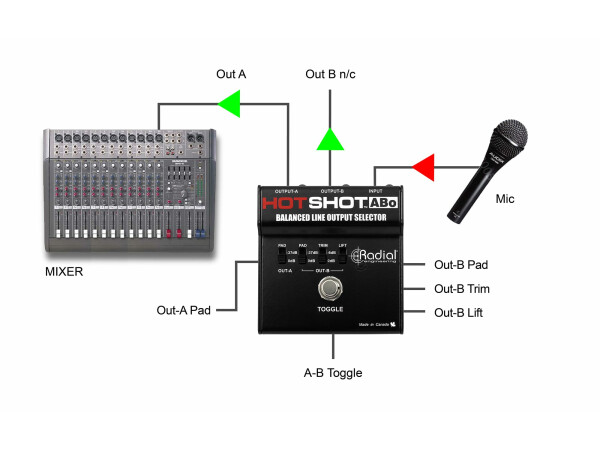

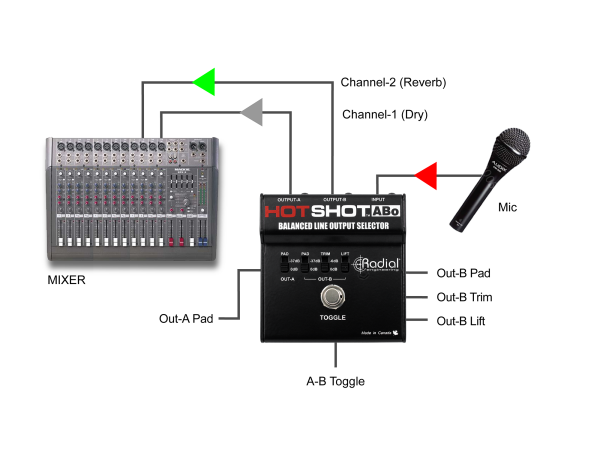

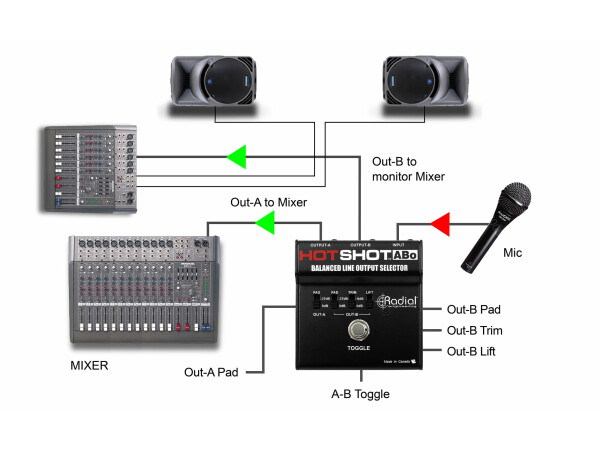

The Hotshot ABo takes a balanced XLR input and provides the ability to switch the signal between two destinations using a passive footswitch on stage. This makes it ideal for a variety of applications, including driving two channels on a mixing console for dry and wet effects routing, diverting a dynamic mic from the PA system to the monitors or an intercom system, or for temporarily muting the signal when coughing. The ABo uses a latching footswitch, so it will stay on the last output selected until you hit the footswitch again.
Features:
• 100% passive - does not require power
• Built-in pad for high output sources
• Built-in trim to balance output levels
• Durable 14 gauge steel construction
• Heavy duty latching toggle switch
Applications:
• Toggle a balanced source between two destinations
• Send vocal mic to two channels on a mixer
• Mutes a signal such as talk-back mic
• Diverts a signal from one place to another
Cool Factors:
• ‘Plug-&-play’ easy-to-use!
• Ultra compact – fits anywhere
• Various level controls on board
• Heavy duty 14 gauge steel construction
Technical Specification
- Audio circuit type Passive, true-bypass
- Frequency response 20Hz ~ 20kHz
- Dynamic range Unlimited
- Input pad, Ground lift

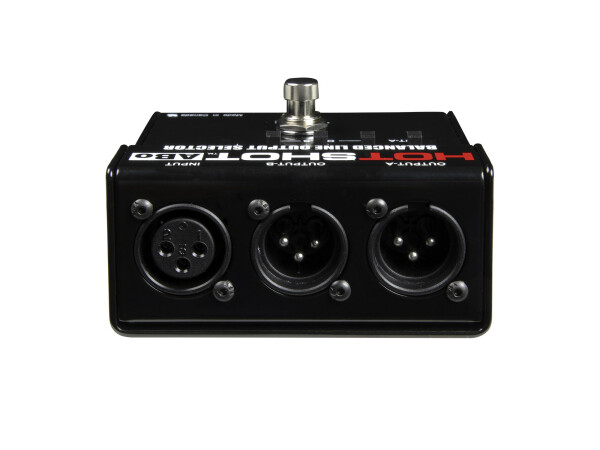

- Input Connectors One XLR input
- Output Connectors Two XLR outputs
- Construction 14-Gauge Steel
- Size (L x W x D) 3.9" x 3.6" x 2" (99 x 92 x 51mm)
- Weight 1.25 lb (0.56 kg)
- Conditions For use in dry locations only between 5°C and 40°C
