Radial Engineering HotShot ABi - Balanced Footswitch Input Selector
SKU: R800-1508-00
UPC: 676101036356
Be the first to write a review!
Available - Item in Stock
The HotShot ABi is a balanced signal selector that allows you to instantly select between two sources by depressing a latching footswitch.
The HotShot ABi makes it easy to select between two balanced inputs on stage, with a single latching footswitch to toggle from one source to the other. This allows an artist to switch between two dynamic microphones during a performance, freeing up input channels on your mixer. The latching footswitch also opens the door for other useful applications, including using the ABi as a mute to turn off a microphone, select between two wireless receivers, or switch between two mono playback devices.
Features:
• 100% passive - does not require power
• Built-in pad for high output sources
• Built-in trim to balance input levels
• Durable 14 gauge steel construction
• Heavy duty latching toggle switch
Applications:

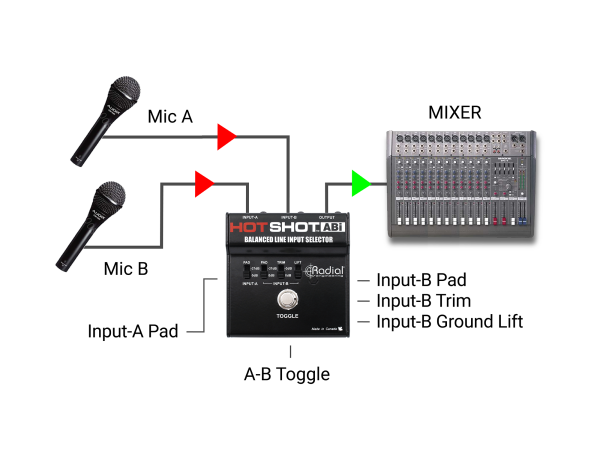

• Toggle between two microphones using one channel
• Use live to select between two instruments with DIs

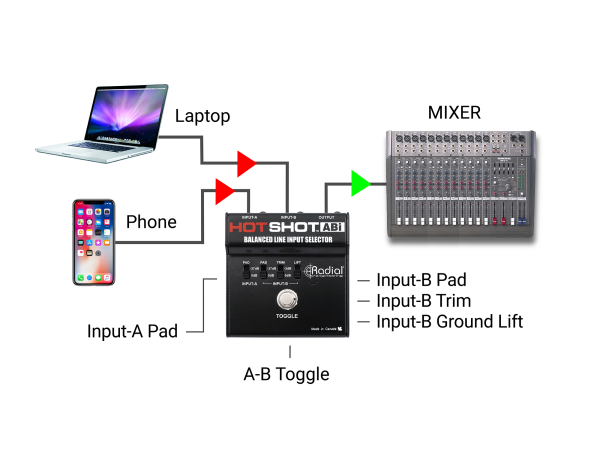

• Select between two balanced audio tracks

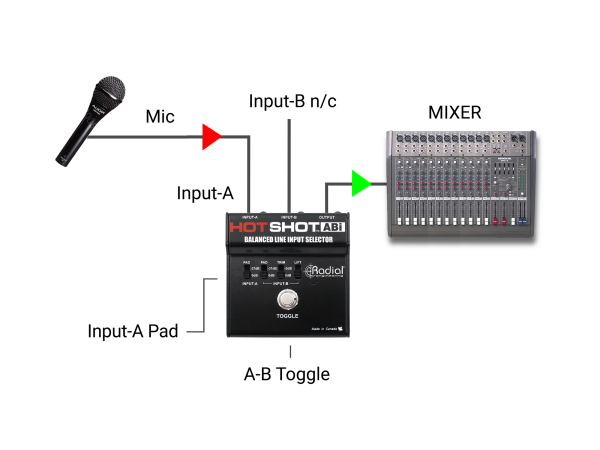

• Mutes a signal such as talk-back mic
Cool Stuff:
• Plug & play easy to use
• Ultra compact – fits anywhere
• Various level controls on board
• Control PA and mics while performing live
Technical Specification
- Audio circuit type Passive, true-bypass
- Frequency response 20Hz ~ 20kHz
- Dynamic range Unlimited
- Input pad, Ground lift

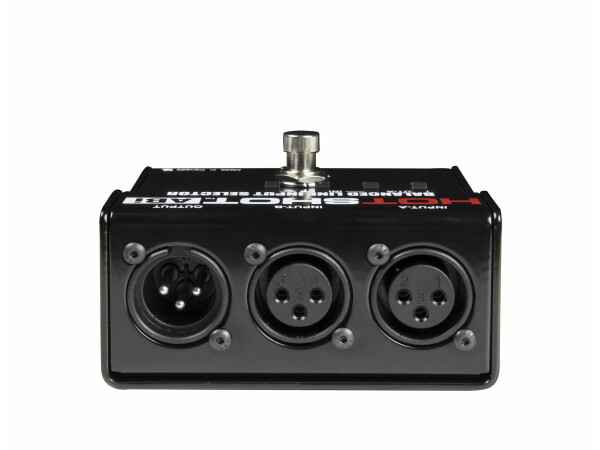

- Input Connectors Two XLR inputs
- Output Connectors One XLR output
- Construction 14-Gauge Steel
- Size (L x W x D) 3.9" x 3.6" x 2" (99 x 92 x 51mm)
- Weight 1.25 lb (0.56 kg)
- Conditions For use in dry locations only between 5°C and 40°C
