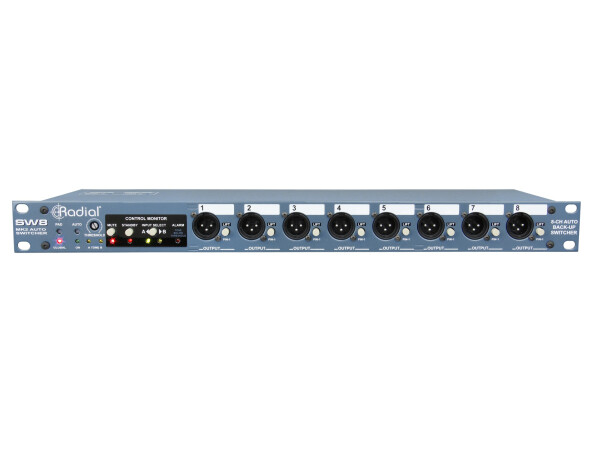

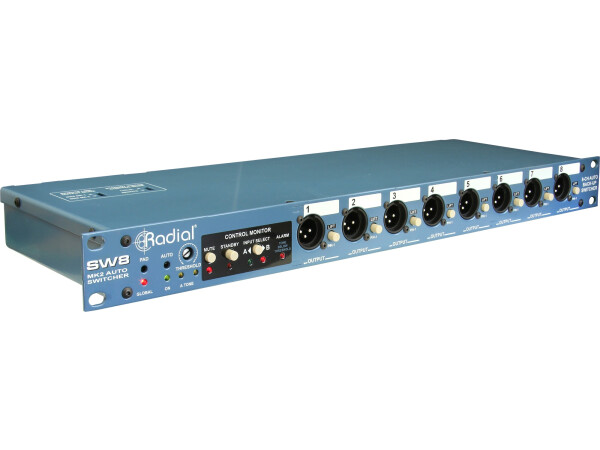

Radial Engineering SW8 - 8-Channel Auto Switcher
SKU: R800-8100-00
UPC: 676101037803
Be the first to write a review!
Available - Item in Stock

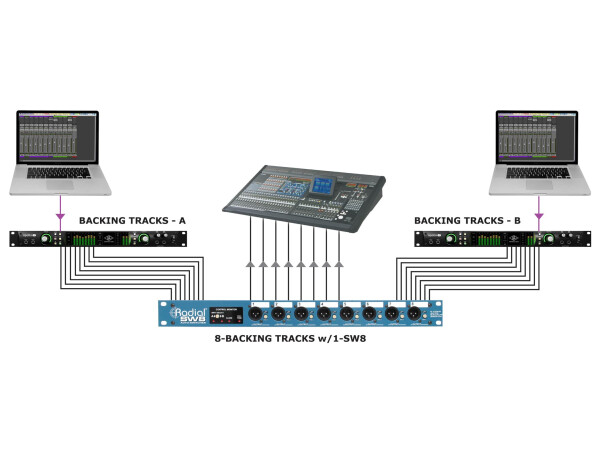

The Radial SW8 is an 8-channel automatic audio switcher designed for professional live performance environments that use multitrack playback systems. It provides seamless redundancy between a primary and backup playback device, ensuring uninterrupted audio if a failure occurs during a live show.
Engineered for touring, theatre, and broadcast applications, the SW8 continuously monitors a reference signal from the main playback system. If a dropout or fault is detected, it automatically switches to the backup system in real time, allowing performances to continue without interruption. Switching can also be controlled manually or remotely for flexible system control.
The SW8 supports a wide range of professional audio setups with both line-level and transformer-isolated mic-level outputs. Its flexible connectivity makes it suitable for integration with mixing consoles, stage snakes, and large-scale touring rigs. Multiple units can also be linked together for expanded channel counts in larger productions.

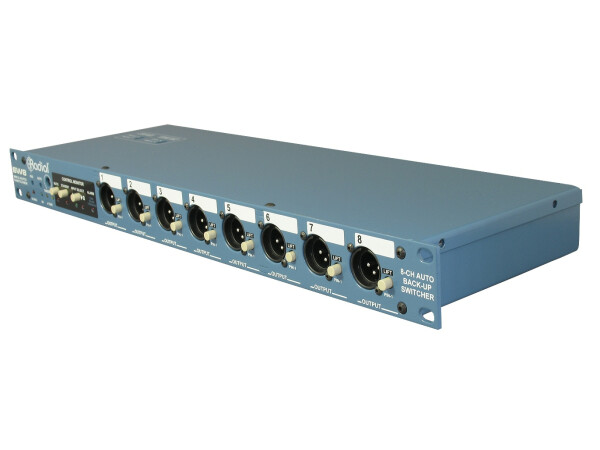

Built into a rugged 19” rackmount steel chassis, the SW8 is designed for demanding touring environments where reliability is essential and downtime is not an option.
Key features
• 8-channel automatic audio switcher for redundant playback systems
• Seamless switching between primary and backup multitrack devices
• Automatic, manual, or remote-controlled operation
• Line-level and transformer-isolated mic-level outputs
• Designed for live concerts, theatre, and broadcast playback systems

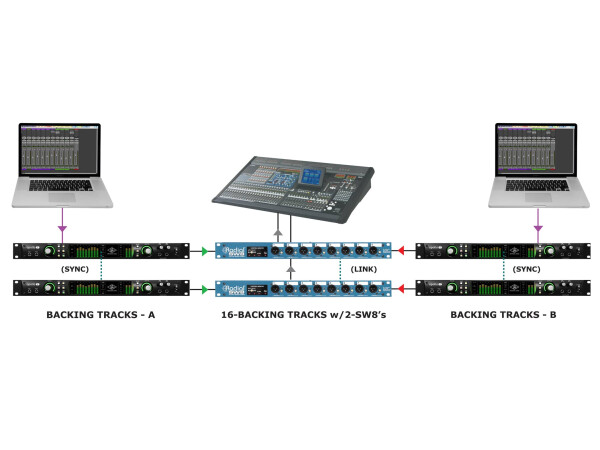

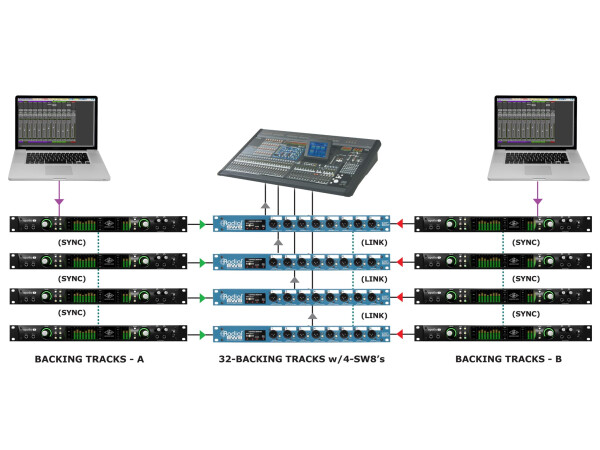

• Linkable design for expanded 16, 24, or 32-channel systems
• Rugged 1U 19” rackmount steel construction
• Built for mission-critical touring reliability
Technical Specification
- Audio circuit type Passive signal path with active relay switching

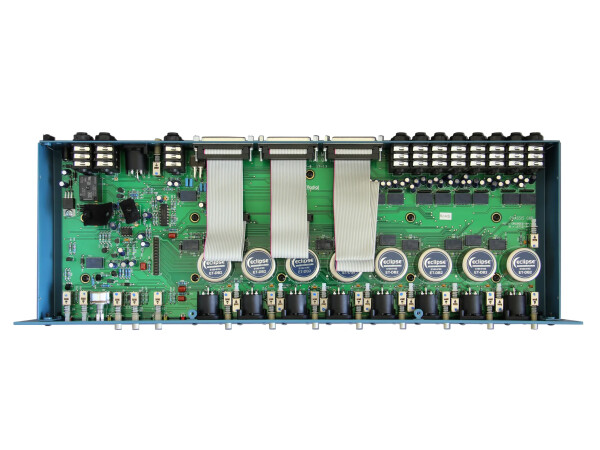

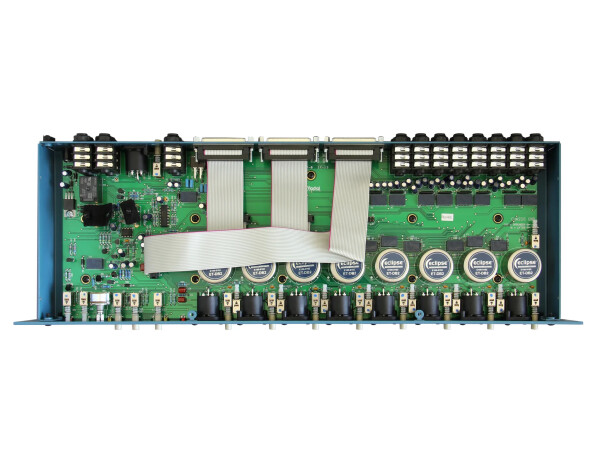

- Transformer Eclipse ET-DB2
- Number of channels 8
- Frequency response 20Hz ~ 20KHz
- Dynamic range >120dB
- Gain -20dB
- Total harmonic distortion 0.00%
- Intermodulation Distortion >0.002%
- Phase Deviation -2° @ 20Hz
- Input Impedance 140k Ohms, balanced
- Output Impedance 150 Ohms, balanced
- Common Mode Rejection Ratio -112dB at 50/60Hz
- Equivalent Input Noise -95dBu
- Noise -115dBu
- Maximum Input 26dBu
- Input pad, Ground lift, Remote Footswitch

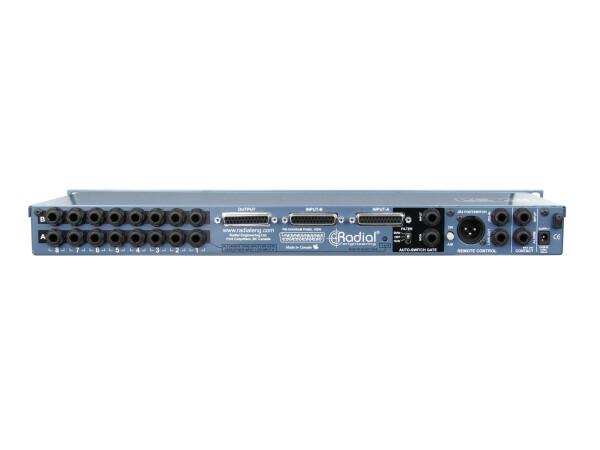

- Input Connectors 1/4" TRS, D-sub
- Output Connectors XLR, D-sub
- Extras Contact Alarm Input, JR-2 XLR
- Construction 14 gauge steel chassis & outer shell
- Size (L x W x D) 17.5" x 6" x 1.75" (44.5cm x 15.25cm x 4.5cm)
- Weight 9.2 lb (4.2kg)
- Shipping size (L x W x D) 22" x 10.375" x 4.5" (55.9cm x 26.4cm x 11.4cm)
- Shipping weight 9.7 lb (4.4 kg)
- Power Two +15VDC/400mA power supplies included
- Conditions For use in dry locations only between 5°C and 40°C
