Radial Engineering SGI-44 - Studio Guitar Signal Extender
SKU: R800-6700-00
UPC: 676101039456
Be the first to write a review!
Available - Item in Stock

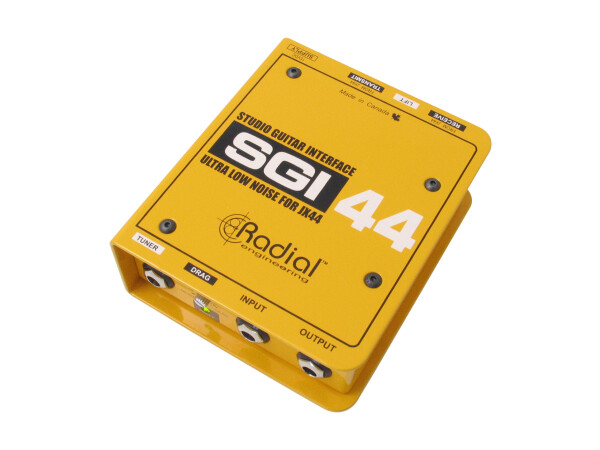

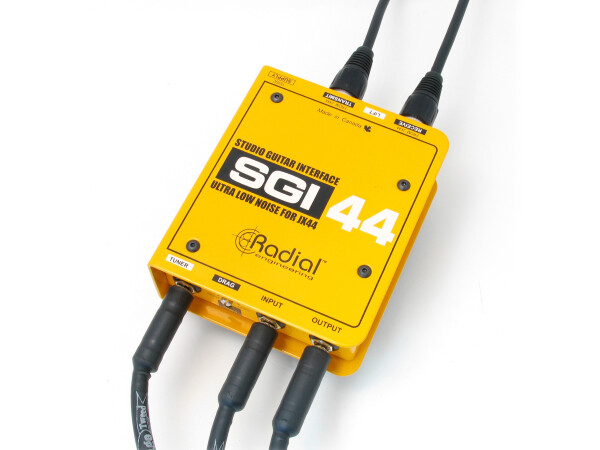

The SGI-44™ is a line driver for guitars and basses that connects to the JX-44 to allow a remote pedalboard to be connected without signal loss or noise.

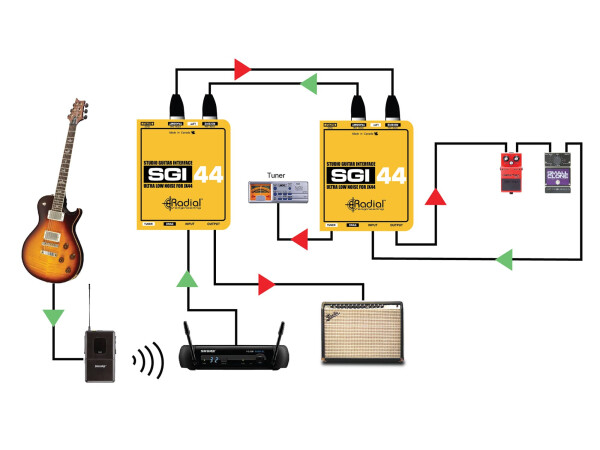

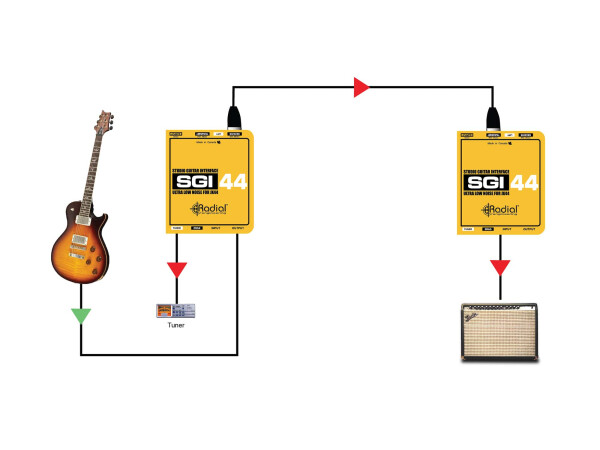

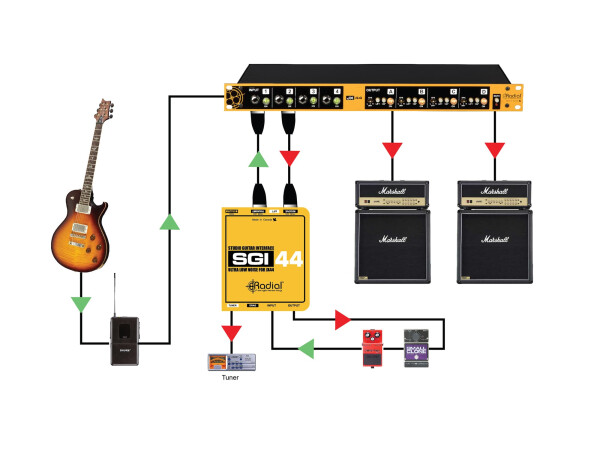

The SGI-44 can send guitar signals over long distances without signal loss or noise, with built-in send and receive functions for bidirectional signal routing. When used in conjunction with the JX-44 guitar and amp switcher, it allows you to keep your pedalboard at your feet on stage, while instrument switching and amp control is managed remotely by your stage tech. A pair of SGI-44s can also be used together to extend the effects loop of your amplifier to any point on stage, so you can keep your favorite pedals connected to the amp's effects loop no matter how far away your amp is located. The SGI-44 takes care of all the balancing, buffering, and impedance matching to ensure your signals are delivered without noise or distortion.
• Balanced line driver for JX-44 guitar & amp switcher
• Send signal over 100 meters (300ft) without loss
• 100% discrete class-A circuit with Drag control
• Bidirectional send & receive effects router
Technical Specification
- Audio circuit type Active 100% discrete class-A with transformer isolation
- Frequency response 20Hz ~ 20kHz (-2dB)
- Dynamic range 105dB
- Total harmonic distortion 0.005% @ 1k
- Intermodulation Distortion 0.02% @ 1k
- Input Impedance Variable from 10k Ohms ~ 1 megaOhm
- Output Impedance 218 Ohms (¼" unbal. output); 280 Ohms (TX bal. output)
- Noise -100dBu
- Maximum Input +2dBu

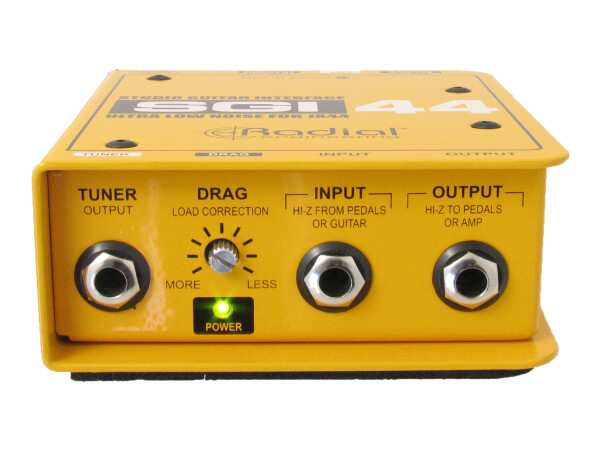

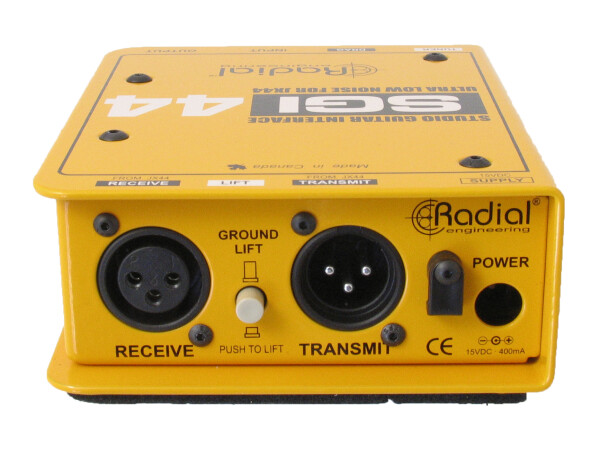

- Ground lift, Drag Control
- Input Connectors 1/4", XLR
- Output Connectors 1/4", XLR
- Construction 14-gauge steel chassis & outer shell
- Size (L x W x D) 4.25" x 2" x 5" (102 x 76 x 165mm)
- Weight 3lbs. (1.36kg)
- Shipping size (L x W x D) 5.25" x 2.5" x 11" ( 127 x 64 x 279mm)
- Shipping weight 3.1lbs (1.41kg)
- Power +15VDC/400mA adapter included
- Conditions For use in dry locations only between 5°C and 40°C
