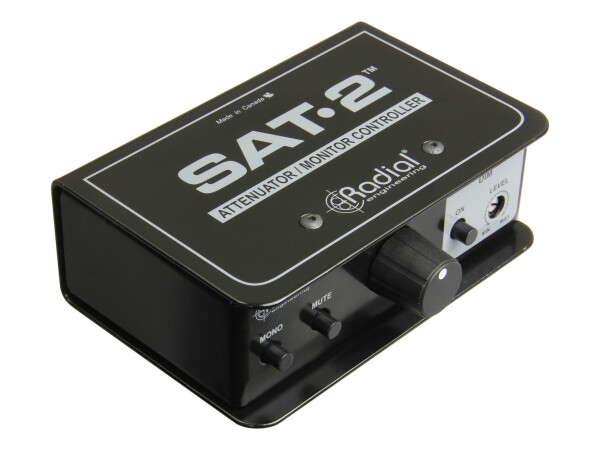

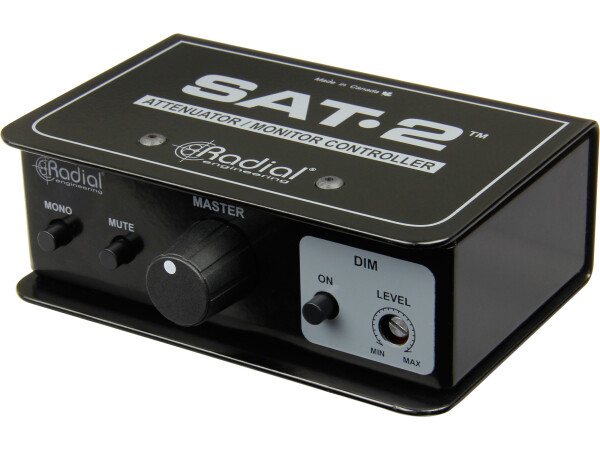

Radial Engineering SAT-2 - Passive Two-Channel Balanced Stereo Attenuator
SKU: R800-1035-00
UPC: 676101044641
Be the first to write a review!
Out of Stock - Available to Order
The SAT-2™ is a passive stereo audio device that provides you with a transparent level control wherever you may need it, either at the output of a pair of high-gain mic preamps, or between your recording interface and a pair of powered speakers as a compact desktop monitor controller.

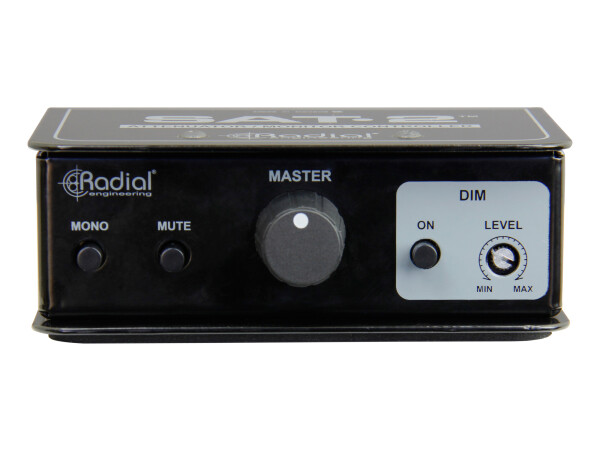

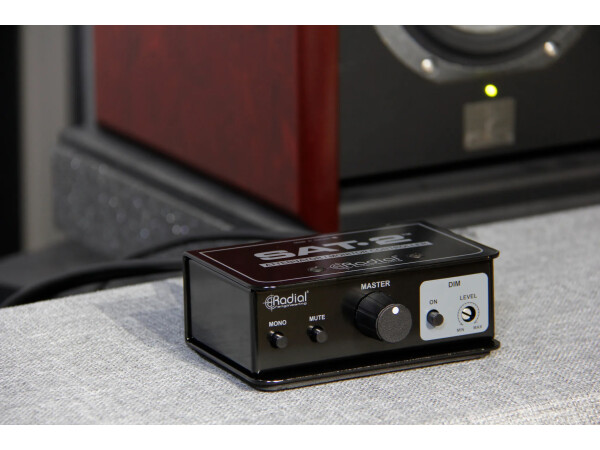

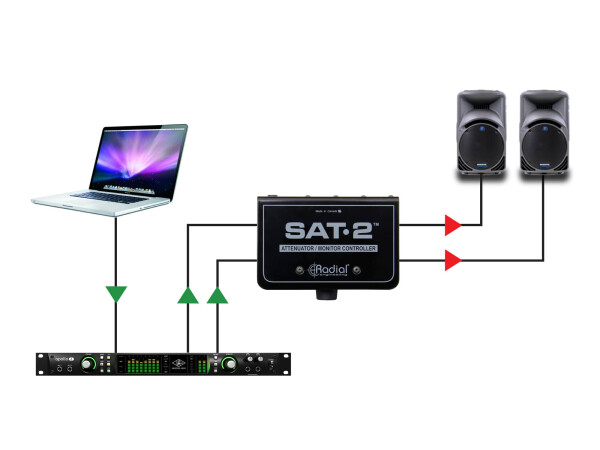

When using the SAT-2 as a monitor controller, simply connect it in between your playback device and a pair of powered speakers for an easy-access master volume control. Mute and mono switches allow you to silence the outputs or check mixes for mono phase compatibility, while a handy dim switch with adjustable level control allows you to temporarily lower the output volume without losing the main volume setting.

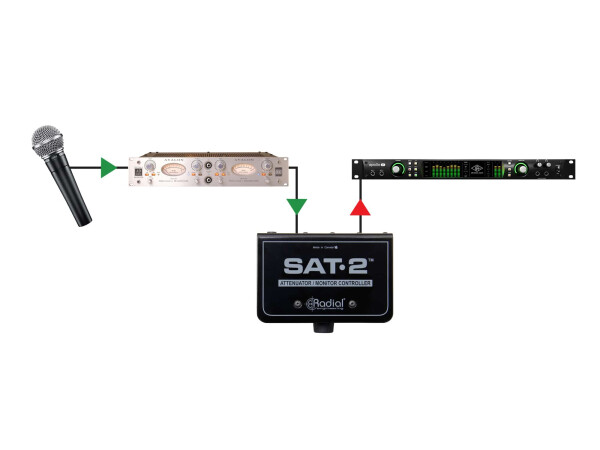

The SAT-2 can also be used to attenuate signals before sending them to your audio interface, so you can drive your mic preamps hard for coloration without clipping the inputs of the digital audio converter. A high quality 4-pole rotary knob ensures consistent L-R tracking over the entire range of the trim pot, fully maintaining the left-right balance of stereo sources.
Features:

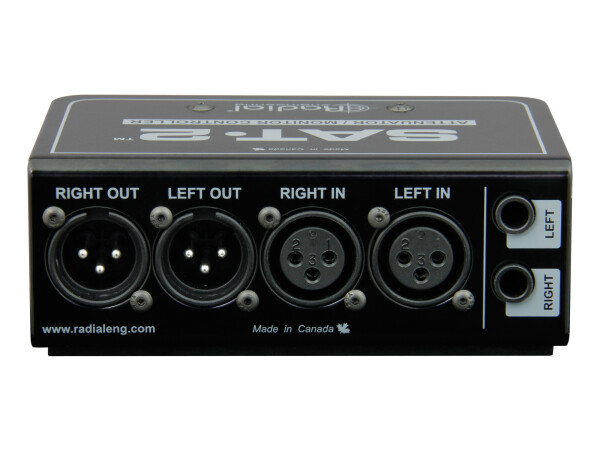

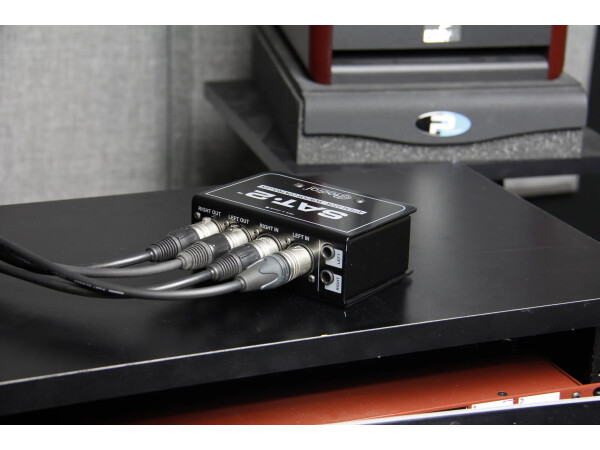

• ¼” TRS and XLR inputs
• Stereo XLR outputs
• Master level control
• Completely passive, no need for power
Applications:
• Compact studio monitor controller

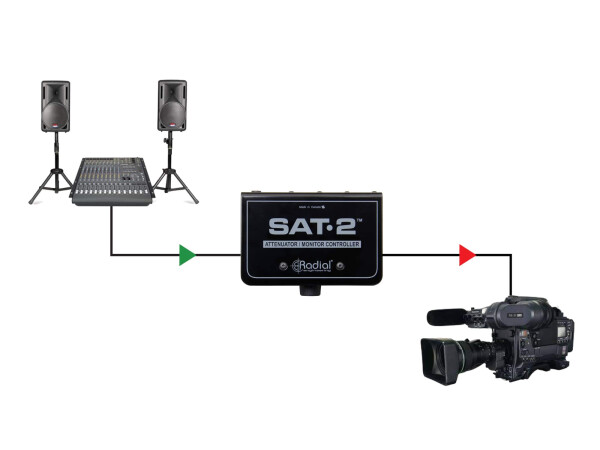

• Attenuate hot signals to prevent clipping

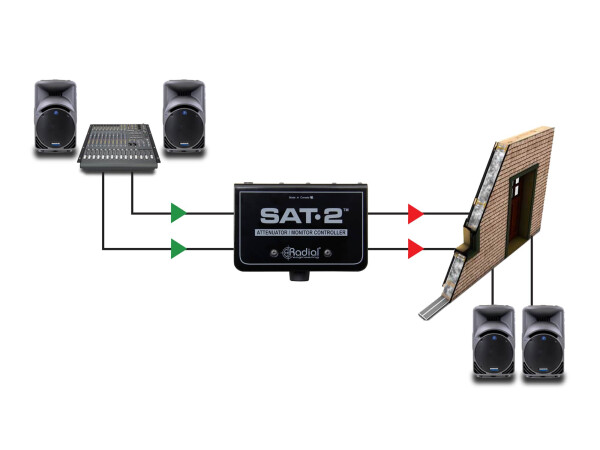

• Provides level control for any stereo audio signal
Extras:
• Mono sum to check phase compatibility
• Dim function with dedicated level control
• Mute switch cuts signal to the outputs
Technical Specification
- Audio circuit type Passive audio signal path
- Number of channels 2
- Frequency response 20Hz to 20kHz
- Dynamic range >141dB
- Gain 0dB
- Total harmonic distortion >0.0005% @ 0dBu
- Intermodulation Distortion >0.001% @ 0dBu
- Phase Deviation 0° @ 20Hz, 0° @ 1kHz, +2° @10kHz
- Input Impedance 8 kΩ
- Output Impedance 1.8 kΩ
- Common Mode Rejection Ratio >80dB
- Noise -115dBu
- Maximum Input >+ 26dBu
- Mono Sum, Level Control
- Input Connectors XLR, 1/4"
- Output Connectors XLR
- Construction 14-gauge steel chassis and outer shell
- Size (L x W x D) 5" x 3.25" x 2" (12.7 x 8.3 x 5cm)
- Weight 1.5lb (0.68kg)
- Shipping size (L x W x D) 6.4" x 4.25" x 3" (16.3 x 10.8 x 7.6cm)
- Shipping weight 1.8lb (0.8kg)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
