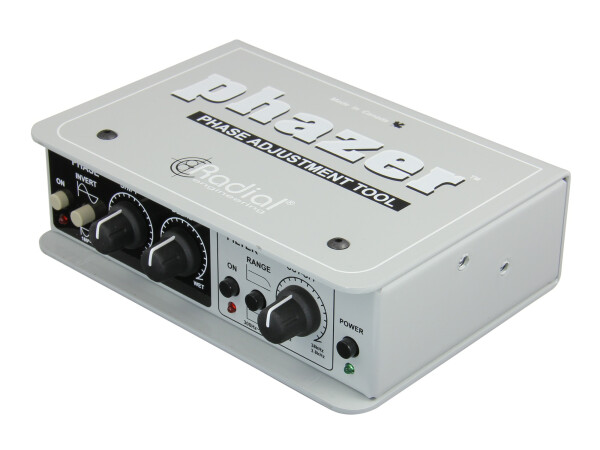

Radial Engineering Phazer - Class-A Phase Adjuster
SKU: R800-1450-00
UPC: 676101037827
Be the first to write a review!
Out of Stock - Available to Order
The Phazer™ is an analog phase alignment tool that lets you bring two sounds sources together so that the fundamentals play in sync.

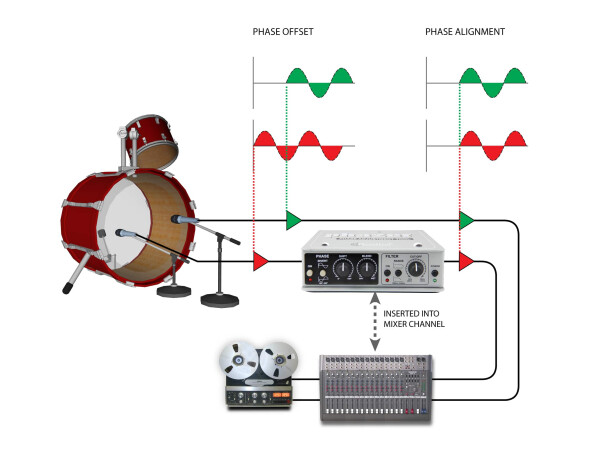

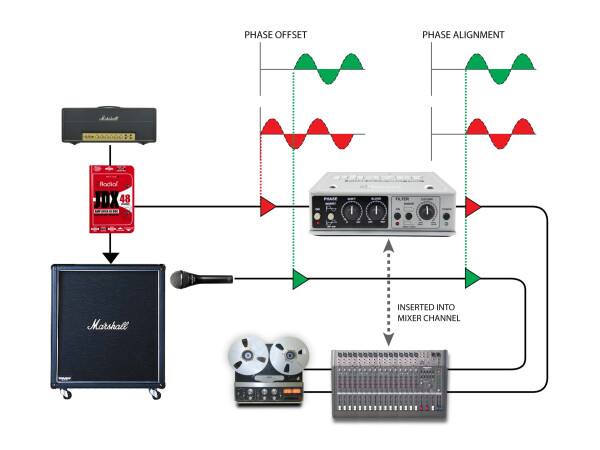

The Phazer is a unique tool that sums two line-level signals together using class-A analog circuitry, providing the ability to quickly and accurately phase-align any tracks for improved clarity and tone. Once in phase, the results are impressive: On electric guitar; you can combine the direct feed of an amp with a room mic to create fat rich tones. On a kick drum, combine the attack from a batter head mic with the body captured by the outer shell mic, or the top and bottom mic's on a snare drum. With acoustic instruments, combine a close 'spot' mic with a room mic to capture textures like never before.
• Phase-align two signals for exceptional clarity
• 100% analog, Class-A audio circuit
• Variable phase shift for precise alignment
• Low-pass filter lets you focus the effect
Technical Specification
- Audio circuit type Active analog phase adustment
- Number of channels Mono
- Frequency response 20Hz ~ 20KHz (± 0.5dB)
- Dynamic range 94dB
- Input Impedance 10k Ohms, balanced
- Output Impedance 2k Ohms, balanced
- Maximum Input +11.5dBu @ 1kHz, 1% THD+N
- Ground lift, LPF

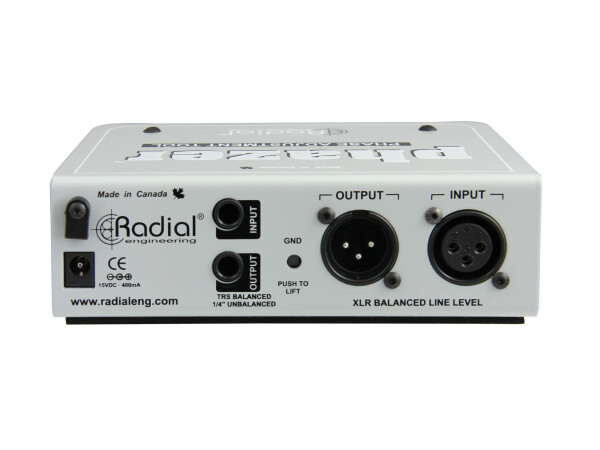

- Input Connectors XLR input, ¼" TRS input
- Output Connectors XLR output, ¼" TRS output
- Extras Phase Reverse
- Construction 14-gauge steel
- Size (L x W x D) 4.5" x 2" x 6" (114 x 57 x 147mm)
- Weight 2.8 lb (1.3kg)
- Shipping size (L x W x D) 4.75" x 2.5" x 10.75" (121 x 64 x 273mm)
- Shipping weight 3.05 lb ( 1.4kg)
- Power +15V DC/400mA power supply included
- Conditions For use in dry locations only between 5°C and 40°C
