Radial Engineering JX42 V2 - 4 Input, 2 Output Guitar and Amplifier Switcher

The Radial JX42 V2™ is a four-instrument, two-amp switching device designed to streamline any stage setup to ensure professional changeovers and zero downtime should problems arise. Four instrument inputs are provided on both the front or the rear panels, with large toggle switches and bright LED indicators for immediate visual feedback. Multiple instruments can be active simultaneously to prevent cutting off the performance when handing off a live guitar, and all inactive instruments feed an always-on tuner output for silent tune-ups at a moment’s notice. Dual amplifier outputs are available to switch between stage amps at will or as a redundancy in case of failure during a performance. The front panel controls can also be accessed using the optional JR-5 and JR-2 remotes, or MIDI controllers can be used to activate all features of the JX42 V2.

The JX42 V2 is a streamlined instrument and amplifier switcher that instantly provides your rig with the ability for professional, seamless changeovers without signal coloration or additional noise. Class-A signal buffers preserve the tone of your instruments, with four inputs accessible on either the front or back panel of the JX42. Large backlit on/off switches select the active input, with the ability to have multiple instruments active simultaneously. Inactive inputs feed a pair of always-on Tuner outputs, which are buffered and mirrored on the front and back panels. Remote control over the inputs is available with the optional JR-5 footswitch for hands-free operation, or using your favorite MIDI controller.

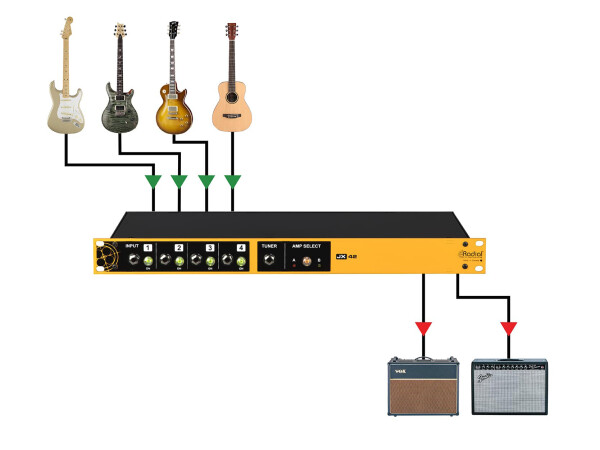

The two amplifier outputs can feed separate amps and switch between the two, or you can use them to create a redundant system with the ability to switch to the backup at the press of a button. Both outputs are isolated with premium Jensen transformers for exceptional audio quality, and feature ground lift switches to eliminate hum and buzz when connected to multiple amplifiers. Switching between the two outputs is silent and free of pops or clicks to avoid any disruption to the performance. The JX42 V2 is compatible with the Radial JR-2 footswitches, which allows you to remotely switch between the amp outputs or mute both as needed.

• Switch between four instrument inputs and two amp outputs
• Front and rear-panel buffered Tuner outputs

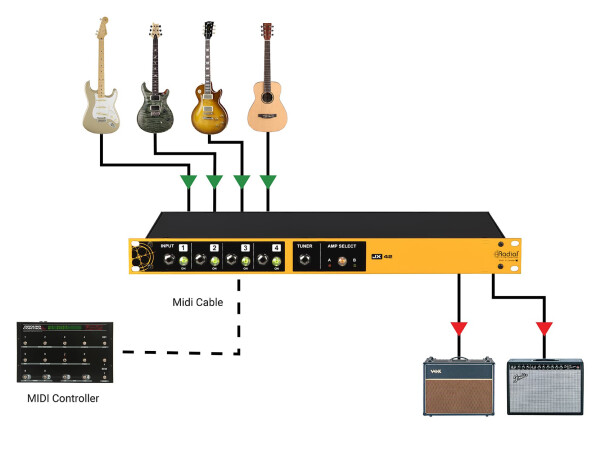

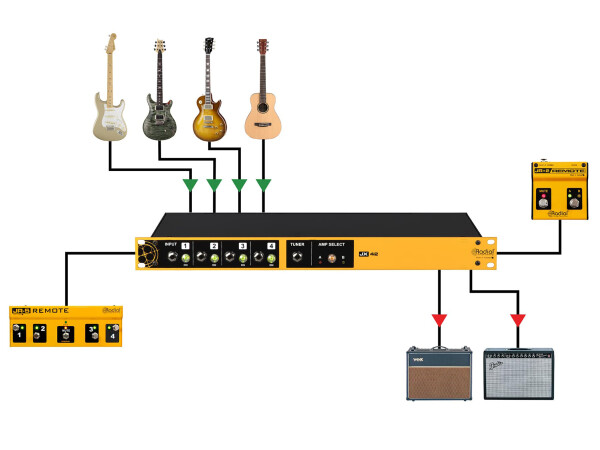

• Remote switching control with optional footswitches or MIDI
• Isolated outputs with premium Jensen transformers for optimal tone
• Built-in 120/240V power supply for worldwide touring
