Radial Engineering Gold Digger - 4-Channel Studio Microphone Selector
SKU: R800-1440-00
UPC: 676101040513
Be the first to write a review!
Available - Item in Stock

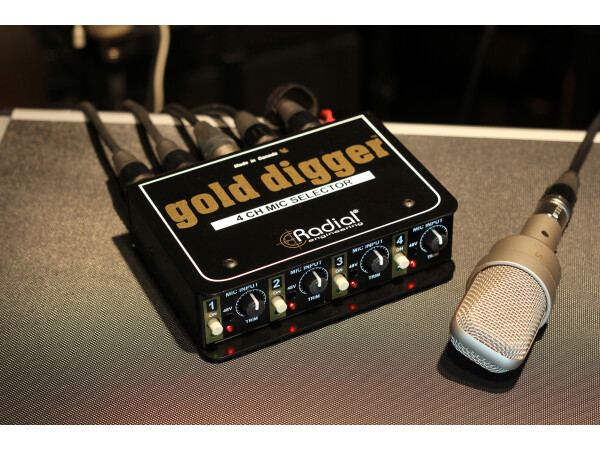

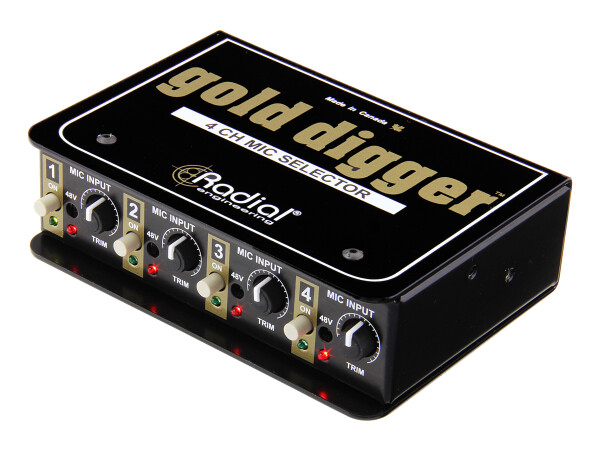

The Gold Digger™ is a 4-input, 1-output switcher that allows you to seamlessly audition multiple microphones through a single preamp, improving studio efficiency and workflow without altering the tone of each microphone or requiring down time to re-patch any cables.
The Gold Digger allows you to record with confidence knowing that you've selected the right tool for the job each and every time you record. It provides the ability to instantly A/B between up to four microphones, without introducing any coloration, noise, or distortion. Individual set & forget trim controls let you adjust each mic level so that they produce the same relative output, and 48V phantom is available to power condenser microphones. The Gold Digger makes it easy to audition multiple options while maintaining studio efficiency and ensuring a smooth workflow. When paired with the Radial Cherry Picker™ you can choose between four microphones and four preamps in any combination, giving you the freedom to explore endless sonic possibilities.
Features:

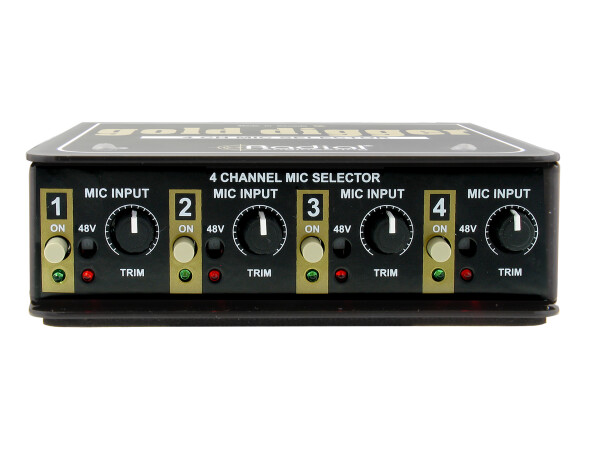

• Four selectable inputs with trim adjusts
• Pure ‘straight wire’ passive signal path
• Gold contact sealed relays do the switching
• Internally generated 48V phantom power
Applications:

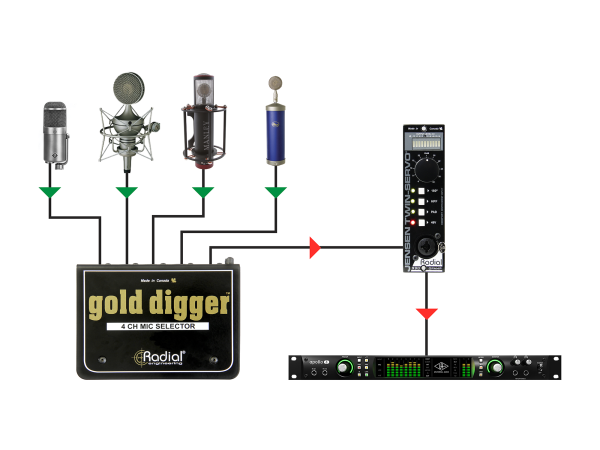

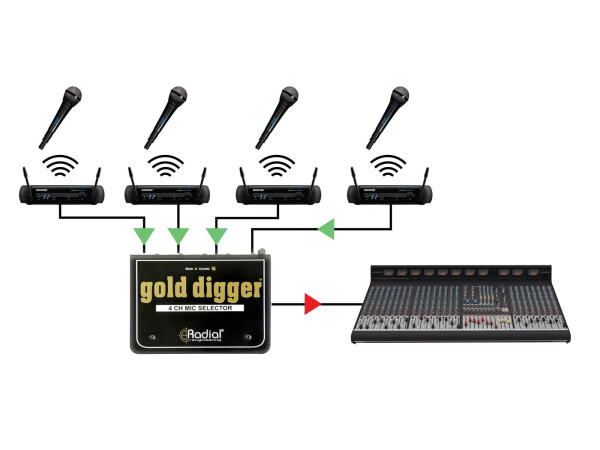

• Used to compare four microphones
• Increases artist’s confi dence when recording

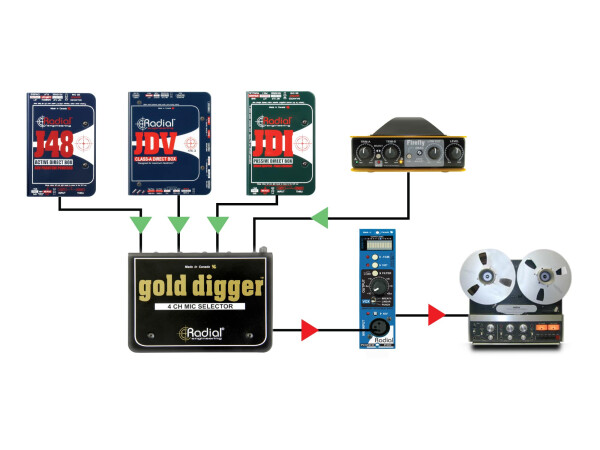

• Can be used to compare four direct boxes
• May also be used as a 4x1 line level selector
Cool factors:
• Super quick and effi cient means to get best audio
• Signifi cantly improves workfl ow in the studio
• Does not introduce color to the signal path
• Helps improve the vocal performance & sound
Technical Specification
- Audio circuit type Passive signal path with active relay switching
- Frequency response 10Hz to 100kHz +/- 0.0dB
- Dynamic range >140dB
- Gain 0.0dB – Unity gain device
- Total harmonic distortion 0.00%
- Intermodulation Distortion 0.00%
- Phase Deviation < 0.001 Degrees at all frequencies
- Input Impedance 600 Ohms (typical)
- Common Mode Rejection Ratio -92dBu @ 55Hz
- Equivalent Input Noise -115dBu
- Noise -140dB
- Maximum Input +26dBu
- Maximum Output +26dBu
- Level Control, Phantom Power

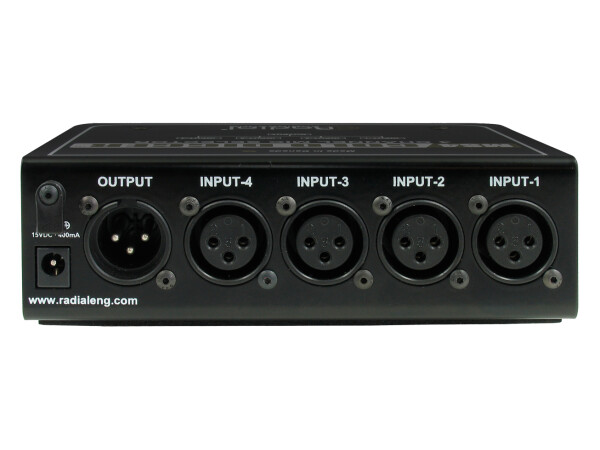

- Input Connectors 4x XLR
- Output Connectors XLR
- Construction 14 gauge steel chassis & outer shell
- Size (L x W x D) 4.5" x 2" x 6" (121 x 64 x 147mm)
- Weight 2.8 lb (1.3kg)
- Shipping size (L x W x D) 4.75" x 2.5" x 10.75" (121 x 64 x 273mm)
- Shipping weight 3.05 lb ( 1.4kg)
- Power +15V DC/400mA power supply included
- Conditions For use in dry locations only between 5°C and 40°C
