Radial Engineering JD6 Six-Channel Rackmount Passive DI Direct Box
SKU: R800-6000-00
UPC: 676101034864
Be the first to write a review!
Available - Item in Stock

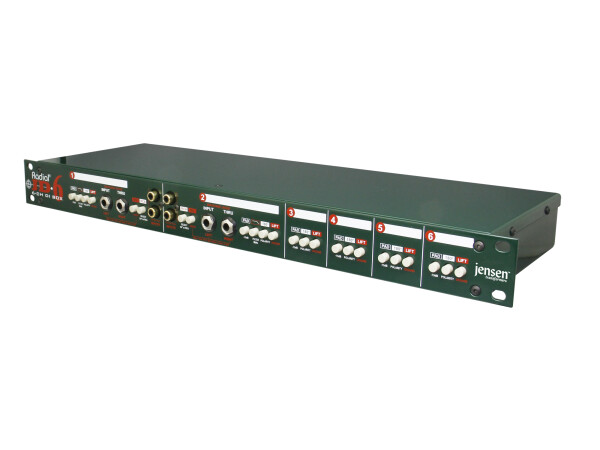

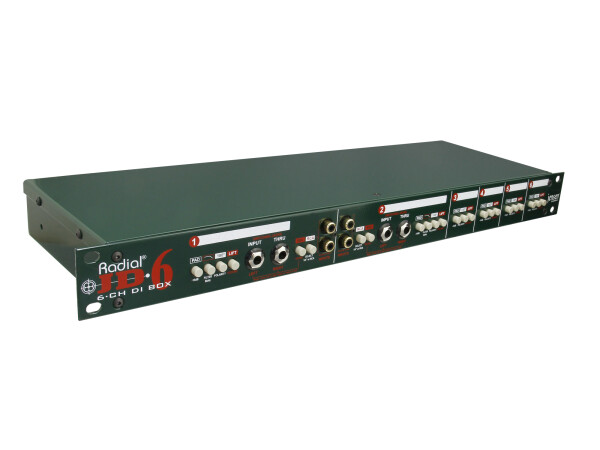

The JD6™ a high performance six-channel rackmount direct box designed for the most demanding studio and live touring applications.

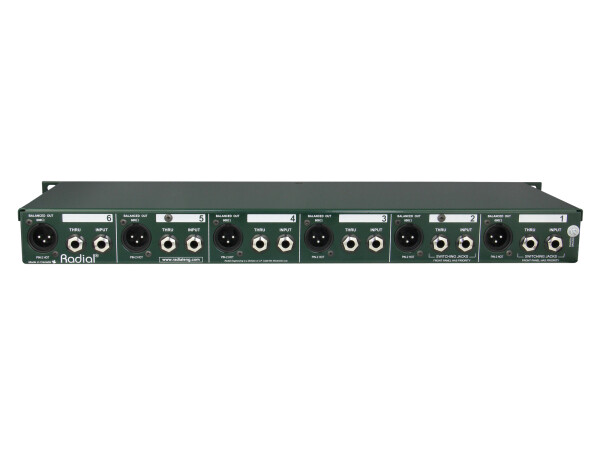

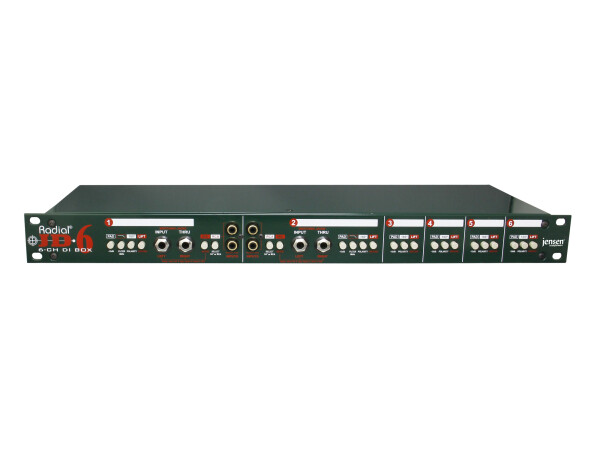

Stemming from the industry standard Radial JDI™, the JD6 incorporates six premium Jensen transformers with extra RF filtering to ensure optimal signal transfer with the minimal noise, phase shift, or distortion. These are also able to withstand extreme signal levels, which makes the JD6 particularly effective when managing high-output active devices such as digital pianos that will often overload most direct boxes or preamps. Each JD6 channel is equipped with a rear-mounted ¼" instrument input and thru-put for the artist's amp plus a balanced XLR output to feed the mixing desk, while Channels 1 and 2 include front panel connectors that switch the input as soon as a cable is inserted for improved efficiency in the studio.
Features:
• High density with 6 channels in 1 RU
• Premium Jensen JT-DB-EPC transformers
• Ultra linear from 10Hz ~ 40kHz
• Extraordinary level handling without distortion
• Built to survive the road
Applications:

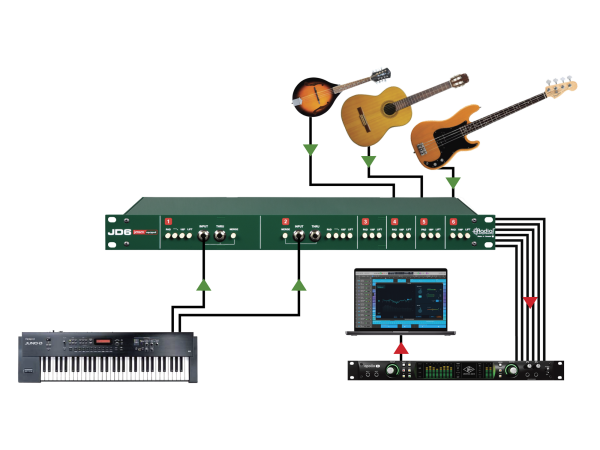

• Keyboards, sound cards and electronic drums
• Great with all high output, electronic instruments
• Eliminates hum & buzz caused by ground loops

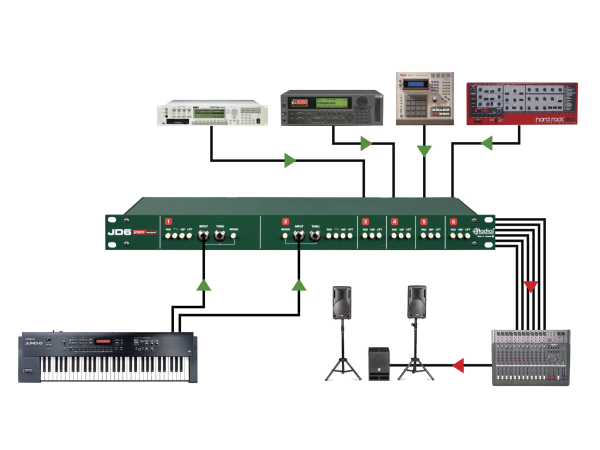

• Ideally suited for live or studio use
Cool Stuff:
• Swiss-army knife connectivity
• ‘Plug & play’ easy-to-use!
• No battery or phantom-power required
Technical Specification
- Audio circuit type Passive, transformer based
- Transformer Jensen JT-DBE, 12:1 ratio
- Number of channels 6
- Frequency response 20Hz ~ 20KHz (± 0.2dB)
- Dynamic range 135dB
- Total harmonic distortion 0.05% from 20Hz ~ 20kHz @-10dB
- Phase Deviation 0.3° @ 100Hz; 3° @ 20Hz
- Input Impedance 140k Ohms, unbalanced
- Output Impedance 150 Ohms, balanced
- Maximum Input +21dB @ 20Hz
- Input pad, Mono Sum, 180° polarity reverse, Ground lift, LPF
- Input Connectors 1/4", RCA
- Output Connectors 1/4", XLR
- Construction 14-gauge steel chassis & outer shell
- Size (L x W x D) 19" x 6.25" x 1.75" (48.3cm x 15.875cm x 4.45cm)
- Weight 3.6 kg (8 lbs)
- Shipping size (L x W x D) 22" x 10.375" x 4.5" (55.9cm x 26.4cm x 11.4cm)
- Shipping weight 3.7 kg (8.15 lbs)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
