Radial Engineering Catapult Mini 4-Channel Cat 5/6 Audio Snake
SKU: R800-8029-00
UPC: 676101044764
Be the first to write a review!
Available - Item in Stock

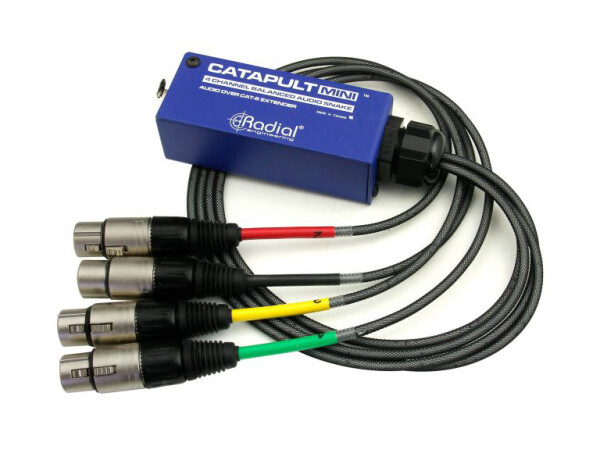

The Radial Catapult Mini is a professional 4-channel passive analogue audio over Cat 5/6 stage snake system designed for live sound, recording, and installed audio applications. It allows up to four channels of balanced microphone or line-level audio to be transmitted over a single Ethernet cable, replacing traditional bulky analogue multicore snakes with a compact and flexible solution.
Operating entirely in the analogue domain, the Catapult Mini delivers transparent signal transfer with no latency, noise, or digital conversion. It is ideal for extending audio between stage boxes, mixing consoles, recording interfaces, and remote locations while maintaining full signal integrity over long cable runs.

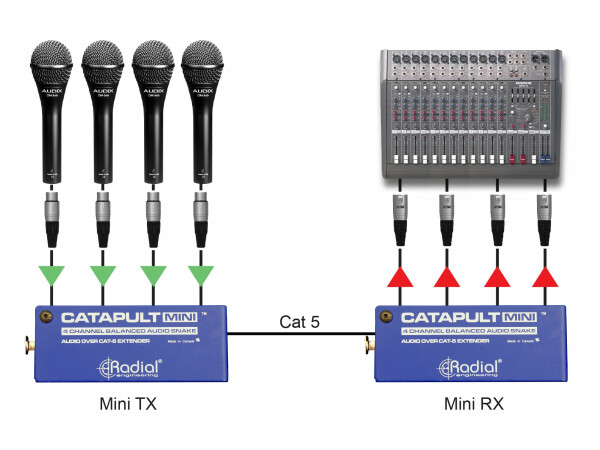

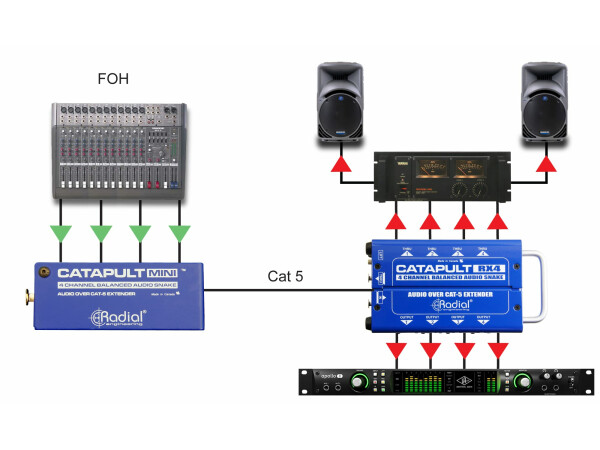

The system is available in TX (send) and RX (receive) formats, allowing flexible system design depending on signal direction. When paired together, the units function as a complete 4-channel audio snake over standard shielded Cat 5 or Cat 6 cabling. Multiple Catapult Mini units can also be used together to scale larger systems.
Built for professional use, each unit features rugged steel construction, locking etherCON-compatible RJ45 connectors, and ground lift options to help eliminate hum and interference in complex stage environments.
Key features
• 4-channel passive analogue audio snake over Cat 5/6 cable
• No digital conversion — pure balanced analogue signal path
• TX and RX units for flexible send/receive system design
• Compatible with standard shielded Ethernet cabling
• Ground lift switching to reduce hum and ground loop noise

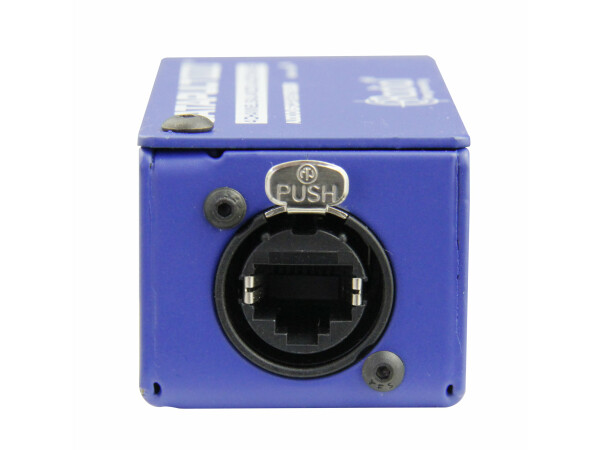

• Locking RJ45 / etherCON-style connectors for secure connection
• Can be combined for larger multichannel systems
• Rugged steel chassis built for touring and installation use
Technical Specification
- Audio circuit type Passive splitter
- Frequency response 7Hz ~ 20KHz
- Dynamic range 140dB
- Total harmonic distortion 0.0005% @ 1kHz
- Common Mode Rejection Ratio >103dB
- Maximum Input +35dBu
- Ground lift
- Input Connectors XLR, TRS, RJ45 (model dependant)
- Output Connectors XLR, TRS, RJ45 (model dependant)
- Construction 16-gauge steel chassis & outer shell
- Size (L x W x D) 4.125" x 1.56" x 1.31" (105 x 40 x 33mm)
- Weight 0.85lb (0.4kg)
- Shipping size (L x W x D) 6.25" x 4.25" x 3" (159 x 108 x 76mm)
- Shipping weight 1.1lb (0.5kg)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
