Radial Engineering Cab-Link - Passive Speaker Cabinet Merger
SKU: R800-7088-00
UPC: 676101044603
Be the first to write a review!
Out of Stock - Available to Order

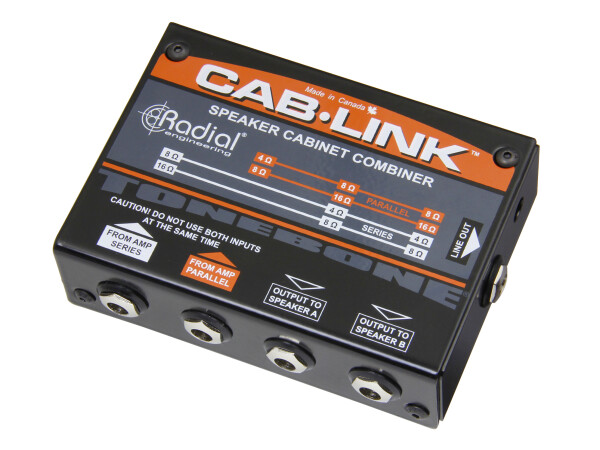

The Cab-Link provides a simple and compact solution for players who have a single speaker output on their amplifier but want to connect to two cabinets simultaneously.

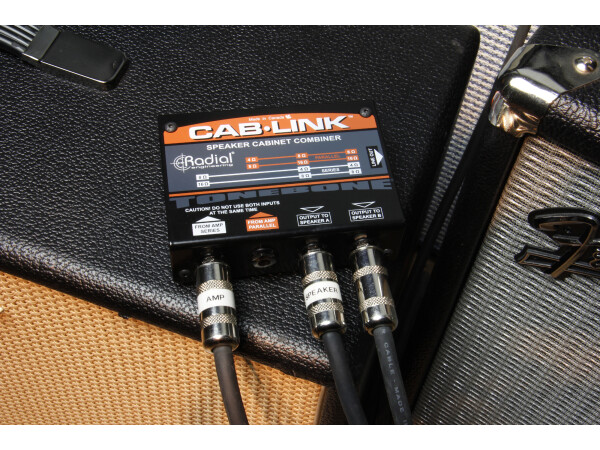

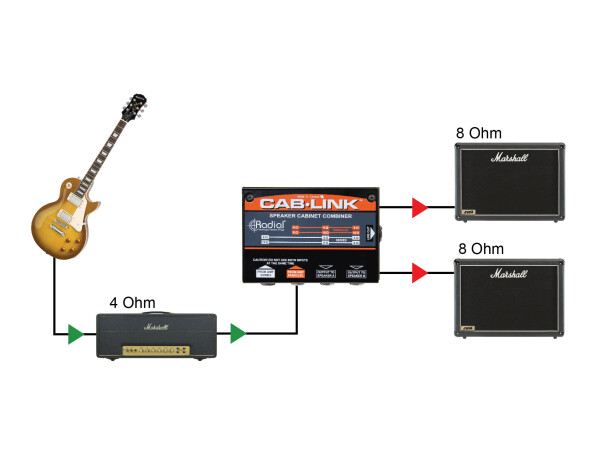

Whether you want to wire up your cabinets in series or in a parallel configuration, the Cab-Link makes things easy. Simply connect two speaker cables from the Cab-Link outputs to each of your cabinets, and a third speaker cable from the output of the amp head to either the series or the parallel input. The Cab-Link reconfigures automatically depending on which input is used, and a handy guide on the top of the unit lets you know which input should be used to best match the impedance between your amp and the cabinets. A line output with a level control provides additional functionality and can be used to feed the input of another amplifier or an effects unit.
Features:
• Completely passive, no need for power
• Compact and rugged design
• Works in series or parallel configuration
Applications:
• Connect two cabinets to a single amp output
• Experiment with multiple cabinets in the studio
• Makes impedance-matching easy
Cool Stuff:

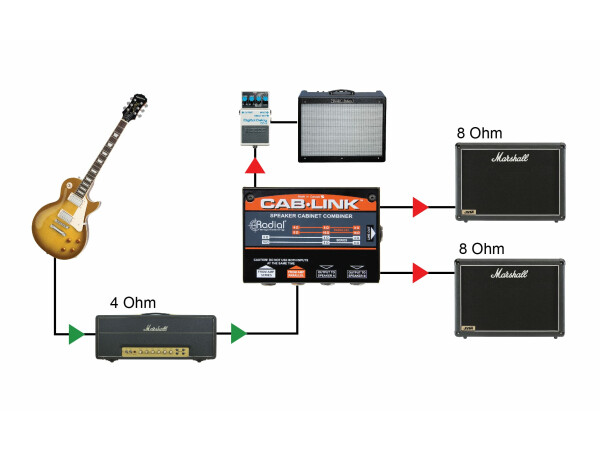

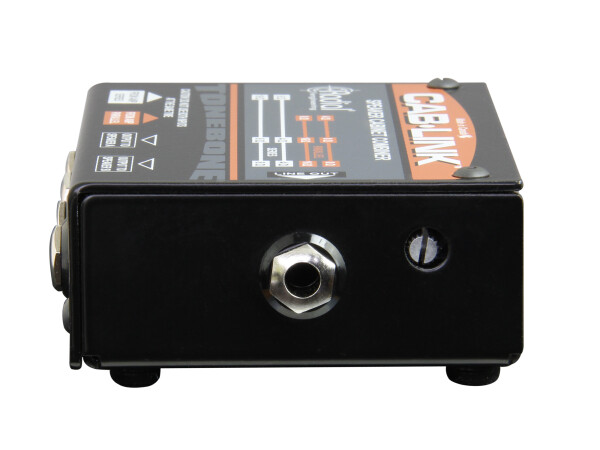

• Line output to feed an additional amp or EFX

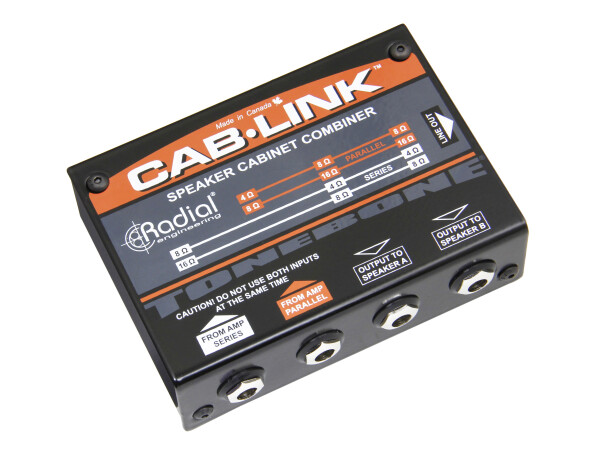

• Impedance guide for easy reference
• Handles amp outputs up to 400 watts
Technical Specification
- Audio circuit type 100% passive
- Maximum Power Rating 400W
- Level Control

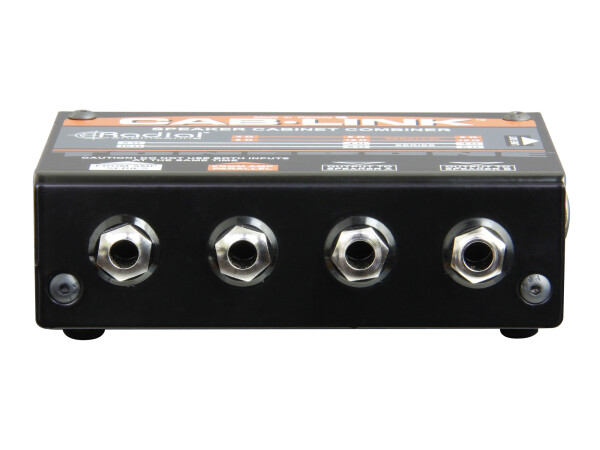

- Input Connectors 1/4" Series or Parallel
- Output Connectors 1/4" Speaker A, Speaker B, Line Out
- Extras Trim Control for Line Out
- Construction 14-gauge steel chassis & outer shell
- Size (L x W x D) 4.63" x 3.25" x 1.38" (11.8cm x 8.3cm x 3.5cm)
- Weight 1.16lb (0.52kg)
- Shipping size (L x W x D) 6.25" x 4.25" x 3" (15.9cm x 10.8xm x 7.6cm)
- Shipping weight 1.46lb (0.7kg)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
