Radial Engineering J48 Stereo - Phantom Powered Premium Stereo Active Direct Box
SKU: R800-3002-00
UPC: 676101043439
Be the first to write a review!
Available - Item in Stock
The J48 stereo is a high performance 2-channel active direct box for live concert touring and professional recording studio applications, with the ability to handle extreme transients without distortion while delivering the natural sound of your instrument.

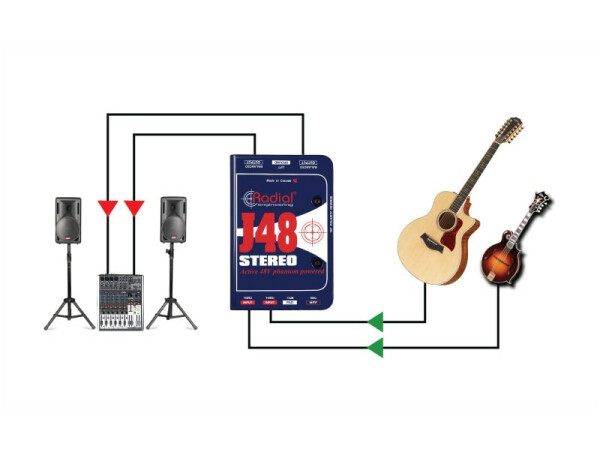

Most battery-powered instruments and stereo keyboards will produce as much as 7 Volts when played at maximum volume, which can easily overload typical active direct boxes that are only able to handle about 3 Volts. The J48 Stereo uses a unique switching power supply that raises the internal rail voltage so it can handle up to an incredible 9 Volts, resulting in improved signal handling and greater headroom. This additional headroom significantly reduces distortion of all types, allowing the natural tone and character of the instrument to shine through. The J48 maintains stereo separation between the left and right channels, allowing it to be used on two separate instruments or with stereo sources such as keyboards.
Features:
• Active direct box with extra headroom
• Compact two channel design
• Innovative ground lift circuit
• Radial tough design for touring
Benefits:
• Amazing sound in a compact box
• Perfect for guitar, bass or other instruments
• Eliminates need for batteries
• Compact design takes up less space
Cool stuff:
• Active design will not load down pickups
• Higher output compared to other DIs
• Will not pollute land fill sites with old batteries
• Low cut filter cleans up the mix
Technical Specification
- Audio circuit type Proprietary analog circuit with low-noise op-amp
- Number of channels 2
- Frequency response 20Hz ~ 20kHz
- Dynamic range 109dB
- Total harmonic distortion 0.002% @ -5dBu
- Intermodulation Distortion 0.003% @ -3dBu
- Phase Deviation +10º at 20Hz | 0º at 1kHz | -1º at 20kHz
- Input Impedance 220kΩ - ¼" input
- Output Impedance 600Ω - XLR output
- Equivalent Input Noise -103dBu
- Noise -99dB below 0dBu
- Maximum Input +10dBu
- Features Input pad, 180° polarity reverse, Ground lift, HPF
- Input Connectors 2x 1/4" in and thru
- Output Connectors 2x XLR
- Construction 14 gauge steel chassis and outer shell
- Size (L x W x D) 3.3" x 5.0" x 2" (84 x 127 x 48mm)
- Weight 1.55 lb (720 g)
- Power 48V phantom - proprietary digital switching
- Conditions For use in dry locations only between 5°C and 40°C
- Warranty Radial 3-year, transferable
