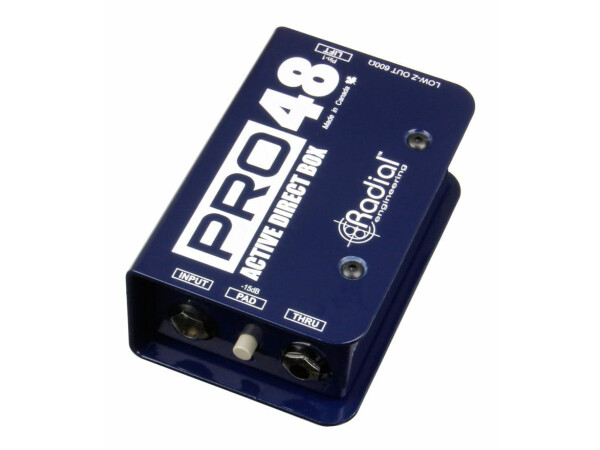

Radial Engineering Pro48 - Active Direct Box

SKU: R800-1105-00
UPC: 676101036776

Be the first to write a review!

Available - Item in Stock

£152.92

£127.43 (Ex VAT)

The Pro48 is an active direct box designed for use on stage or in home recording studios, with exceptional signal handling for use with both active and passive instruments.

The Pro48's innovative internal switching power supply significantly increases headroom producing less distortion while yielding a smooth, linear response that extends from 20Hz to well above 40kHz. This results in natural, uncolored signal that is as good or better than DI boxes costing several times more. The superior performance makes the Pro48 an ideal candidate for use with battery powered active basses and acoustic guitars that tend to overload other direct boxes.

Features:
• Huge internal rail voltage for extra headroom
• Ultra-flat frequency response from 20Hz to 40kHz
• High 220kΩ input impedance reduces loading
• Plug and play simplicity for quick deployment

Applications:
• Perfectly suits acoustic guitars and basses
• Provides extra ‘reach’ and ‘air’ in your sound!
• Pad switch lets you use with active instruments
• Equally wonderful for live touring or in the studio

Cool stuff:
• Handles extreme transients without distortion
• No batteries required, works with phantom-power
• Ground lift reduces hum and buzz caused by ground loops
• Compact and rugged design for on the road

  • Audio circuit type Proprietary analog circuit with low-noise op-amp
  • Frequency response 20Hz ~ 20kHz (± 1.5 dB
  • Dynamic range 99dB
  • Total harmonic distortion 0.001% @ 0 dBu
  • Intermodulation Distortion 0.002% @ 0 dBu
  • Phase Deviation +28º at 20Hz | +1º at 1kHz | -2º at 20kHz
  • Input Impedance 220kΩ - ¼" input
  • Output Impedance 600Ω - XLR output
  • Equivalent Input Noise -86dBu
  • Noise -82dB below 0dBu
  • Maximum Input +9dBu
  • Features Input pad, Ground lift
  • Construction 14-gauge steel
  • Size (L x W x D) 4.25" x 2.75" x 1.75" (108 x 70 x 44mm)
  • Weight 1.2 lb (0.54kg)
  • Power 48V phantom - proprietary digital switching
  • Conditions For use in dry locations only between 5°C and 40°C
  • Warranty Radial 3-year, transferable
