Radial Engineering BigShot EFX - True-Bypass Effects loop Switcher
SKU: R800-7214-00
UPC: 676101044276
Be the first to write a review!
Available - Item in Stock
The BigShot EFX™ is a true-bypass effects pedal switcher that lets you set up two separate effects loops and insert them into your pedal chain when needed.

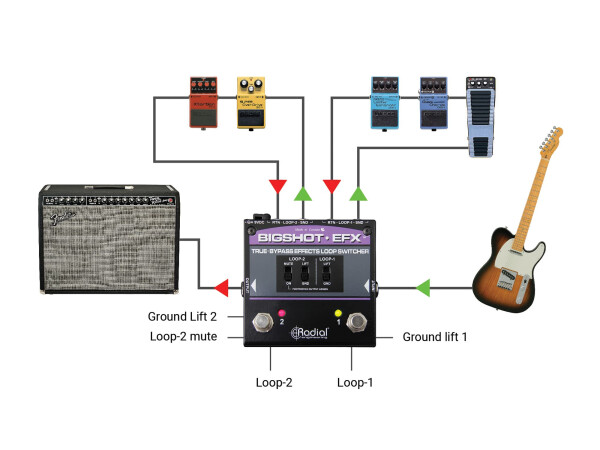

The BigShot EFX gives you the ability to take an entire chain of effects pedals in or out of your signal path with a single footswitch, providing you with a streamlined way to manage multiple pedals on stage. Two effects loops are provided and can be individually activated, or run simultaneously with Loop-1 feeding Loop-2 for even more creative options. You can also set up Loop-2 as a mute for silent tuning or instrument changeovers. Since each loop is true-bypass, it allows you to keep noisy or tone-robbing pedals out of the signal path when they are not needed.
Features:
• Two individual effects loops wired in series
• True-bypass signal path for straight wire connectivity
• Ground lift switch to reduce hum & buzz
• Compact and rugged for pro pedalboards
• Bright LED status indicators
Applications:
• Switch between rhythm & lead pedal-chains
• Switch noisy pedals out of the signal chain
• Stomp and tune in silence
Cool Stuff:
• Easy to use and setup
• 100% passive audio circuit
• Works with all instruments: guitar, bass, keys
Technical Specifications

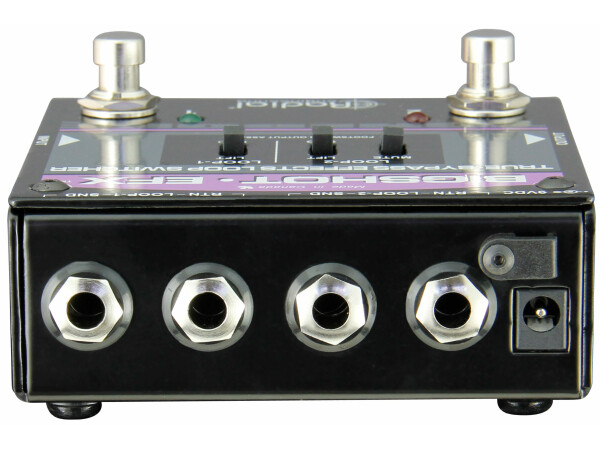

- INPUT ¼” jack connects the cable from your instrument
- SEND-1 ~ RETURN-1 ¼” output and input jacks for the first effects loop
- SEND-2 ~ RETURN-2 - ¼” output and input jacks for the second effects loop
- 9VDC Power jack connection for power supply (for LED’s only)
- 1 FOOTSWITCH Turns LOOP-1 on and off. LED status light indicates loop is active
- 2 FOOTSWITCH Turns LOOP-2 on and off. LED status light indicates loop is active
- OUTPUT ¼” jack connects to your amplifier
- LOOP-1 LIFT Reduces ground loop hum by disconnecting the ground at the RETURN-1 jack
- LOOP-2 LIFT - Reduces ground loop hum by disconnecting the ground at the RETURN-2 jack

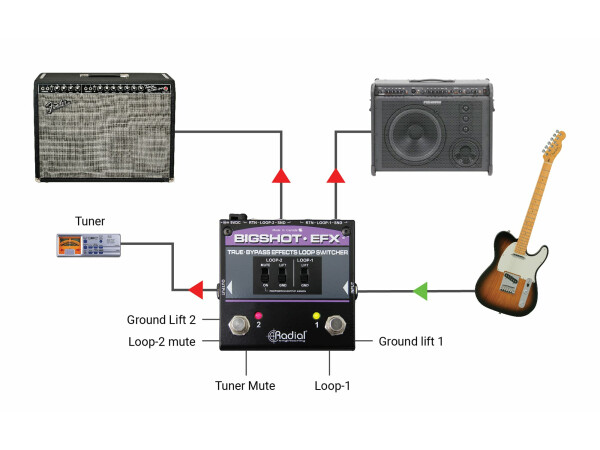

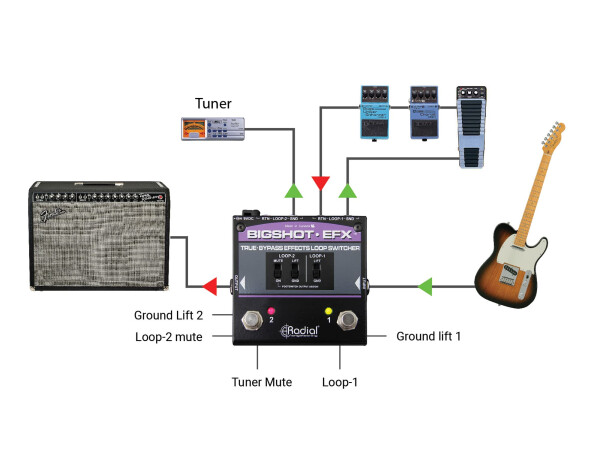

- LOOP-2 MUTE Converts LOOP2 into a mute function to allow silent tuning
