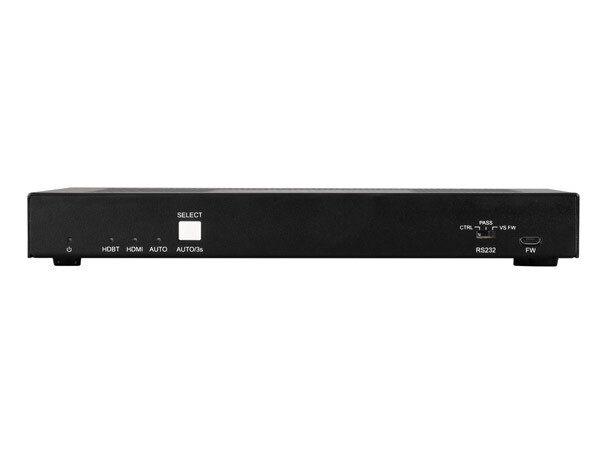

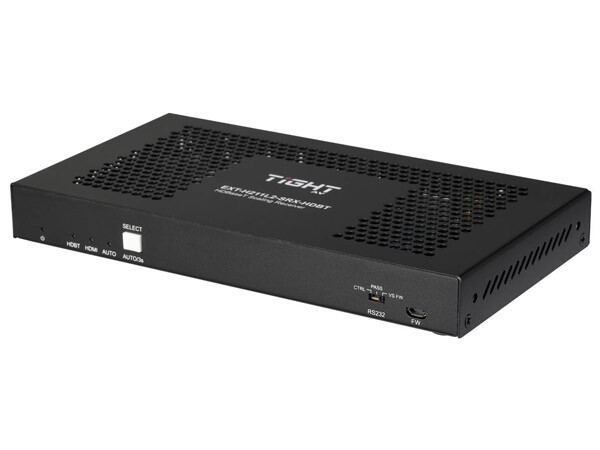

Tight AV TiGHT AV HDBT Scaling Receiver with Local HDMI Input
SKU: EXT-H211L2-SRX-HDBT
EAN: 5706470133624
Be the first to write a review!
Available - Item in Stock
The EXT-H211L2-SRX-HDBT from TiGHT AV offers an optimal solution for integrators seeking to distribute a video signal over extended distances in various installation applications while maintaining optimal picture quality. The HDBaseT receiver is equipped with advanced scaling technology supporting selectable scaled resolutions ranging from 1024x768 up to DCI 4K60 (4096x2160@60Hz 4:4:4).
The EXT-H211L2-SRX-HDBT supports automatic input selection feature facilitates seamless operation for users by automatically switching between the HDBaseT and the local HDMI inputs upon connection or disconnection of sources, thereby enabling effortless "connect and present" functionality. Additionally, the scaling receiver features EDID and HDCP management to ensure maximum functionality with a wide range of video sources and displays.
The EXT-H211L2-SRX-HDBT also supports RS232 and IR pass-through over HDBaseT and can be controlled via RS232 or from any compatible transmitter devices, such as the EXT-H101L2 TX-HDBT and the matrix switcher MSW-H614A-HDBT.
Furthermore, the device supports two-way PoC (Power over Cable), which means that it can draw power from a transmitter device or power compatible transmitters when connecting included external power supply.
Technical Specification
- INPUT
- Inputs One RJ45 port for HDBaseT input One HDMI 2.0 input for local source
- HDBaseT range 1080p@60Hz 70m and 4K@60Hz 40m
- OUTPUT
- Outputs One HDMI 2.0 output for display
- Out Resolution Selectable from 1024x768 to 4096x2160
- CONTROL
- Control (1) RS232 (1) Button (1) DIP Switch
- Control Connector (1) 3-pin terminal block (1) 4-pin dip switch
- GENERAL
- Power DC24V 1.25A
- Operation Temperature -10℃ ~ +55℃
- Storage Temperature -25℃ ~ +70℃
- Relative Humidity 10%-90%
- Power Consumption 30W Max (Powering TX)
- Dimension (WxHxD) 210mm x 25mm x 115mm
- Net Weight 755g
- Shipping Dimension (WxHxD) 270mm x 54mm x 200mm
- Shipping Weight 1300g
- Compliance FCC, CE
- Environmental RoHS, REACH, WEEE
