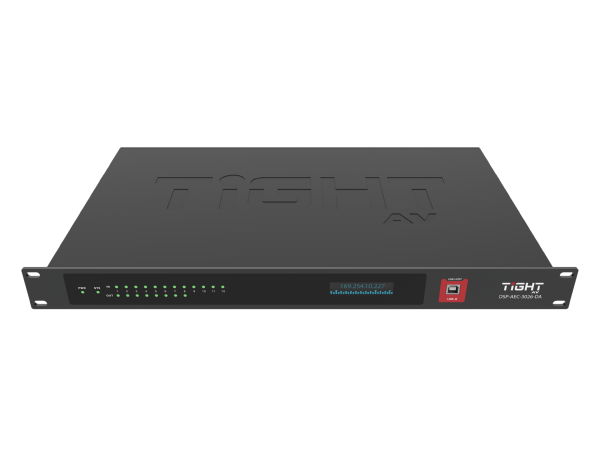

Tight AV DSP-AEC-3026 DA - Audio DSP with AEC, Analogue, Dante and USB

SKU: DSP-AEC-3026-DA
EAN: 7350142860066

Be the first to write a review!

Out of Stock - Available to Order

Write a review

£3,675.00

£3,062.50 (Ex VAT)

The DSP-AEC-3026-DA is the professional-grade audio signal processor your installations need, effortlessly blending analogue, USB, and Dante interfaces into a single, powerful unit. At its heart, the DSP-AEC-3026-DA provides robust audio processing including equalisation, dynamics, mixing, matrix routing, and advanced Acoustic Echo Cancellation (AEC). This ensures crystal-clear communication and pristine sound quality, even in the most demanding environments.

Configuration is intuitive and flexible thanks to a Windows application featuring a customisable Graphical User Interface (GUI). Users can tailor layouts, themes, and manage access with dedicated admin and user account support. Designed for mission-critical applications, the DSP-AEC-3026-DA includes a redundancy mode to safeguard operations. For seamless integration into larger AV systems, an open API allows for easy external control via Ethernet (TCP/UDP) or RS-232/485 protocols.

Whether you're optimising sound for a hybrid conference room, broadcast studio, or live event, the DSP-AEC-3026-DA combines cutting-edge features with a user-centric design to maximise your audio processing efficiency.

• 12x8 Analog I/O: Supports mic/line levels with per-channel phantom power.
• 16x16 Dante I/O: Full processing for networked audio distribution.
• 2x2 USB Channels: Full processing for computer audio playback and recording.
• Powerful DSP: Includes matrix routing, mixing, EQ, and dynamics.
• Acoustic Echo Cancellation (AEC): Advanced real-time echo elimination.
• Ducker and Adaptive Feedback Suppression (AFS).
• Camera Tracking.
• Easy-to-Use GUI: Configurable module layout with light/dark theme options.
• 16 Configurable Presets for easy recall.
• Device Snapshot Import/Export: Streamlines setup and deployment across multiple units.
• Admin/User Accounts: Secure access control for collaborative environments.
• Redundancy Mode: Ensures uninterrupted performance in critical applications.
• Open API: For external control via Ethernet (TCP/UDP) or RS-232/485.

Sections

£3,675.00

  • DSP PROCESSOR
  • Type ADI SHARC 21489
  • DSP Handling Capacity 400 MIPS, 1,6 GFLOPS

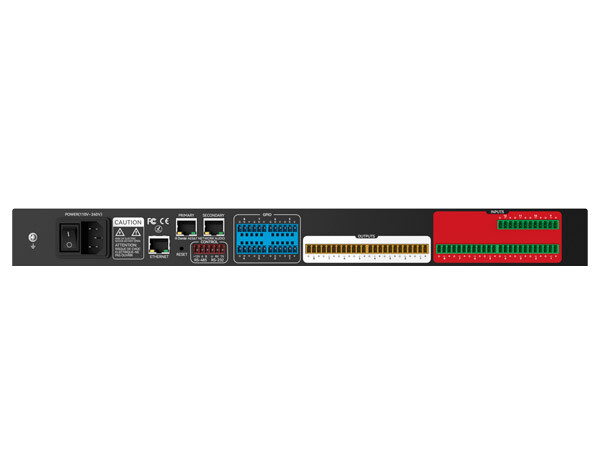

  • INPUT
  • Inputs (12) Analogue Mic/line Audio
  • Input Connector (3) 12-pin Green Terminal Blocks
  • Phantom Power 48V (Max 10mA), selectable per input
  • OUTPUT
  • Outputs (8) Analogue Line Audio
  • Output Connector (2) 12-pin Yellow Terminal Blocks
  • INTERFACE
  • Ethernet (1) LAN, 10/100 Base-T Ethernet (2) LAN 10/100/1000 Base-T Ethernet
  • Ethernet Connector (3) RJ45
  • USB (1) USB 2.0, Type B
  • Serial (1) RS-232, (1) RS-485
  • Serial Connector (1) 6-pin Brown Terminal Blocks
  • GPIO (8) GPIO
  • GPIO Connector (2) 12-pin Blue Terminal Blocks
  • AUDIO PERFORMANCE
  • Input Gain 0 ~ 60dB in 3dB steps
  • Frequency Response ±0.3dB (20Hz to 20KHz)
  • Maximum Level +18dBu
  • EIN <-125dB, 20Hz to 20kHz, A-Weighted
  • THD + Noise 0.003%@4dBu
  • Input Dynamic Range 110dB
  • Output Dynamic Range 112dB
  • Background Noise -95dB, A-weighted
  • Common Mode Rejection Ratio @60Hz 60dB
  • Channel Isolation @1KHz 108 dB
  • Input Impedance (Balanced) 5.4kΩ
  • AUDIO PERFORMANCE
  • Output Impedance (Balanced) 600Ω
  • System Latency <5ms
  • Sample Rate 48 kHz
  • Bit Depth 24 Bit
  • DANTE
  • Sample Rate 44.1kHz, 48 kHz, 88.2 kHz and 96 kHz
  • Encoding Bit Depth 16, 24 and 32 Bit PCM
  • Dante Device Latency 1, 2, 3, 4, 5 or 10 ms
  • Network Transport Dante Audio over IP RTP
  • NETWORK
  • Control Ethernet Port 10/100 Base-T, auto-negotiation
  • Primary Dante Port 10/100/1000 Base-T, auto-negotiation
  • Secondary Dante Port 10/100/1000 Base-T, auto-negotiation
  • GENERAL
  • Power requirements AC 110~240V, 50Hz~60Hz
  • Maximum Power Consumption <40W
  • Rack Space 19” Rack (1HE)
  • Dimensions (W x D x H) 482 mm x 264 mm x 44 mm
  • Unit Weight 2.2 kg
  • Shipping Weight 3.2 kg
