TiGHT AV 6x4+2 HDMI Matrix Switcher with HDBTTiGHT AV 6x4+2 HDMI Matrix Switcher with HDBT

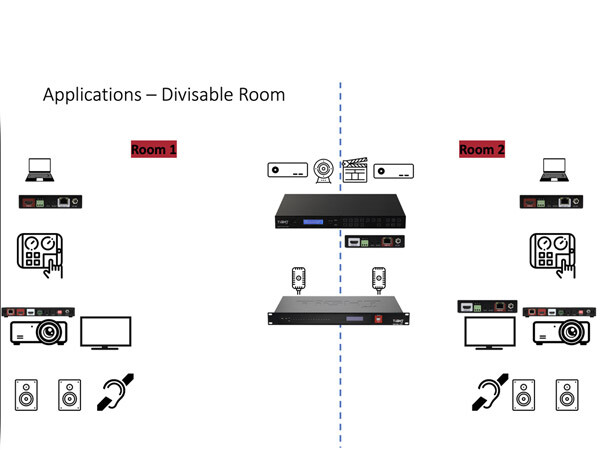

Looking for a cost-effective yet modern solution for your auditorium, lecture hall, worship hall, lobby, or corporate venue? Look no further than the MSW-H614A-HDBT!

This professional-grade 6x4+2 HDMI 2.0 and HDBaseT matrix switcher is designed to deliver optimal performance. Boasting a 2-input HDBaseT and four-input HDMI matrix with HDCP 2.3 and up to 4K60 4:4:4 video support, this matrix switcher is capable of transmitting 4K video up to 40 meters and 1080p video up to 70 meters over a single CAT6A cable.

In addition, the MSW-H614A-HDBT features four HDMI 2.0 with two mirrored simultaneous HDBaseT outputs which support 24V Power over Cable (PoC), enabling compatible TiGHT AV HDBaseT receivers to draw power from the matrix over the CAT6A cable. The matrix switcher is equipped with a 6x4 audio matrix that possesses de-embedding capabilities with individual volume, mute, and delay control per analog output channel.

The matrix switcher features comprehensive EDID management and advanced HDCP handling to ensure maximum functionality with a wide range of video sources and displays. The matrix switcher also offers multiple control options by front panel, IR, RS232 commands, WEB UI and TCP/IP commands.
