Tannoy VSX 12.2BP-WH - Twin 12" Compact Band Pass Passive Subwoofer in White

The VSX 12.2BP-WH is a compact dual 12" 3,200-Watt passive band pass subwoofer that is ideally suited for a broad range of speech and music sound reinforcement applications in both fixed, portable, and touring audio systems. VSX 12.2BP-WH’s superb low frequency reproduction makes it the perfect choice for deployment in clubs, bars, theatres and AV applications.

A dual ported band pass system, the VSX 12.2BP-WH features twin 12" low frequency drivers that provide extended low frequency response to well below 40 Hz – for chest-pounding bass. Fast and accurate transient response enables the VSX 12.2BP-WH Subwoofer to generate copious quantities of tight low end output that is virtually distortion-free.

Band pass enclosures are extremely efficient, creating maximum bass output within a specific frequency range by increasing the acoustic load presented to the driver. The low distortion band pass design utilised in the VSX 12.2BP-WH reinforces the bass musical instrument frequencies, and steep cut-off slopes ensure an effective acoustic transition for use with full-range loudspeakers. A typical application could consist of a VSX 12.2BP-WH providing the low-frequency bass extension for one, or two VX Series top cabinets.

• Compact band pass subwoofer for portable and installation applications
• 800 Watts continuous, 3,200 Watts peak power
• Twin 12" bass drivers for extended low-frequency system response to below 40 Hz

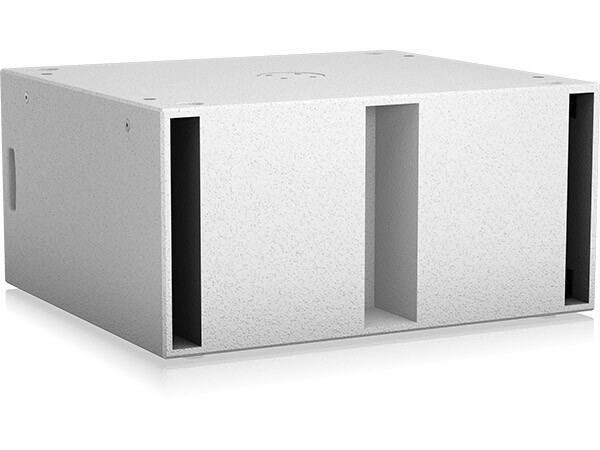

• Low distortion dual port design for maximum sound pressure levels
• Ideal for background music playback in clubs, bars, theatres and AV applications
• Internally braced plywood enclosure
• Finished with a hard wearing semi-matte white paint finish
• Rugged powder-coated perforated steel mesh grille
• Blanking plate for optional VTH pole mount
• Integral M10 rigging points for ease of installation
• Integrip handles ergonomically integrated into rear of cabinet

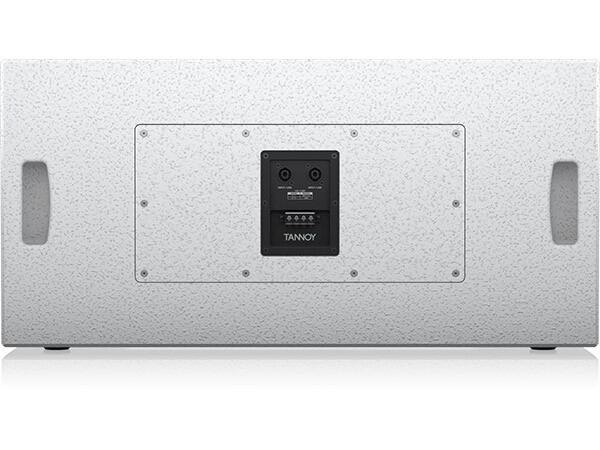

• 4-pole industry standard twist-lock speaker and barrier strip connectors for input and link output
