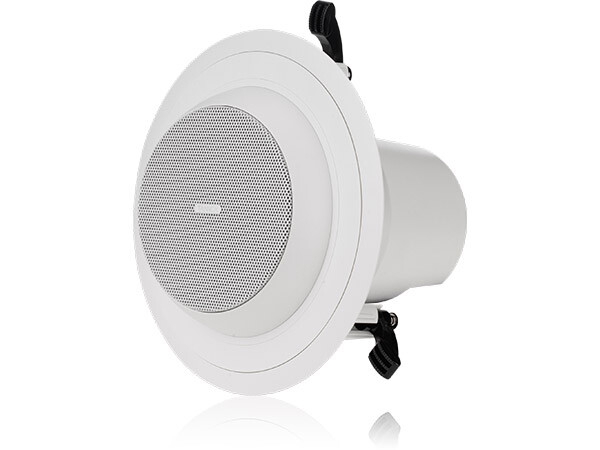

Tannoy CMS403 DCE 4" Full Range Directional Ceiling Loudspeaker with Dual Concentric Driver for Installation Applications (Blind-Mount) in White

SKU: 000-BUC00-00010
EAN: 4033653104166

Be the first to write a review!

Write a review

*Please note, these items must be purchased in multiples of 2 (pairs). We cannot fulfil orders of an odd quantity*

The CMS 403DCE is a full bandwidth 160-Watt high sensitivity loudspeaker that utilises our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 4" Dual Concentric point-source driver with Omnimagnet technology on a Torus Ogive Waveguide, the CMS 403DCE delivers wide and consistent broadband directivity with enhanced intelligibility – plus highly accurate and linear response.

Specifically designed with a self-aligning 3 way clamp system for fast, simple and cost effective installation, the CMS 403DCE can be angled towards the listener within the fixed ceiling-mounting ring. By discreetly pivoting the loudspeaker towards the desired area of coverage, the challenge of speaker placement in a less than ideal room is easily overcome.

Full range ceiling loudspeaker for installation applications

40 Watts continuous, 160 Watts peak power

Next generation 4" Dual Concentric point source driver featuring Omnimagnet technology

Torus Ogive waveguide for improved high frequency response and directivity

• Blind Mount enclosure supplied with integral moulded ABS back can
• Integrated single unit construction for ease of installation
• Adjustable tilt angle with 360° rotation to accommodate difficult loudspeaker placements
• Multiple transformer taps for 70 V and 100 V line systems or 16 Ohm direct input
• Low insertion loss 30 W line transformer with easily accessible tapping switch
• Optimised for Lab Gruppen low impedance LUCIA amplifiers with up to 8 CMS series loudspeakers per channel
• Semi matt white finish fits unobtrusively in any environment
• Powder coated UV resistant perforated steel mesh grille with dust protection
• Removable grille for custom painting
• Self-aligning 3 way clamp mounting system
• Mounting C-ring and ceiling tile rails included

Sections

Technical Specification

  • PERFORMANCE
  • Frequency response (-3 dB) 110 Hz - 50 kHz BM Backcan
  • Frequency range (-10 dB) 80 Hz - 54 kHz BM Backcan
  • TRANSDUCERS ________________
  • Dual concentric point source driver 1 x 100 mm (4.0") Dual Concentric driver, using Omnimagnet technology
  • Low frequency 35 mm (1.38") voice coil, treated multi fiber paper pulp cone
  • High frequency 20 mm (0.79") PEI dome
  • PHYSICAL
  • Safety features Safety ring located at rear of enclosure for load bearing safety bond
  • Clamping design Min / Max clamping range: 0.0 mm (0.0") /20.0 mm (0.79") Recommended clamp torque: 1.5 Nm
  • Included accessories C-Ring, tile-bridge kit, paint mask, cut-out template, grille
