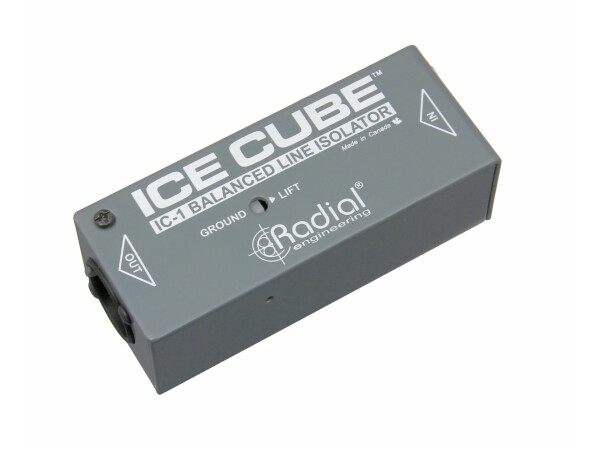

Radial Engineering IceCube - Balanced XLR Line Isolator and Hum Eliminator
SKU: R800-1031-00
UPC: 676101043460
Be the first to write a review!
Available - Item in Stock
The IceCube™ is a balanced line-level isolator designed to quickly eliminate hum and buzz from an audio system by simply inserting it into the signal path.

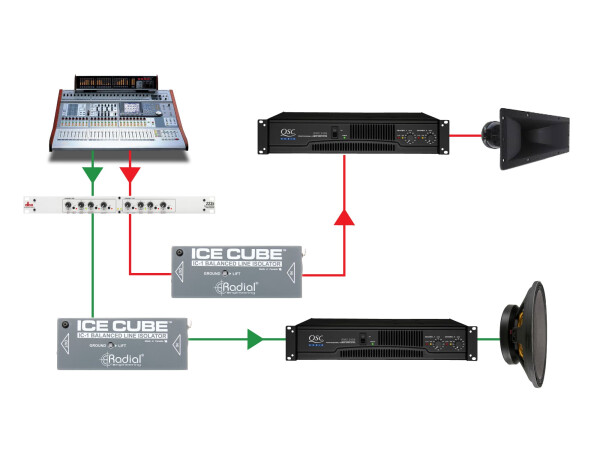

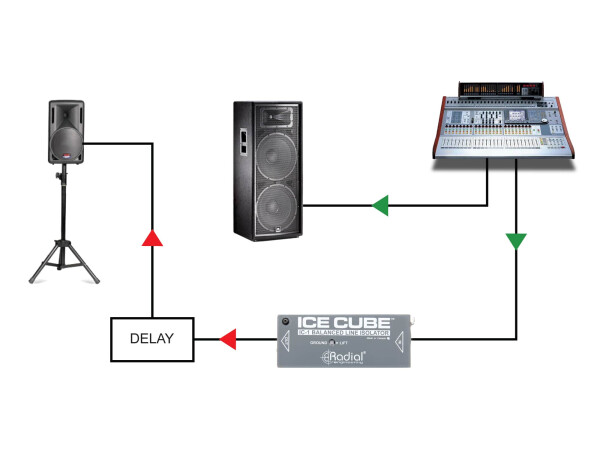

The IceCube is an ideal problem solver for today's AV technicians and audio engineers, providing an easy way to insert an isolation transformer into the signal path to remove hum and buzz from ground loops, with a ground lift switch for additional noise reduction. Simply connect it between any two line-level devices, such as a mixer and a powered speaker, or a crossover and a power amp. The IceCube will eliminate ground loop noise without limiting the audio bandwidth or introducing phase shift, and it can handle hot signal levels without distortion.
Features:
• Eclipse transformer for ruler flat response
• Able to handle signal levels to +15dB
• Steel enclosure protects against magnetic fields
• Locking XLR will not accidentally disconnect
Benefits:
• Eliminates hum and buzz in balanced systems
• Will not deteriorate the audio signal path
• Compact – fits inside any work kit
• Rugged, will keep on working under stress!
Cool Stuff:
• Super affordable
• ‘Plug & play’ easy to use
• Eliminates costly trouble shooting
Technical Specification
- Audio circuit type Passive, transformer based
- Transformer Custom made Eclipse
- Number of channels 1
- Frequency response 20Hz ~ 20KHz (± 1dB)
- Gain 0dB / -5.7dB 10K / 600 Ω Load
- Clip Level 25dBu
- Total harmonic distortion <0.0006% 1KHz @ -10dBu
- Intermodulation Distortion 0.002% @ -10dBu
- Input Impedance 8.66k with 10k load
- Output Impedance 600 Ω nominal
- Equivalent Input Noise 110dBu
- Maximum Input 15dBu
- Ground lift

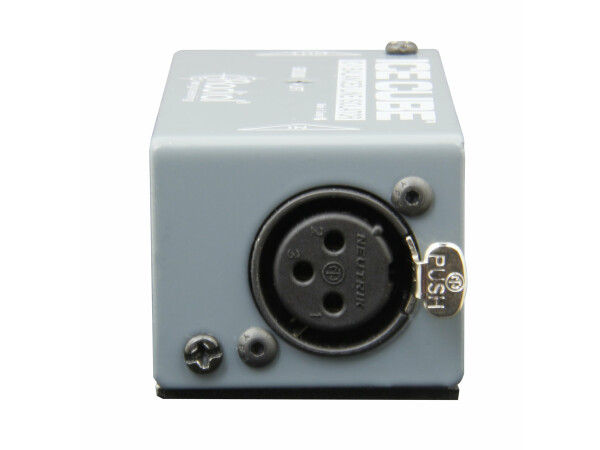

- Input Connectors XLR Female

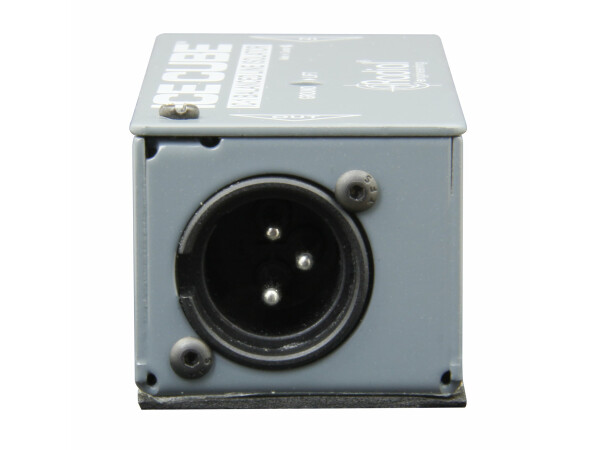

- Output Connectors XLR Male
- Construction 16-gauge steel
- Size (L x W x D) 4.2" x 1.32" x 1.6" (107mm x 34mm x 41mm)
- Weight 0.40lbs (0.18kg)
- Shipping size (L x W x D) 8" x 5" x 3" (203mm x 127mm x 76mm)
- Shipping weight 0.55lbs (0.25kg)
- Power Passive, no power required
- Conditions For use in dry locations only between 5°C and 40°C
