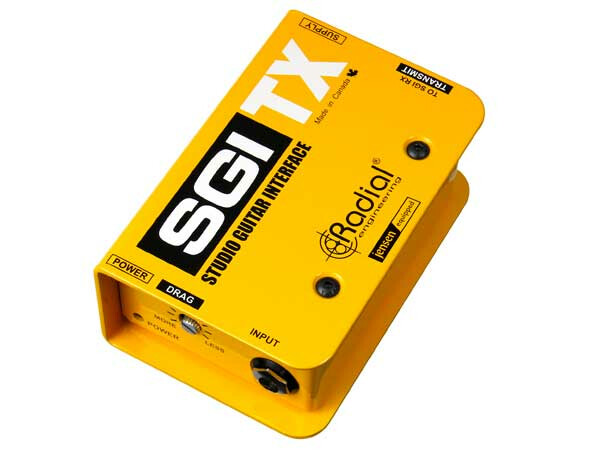

Radial Engineering SGI-TX 9v - Studio Guitar Interface (Transmitter)

The SGI sends guitar signals across long distances without signal loss or noise, while retaining the original tone of the instrument. In the studio, it allows the guitarist to sit in the control room and connect to a distant guitar amp. On stage, the SGI can be used to play the guitar amp using off-stage isolation cabinets or it can be used to manage guitar signals to and from wireless systems, pedalboards and amplifiers.

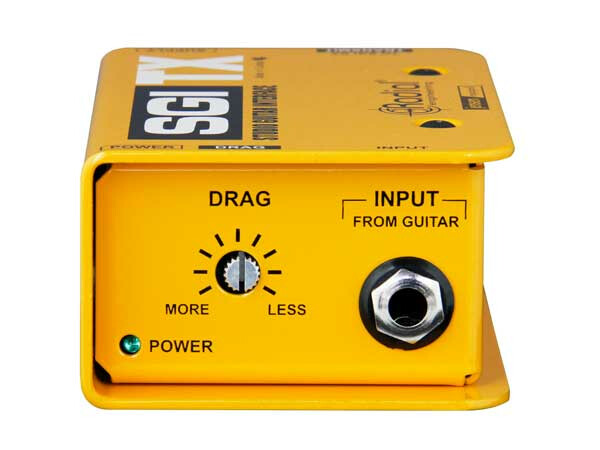

The SGI consists of two boxes: the SGI-TX transmitter and the SGI-RX receiver. The connection between the TX and RX is made using a standard balanced XLR microphone cable. To use, you simply plug your guitar into the SGI-TX input and connect your amp from the SGI-RX output and you are set to go. The SGI TX uses a discrete buffered circuit to drive your signals over long distances, while the SGI RX captures the signal and converts it to the appropriate impedance to feed your amplifier while retaining the original tone.

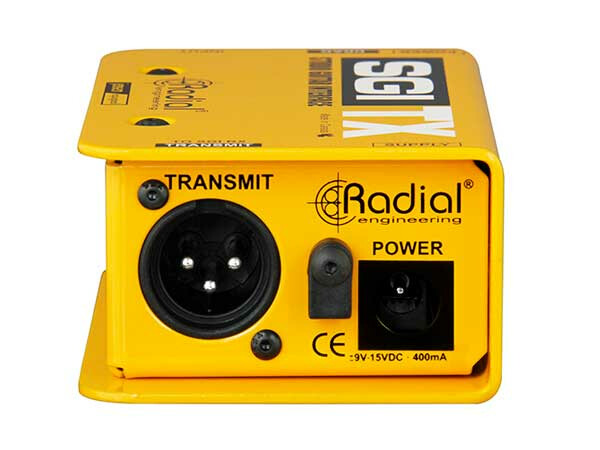

The SGI ships with an included 15V power supply to power the TX transmit unit, but it can also be used with standard pedalboard power supplies, making it easier to integrate onto a pedalboard. You can use any power supply from 9V to 15V, and both center-pin positive and center-pin negative polarities are accepted. Note that this is only true for the latest model of the SGI (the one with “Jensen Equipped” labeled on the top of the unit).
