Radial Engineering DiNET DAN-RX - 2-Channel Dante Network Receiver
SKU: R800-1063-00
UPC: 676101044429
Be the first to write a review!
Available - Item in Stock

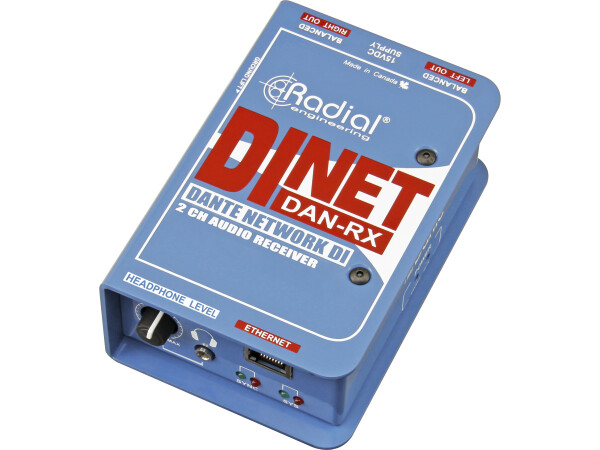

The Radial DiNET DAN-RX is a 2-channel Dante™ endpoint that allows you to easily output balanced audio from a Dante enabled network.
The DAN-RX provides a simple way to take a stereo feed from a Dante network and convert it to analog audio for monitoring in any location. Balanced XLR outputs allow you to connect to professional audio equipment such as a mixing console, amplifier, or a pair of powered speakers. In addition, a local 3.5mm headphone output is equipped with its own level control to test audio before connection to the PA system or to monitor locally with headphones, making it useful in events that use personal monitor systems. The DAN-RX can be powered from an included external supply or any Power over Ethernet (PoE) network switch, and both of these options can be used simultaneously to provide redundancy for critical applications.
Features:

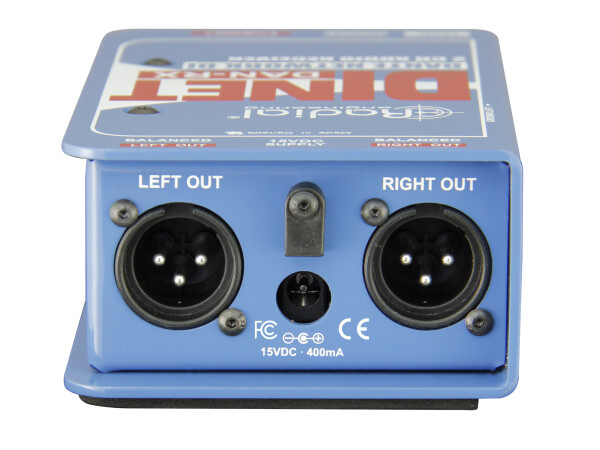

• Balanced Stereo XLR outputs

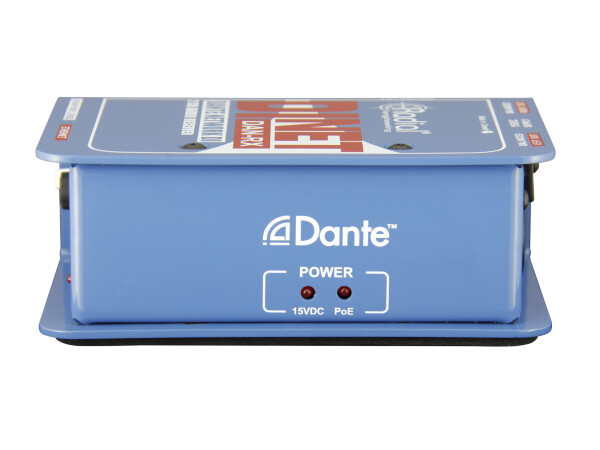

• Powered via external supply or Power over Ethernet (PoE)

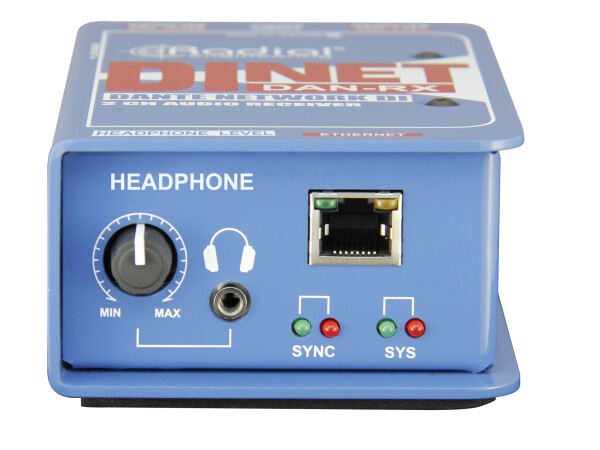

• Headphone output with level control
Applications:

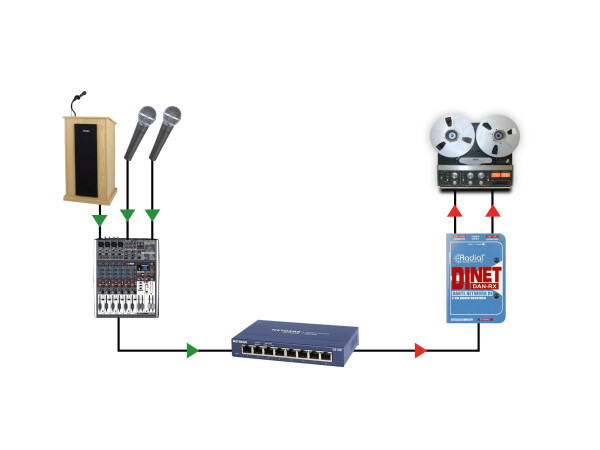

• Route a stereo feed to any location within a venue

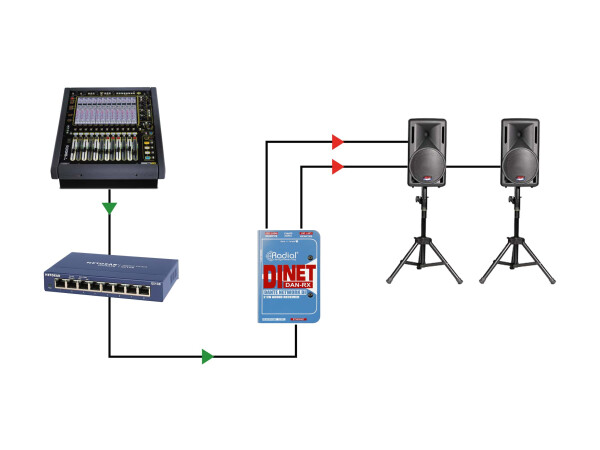

• Connect to a small PA in a separate room

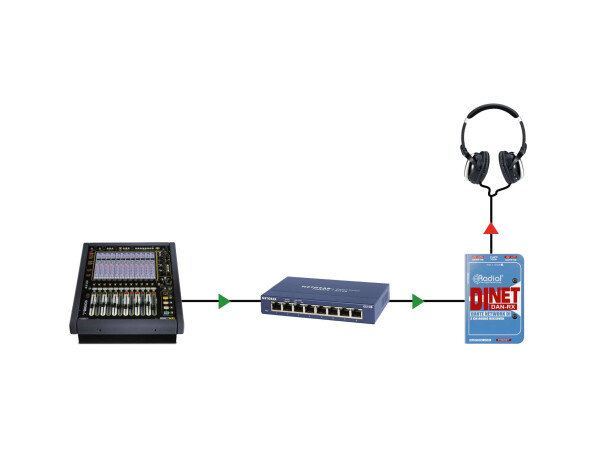

• Use headphones for personal monitoring over Dante
Cool Stuff:
• Outputs can be mic or line level signals
• Ground lift switch to eliminate buzz & hum
• High-quality 24bit/96kHz digital converters
Technical Specification
- Audio circuit type High current balanced active output device
- Number of channels 2
- Frequency response 20Hz - 20kHz
- Dynamic range >100dB
- Gain 8dBu max @ -6dBfs
- Total harmonic distortion 0.007% @ -6dBfs
- Output Impedance 150Ω
- Noise 44.1kHz, 48kHz, 88.2kHz, and 96kHz (24 bit)
- Input Connectors RJ45 Ethernet
- Output Connectors XLR
- Extras 3.5mm headphone for testing
- Construction 14-gauge steel
- Size (L x W x D) 5" x 3.31" x 1.88" (12.7cm x 8.4cm x 4.8cm)
- Weight 1.45lb (0.66kg)
- Shipping size (L x W x D) 11.75" x 4.75" x 3" (29.8cm x 12.1cm x 7.6cm)
- Shipping weight 2.1lb (0.95kg)
- Power 15VDC 400mA (included) or PoE
- Conditions For use in dry locations only between 5°C and 40°C
