Radial Engineering BigShot i/o - True Bypass Instrument Selector
SKU: R800-7212-00
UPC: 676101044269
Be the first to write a review!
Available - Item in Stock

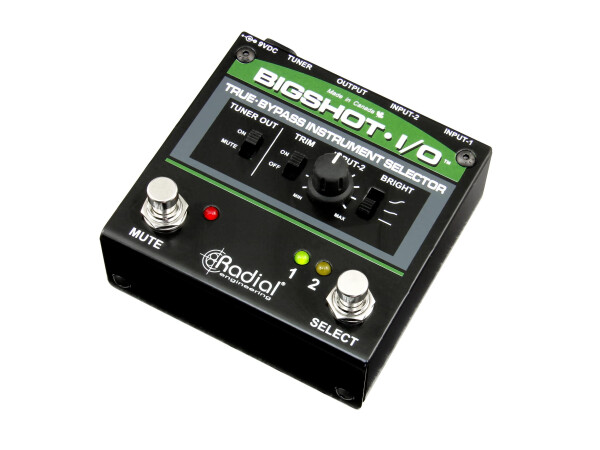

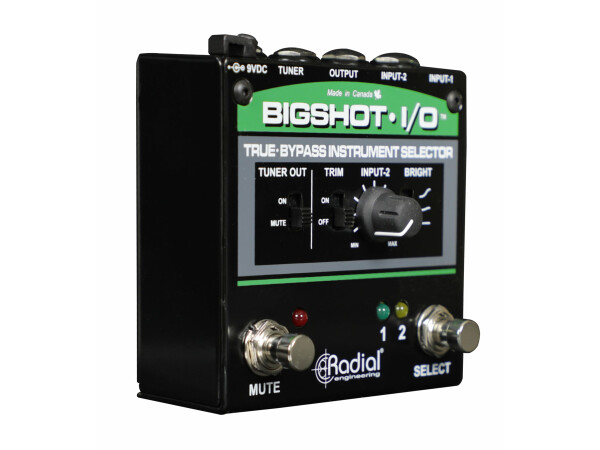

The BigShot i/o is a true-bypass instrument selector that allows you to instantly switch between two instruments whilst feeding them to your amplifier and balancing the levels. The true-bypass feature retains the tone of your instrument whilst the separate tuner and mute footswitch allows for silent tuning. Input 2 has its own volume control in order to reduce the input sensitivity of the instrument to ensure that the levels are matched when played through your amplifier.
The BigShot i/o allows you to switch between instruments on stage without pops through your amp or the need to adjust levels, while featuring 100% true-bypass for the most demanding purist. Input-2 is equipped with a volume control that lets you reduce the input sensitivity of the louder instrument so that the levels are matched when played through your amplifier. When passive instruments are used, a unique three-position Bright switch lets you compensate for instruments that lack shine in the high frequencies. The BigShot i/o is also equipped with a separate tuner output; with a simple foot stomp, the sound going to the amp is muted and diverted to the tuner for quiet on-stage adjustments.
Features:
• Toggle between two instruments with a footswitch
• Separate tuner output with MUTE footswitch
• DIM control for matching instrument levels
• High frequency compensation for passive pickups
• Bright LED status indicators
Applications:

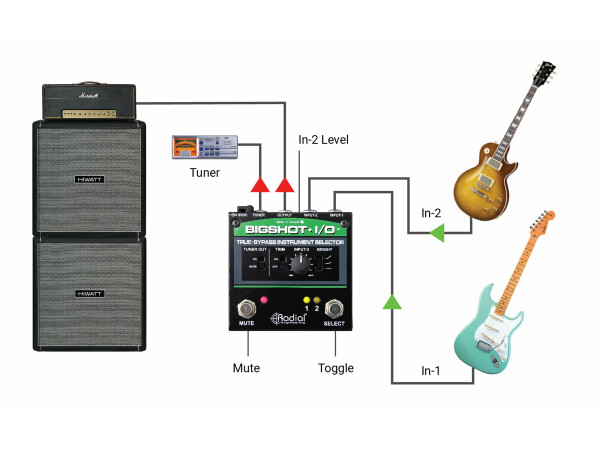

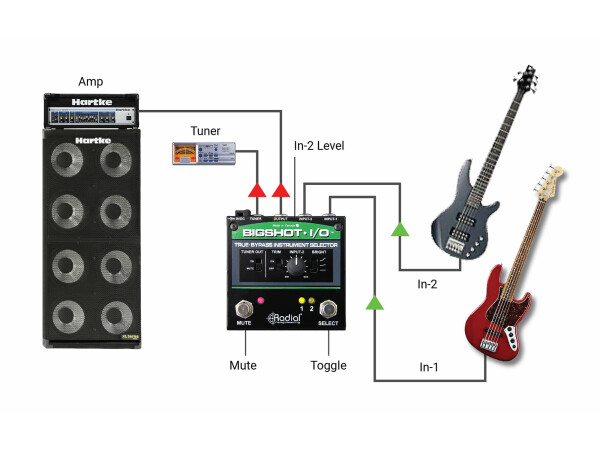

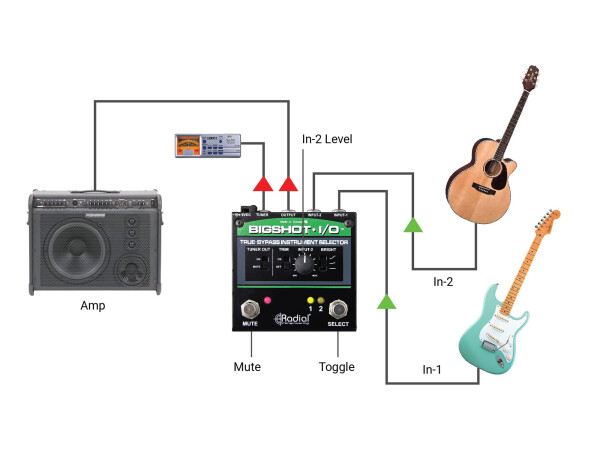

• Quickly switch between instruments on-stage
• Tuner management, silent-tuning or always-on
• A-B switcher using tuner-out and mute switch
Cool Stuff:
• 100% Passive audio circuit
• Compact and rugged, perfect for pedalboards
• Works with all instruments: guitar, bass, keys
Technical Specification
- Audio circuit type Passive, true bypass
- Frequency response 20Hz – 20kHz
- Gain -0.3dB
- Features Dim Switch, Bright Switch

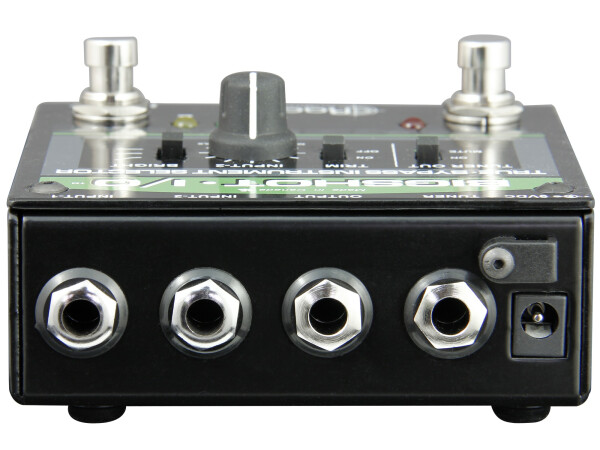

- Input Connectors ¼" jack for first instrument connection Input-2, ¼" jack with dim and bright controls
- Output Connectors ¼" jack is switchable between always-on, or engaged by Mute switch
- Extras Tuner/toggle switch
- Construction 14-gauge steel
- Finish Durable powder coat
- Size (L x W x D) 3.9" x 3.6" x 2" (99 x 91.4 x 50.8mm)
- Weight 1.25 lb (0.56 kg)
- Shipping size (L x W x D) 6.25" x 4.25" x 3" (158.7 x 108 x 76.2mm)
- Shipping weight 1.55 lb (0.70 kg)
- Power 9VDC, center pole negative
- Conditions For use in dry locations only between 5°C and 40°C
- Warranty Radial 3-year, transferable
