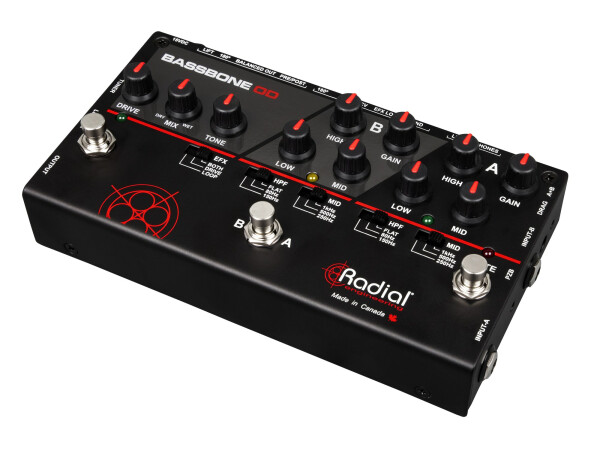

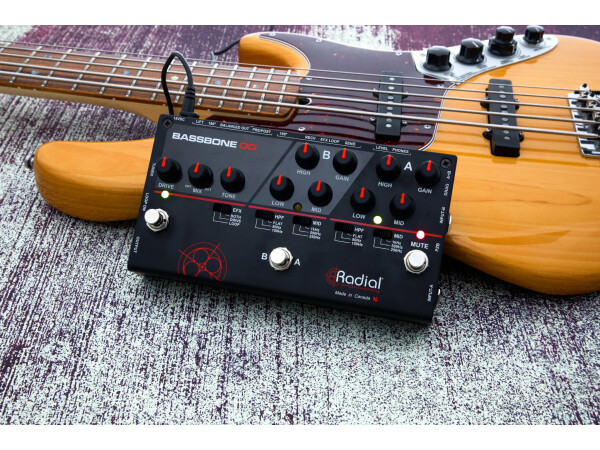

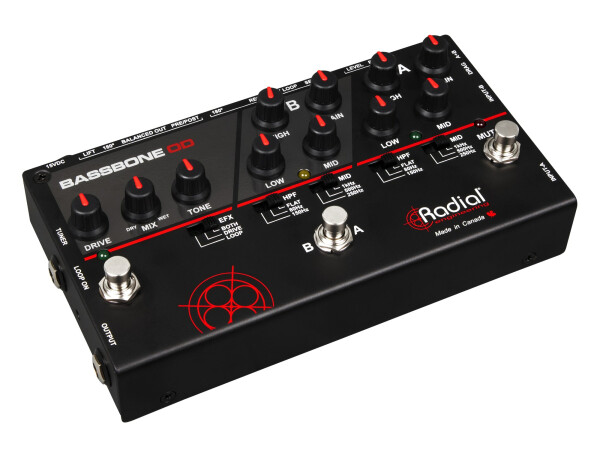

Radial Engineering Bassbone OD - Bass Preamp & Overdrive
SKU: R800-7072-00
UPC: 676101041169
Be the first to write a review!
Available - Item in Stock
The Bassbone OD is a bass preamp that features two fully-equipped input channels, each with separate level and EQ controls and a shared overdrive.

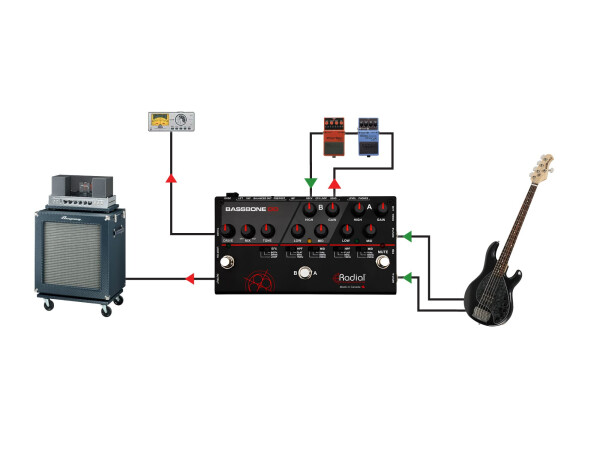

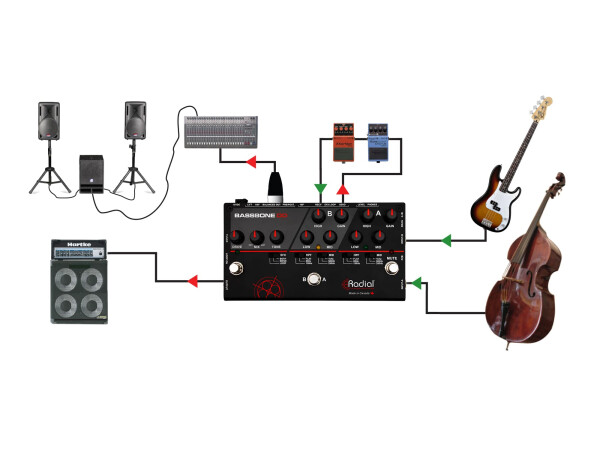

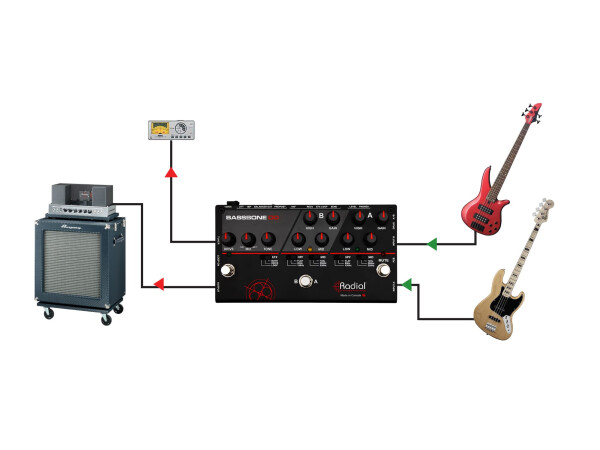

The Bassbone OD allows you to connect two bass guitars and sculpt the tone of each one individually, as each input has its own level and EQ controls. The EQ settings have been specifically tailored for use with basses, and include a high pass filter to roll off excessive low end, along with a selectable center frequency for the Mid EQ boost/cut. Input A features a PZB booster designed for use with upright basses that employ a piezo transducer, while Input B includes a Drag Control impedance correction circuit that adjusts the load presented to magnetic pickups for a more natural tone. Following the input and EQ section, the Bassbone OD allows both instruments to share your effects pedals with an EFX Loop, which then feeds a powerful on-board overdrive.
Features:
• Two full function channels with EQ
• Mute footswitch for quiet on-stage tuning
• Bass overdrive with wet-dry control
• Built-in Radial direct box
Benefits:
• Lets you quickly toggle between two basses
• Balanced out for studio recording or PA
• Headphone amp lets you practice anytime
• Great for active, passive and upright bases
Cool Stuff:
• Use it like a two channel bass amp
• Add overdrive for sustain without being too loud
• Can be used on any instrument, not just bass
• 15V DC supply has tons of headroom
Technical Specification
- Audio circuit type Discrete class-A FET input with low noise ICs.
- Frequency response 20Hz ~ 18kHz
- Dynamic range 85dB
- Gain Unity gain device
- Clip Level +10dBu at XLR
- Total harmonic distortion 0.05% @ -15dBu
- Intermodulation Distortion 0.2% @ -20dBu
- Input Impedance CH-A 220K/10M CH-B Variable from 22K to 1.8M
- Output Impedance 300 Ohms at XLR
- Equivalent Input Noise -92dBu at XLR
- Noise -100dB
- Maximum Input +7 dBu
- Features 180° polarity reverse, Ground lift, HPF, Drag Control, Level Control, Phase Adjustment, Effects Loop, EQ Control, Boost

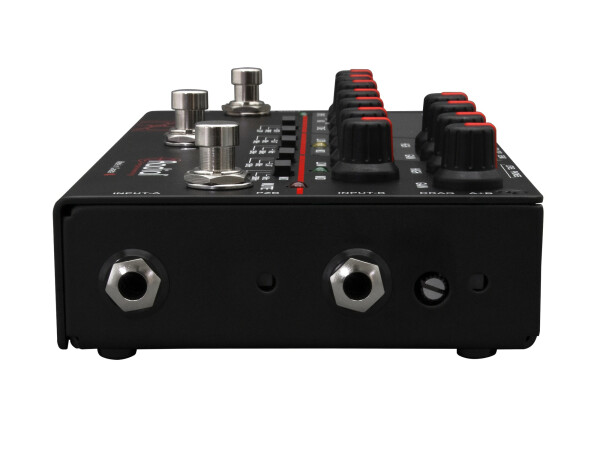

- Input Connectors 1/4"

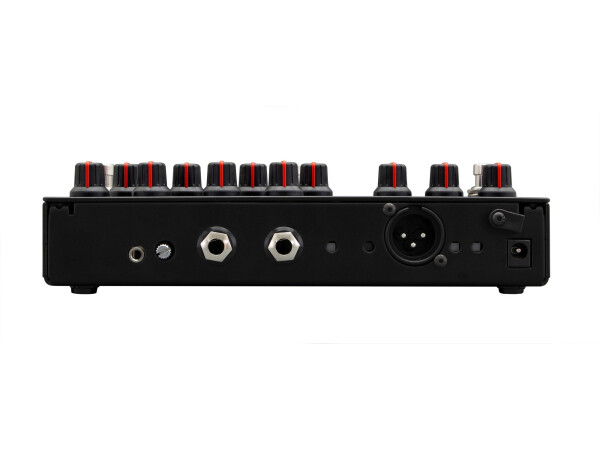

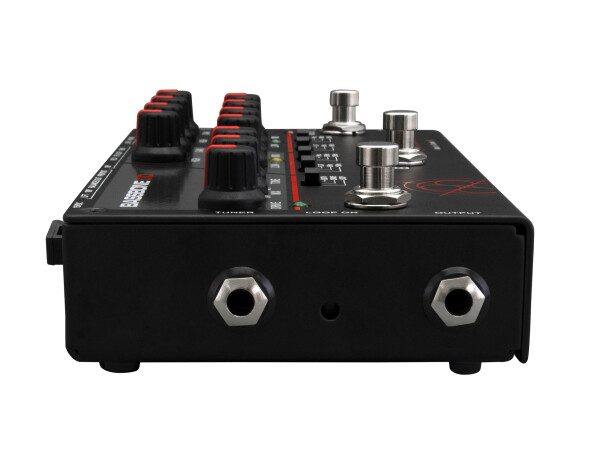

- Output Connectors 1/4", XLR, 3.5mm
- Construction 14-gauge steel
- Size (L x W x D) 8" x 4.2" x 2" (203 x107 x 48mm)
- Weight 2.55lb (1157 grams)
- Shipping size (L x W x D) 10.75" x 5"x 2.75" (273 x 127 x 70mm)
- Shipping weight 2.8lb (1270 grams)
- Power +15VDC/400mA adapter included
- Conditions For use in dry locations only between 5°C and 40°C
- Warranty Radial 3-year, transferable
