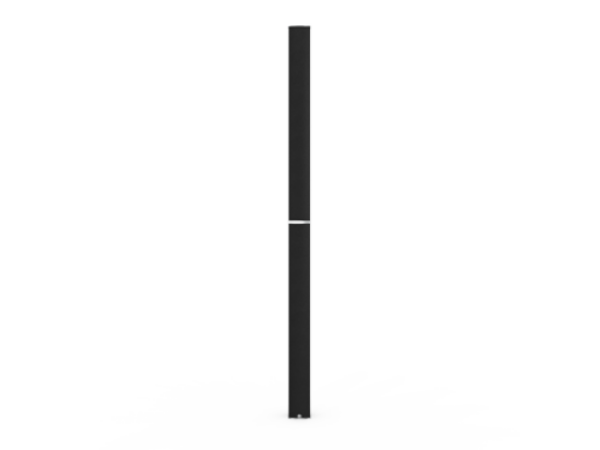

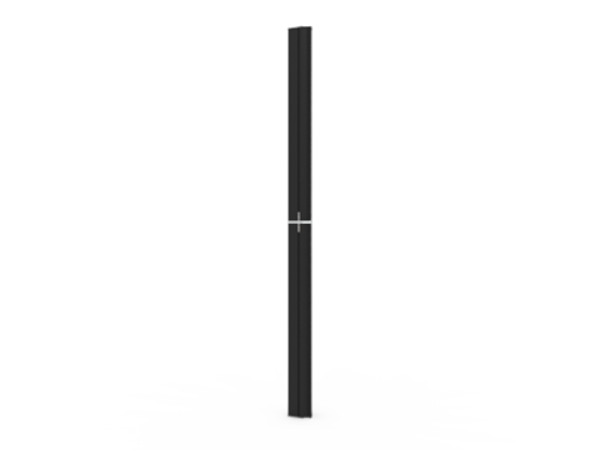

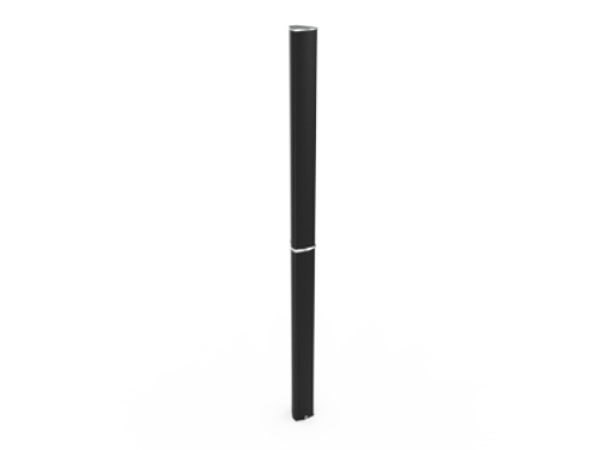

Pan Acoustics PB 16-P2L (dG) Beam Steering Line Array Speaker

The Pan Acoustics PB 16-P2L (dG) is a compact, active, digitally steerable line array loudspeaker engineered for high-performance speech and music reinforcement in acoustically demanding environments. Featuring advanced Beam Steering technology and Pan's innovative 2-Line architecture, the system delivers precise sound coverage while transmitting audio, control data and power over a single two-wire cable infrastructure.

Designed for venues where speech intelligibility is critical, the PB 16-P2L (dG) uses sixteen custom 3.5-inch HQ drivers, dedicated DSP processing and sixteen integrated digital amplifiers. The loudspeaker can generate up to four independently steerable sound beams, allowing installers to optimise coverage, minimise reflections and maintain consistent sound pressure levels throughout the listening area.

A single PB 16-P2L (dG) can cover audience areas of up to 35 metres while maintaining excellent clarity and intelligibility. Integrated DSP control enables real-time adjustment of beam angle, tilt, EQ, delay and volume through PAN Acoustics software and the Pan Net control platform.

Ideal applications include churches, mosques, museums, heritage sites, airports, railway stations, legislative buildings, conference facilities, lecture theatres and presentation spaces.

Key Features
• Digitally steerable line array loudspeaker
• Advanced beam steering technology
• PAN 2-Line audio, power and control transmission
• 16 × custom 3.5" HQ drivers
• Four independently controllable sound beams
• Adjustable vertical coverage from 3° to 40°
• Digital tilt control from -70° to +70°
• Real-time DSP control and optimisation
• Up to 128 dB maximum SPL
• Typical coverage distance up to 35 metres
• Integrated Pan Net monitoring and control
• Made in Germany
