Radial Engineering Voco-Loco - Effects Switcher for Voice or Instruments
SKU: R800-1425-00
UPC: 676101040889
Be the first to write a review!
Available - Item in Stock
The Voco-Loco is a foot-controlled microphone preamp and effects loop switcher that enables a vocalist or acoustic instrumentalist to incorporate guitar effects pedals into their signal path.

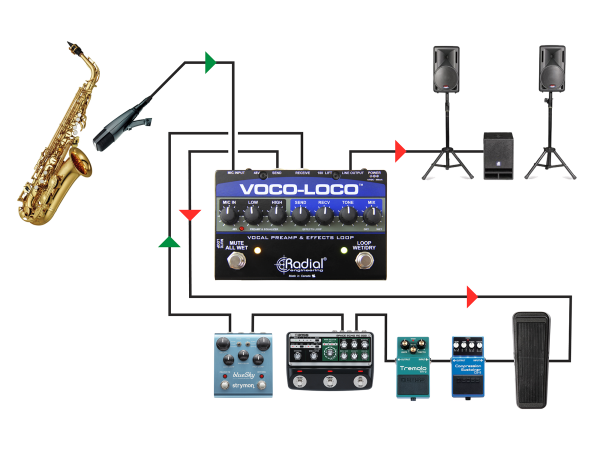

The Voco-Loco combines a microphone preamp with a guitar pedal effects loop, allowing a lead vocalist, sax or trumpet player to add guitar pedals to their audio signal path just like an electric guitarist adds effects for soloing. Simply plug your mic into the Voco-Loco via the XLR input, connect your effects pedals using standard ¼" guitar cables, and then send the output from the Voco-Loco to the input on your mixer. Now with the touch of a footswitch you can add your favorite delay, reverb, distortion or wah-wah to any mic'd up instrument or vocal - the options are only limited by your imagination.
Features:
• Studio quality mic preamp
• Effects send & receive for pedals
• Wet dry mix control to blend effects
• Optimized signal path
Applications:
• Lets you add effects to any microphone
• Great for sax, trumpet and trombone
• Awesome on vocal and harmonica
• Works with dynamic and condenser mics
Cool Stuff:
• Easy to use control panel
• Activate your pedals with one footstomp
• Turns any horn player into Hendrix!
• Get out of trouble mute footswitch
Technical Specification
- Audio circuit type Integrated Op-Amp with Class A FET input circuit
- Frequency response 20Hz ~ 20kHz
- Dynamic range 100dB
- Gain 52dB
- Clip Level +15dBu
- Total harmonic distortion <0.005%
- Intermodulation Distortion <0.005%
- Phase Deviation 8° @50Hz
- Input Impedance 10K-Ohms, 100K (FX Loop)
- Output Impedance 300 Ohms, 3000 Ohms (FX Loop)
- Common Mode Rejection Ratio -73dB @55Hz
- Equivalent Input Noise -120dBu
- Noise -85dBu
- Maximum Input +10dB
- Input pad, 180° polarity reverse, Ground lift, Effects Loop
- Input Connectors XLR-F
- Output Connectors XLR-M
- Construction 14 gauge steel chassis and outer shell
- Power 100mA, center positive
- Conditions For use in dry locations only between 5°C and 40°C
