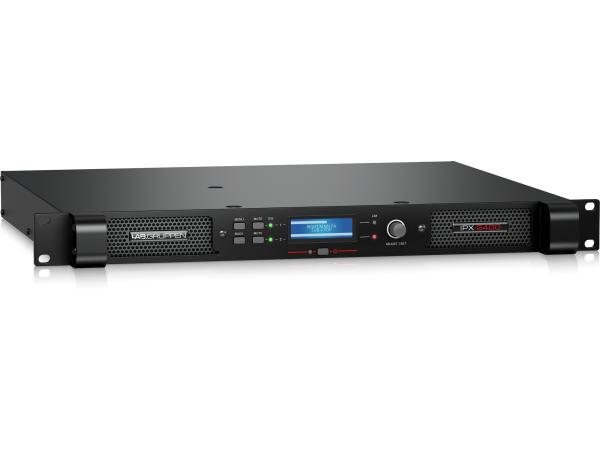

Lab Gruppen IPX 2400 - Compact 2400W 2-Channel DSP Controlled Power AmplifierLab Gruppen IPX 2400 - Compact 2400W 2-Channel DSP Controlled Power Amplifier

SKU: 0107-AAY
EAN: 4033653090537

Be the first to write a review!

Available - Item in Stock

Write a review

£1,687.69

£1,406.41 (Ex VAT)

High power density, competitive cost and power consumption efficiency make the Lab Gruppen IPX 2400 the ideal compact yet powerful amp solution whether it’s for permanent installations, portable corporate AV systems, or live PA setups.

Delivering 2 x 1200 W at 4 ohms, the IPX 2400 packs reliable power and performance into a single rack space. But raw muscle power is not enough. At the heart of the IPX platform, you’ll find a cutting-edge DSP engine equipped with up to 40 real-time, multi-slope parametric EQs along with adjustable gain, input and output delay – and both high- and low-pass filters adjustable to any frequency. This makes the IPX Series akin to a standalone digital audio processor – with the added bonus of 2 powerful and pristine amplifier channels on the side!

With extensive functionality and professional features being married with competitive cost, the IPX Series amplifiers are equally (and perfectly) suited for permanent installations, portable AV systems, or for driving live monitors. In short, wherever performance and reliability cannot be compromised, yet your budget is tight, the IPX Series is a universal solution that sits smack in the middle of the performance/price sweet spot.

Sections

£1,687.69

Technical Specification

  • MAXIMUM OUTPUT POWER
  • 2 Ω per channel, stereo800 W
  • 4 Ω per channel, stereo1200 W
  • 8 Ω per channel, stereo600 W
  • CONTROLS
  • FrontPower switch DSP section rotary push-encoder Buttons for Menu, Back, Mute (per channel)
  • SYSTEM
  • Number of channels2
  • Output voltage100 V peak / 70 Vrms / 39.2 dBu
  • Input sensitivity for maximum output voltage6 dBu
  • Output current20 Arms
  • Output circuit typeClass-D
  • THD+N< 0.1%, 20 Hz - 20 kHz @ 1 W < 0.05% @ 1 kHz, 1 dB below clip
  • Output noise-65 dBu, A-weighted
  • Signal-to-noise> 104 dB
  • Channel crosstalk> 80dB @ 1 kHz
  • Frequency response10 Hz to 20 kHz, +0.5/-1 dB 5 Hz to 40 kHz, -3 dB
  • Common mode rejection (CMR)> 50 dB
  • Gain (all DSP controls set to 0 dB)33 dB
  • INDICATORS
  • PowerRed LED
  • Limit, per channelRed LED
  • Signal / mute, per channelGreen/Red LED
  • DSP
  • DisplayLCD 128 x 32, white backlit
  • Functions40 multi-slope parametric equalizers, Adjustable high- and low-pass filters Input and output delays (up to 2 seconds each) Crossover with multiple filter types
  • PresetsSupport up to 100 presets
  • CONNECTORS
  • Analog inputs2 x XLR
  • Analog input impedance18 kΩ unbalanced, 36 kΩ balanced
  • Maximum analog input level20 dBu
  • Digital inputs1 x XLR (AES3 digital format)
  • Link outputs (analog)2 x XLR
  • Link output (digital)1 x XLR (AES3 digital format)
  • Speaker outputs2 x Neutrik speakON (NLT4) 2 x binding posts
  • Network control1 x RJ45
  • CIRCUIT PROTECTION
  • CoolingContinuously variable speed fan Front-to-back air flow
  • Amplifier protectionThermal and DC protection Stable into reactive or mismatched loads
  • Circuit protectionControlled start and shutdown behaviour, DC-fault protection
  • POWER SUPPLY, VOLTAGE, (BREAKER)
  • Switch-mode autorange power supply100-240 V~ 50/60 Hz
  • Power consumption @ 1/8 rated power500 W
  • Standby consumption< 7 W
  • Mains connectionStandard IEC receptable
  • PHYSICAL
  • Dimension (H x W x D)44 x 483 x 423 mm (1.7 x 19.0 x 16.7")
  • Weight7.0 kg (15.4 lbs)
